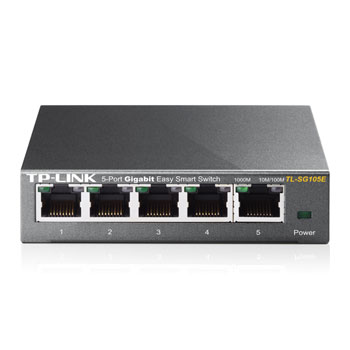

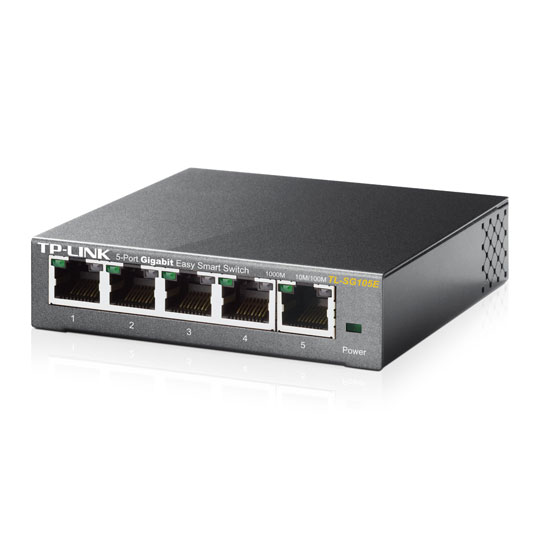

TP-LINK SG105E 5 Port Gigabit Easy Smart Switch
5 Port TP-LINK TL-SG105E, Gigabit EasySmart Network Switch, 10/100/1000Mbps, Managed for Small/Medium Business Networks
Simple & Effective Management
TP-LINK’s Gigabit Easy Smart switch, TL-SG105E offers network monitoring for users to observe traffic behavior. With Port Mirroring, Loop Prevention and Cable Diagnostics features, TL-SG105E can identify and even locate connection problems on your business network. Moreover, administrators can designate the priority of the traffic based on Port Priority and 802.1P Priority, to ensure that voice and video are always clear, smooth and lag-free. Additionally, to improve security and network performance, TL-SG105E supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions. TL-SG105E is an upgrade from the plug-and-play Unmanaged Switch, delivering great value while empowering your network and similarly delivering great value to the end user.
Go Green with Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation of TL-SG105E 5-Port Gigabit Easy Smart Switch features the latest energy-efficient technologies that can greatly expand your network’s capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
Power down Idle Ports
When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG105E can automatically detect the link status of each port and reduce the power consumption of ports that are idle.
Power Budget According to Cable Length
Ideally, shorter cables would use less power with less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of whether it is 10 or 50 meters in length. The TL-SG105E analyzes the length of the Ethernet cable connected and adjusts the power usage accordingly, rather than keeping the power consumption in a conventional solution.
Ease of Use
TL-SG105E is easy to use and manage. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Its compact size makes it ideal for desktops with limited space while also being Rack-mountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.
More information can be found in the PDF below:
Features • 5 x 10/100/1000Mbps ports provide instant large file transfers
• Innovative energy-efficient technology reduces power consumption by up to 75%
• IEEE 802.3x flow control provides reliable data transfers
• 16K Jumbo frame improves performance of large data transfers
• Effective network monitoring via Port Mirroring, Loop Prevention and Cable Diagnostics
• Port and tag-based QoS enable smooth latency-sensitive traffic
• Abundant VLAN features improve network security via traffic segmentation
• IGMP Snooping optimizes multicast applications
• Centrally manage all Easy Smart Switches with Easy Smart Configuration Utility
|Total Network Ports||5 x Gigabit 10/100/1000|
|PoE Support Type|
|No. of Ports Providing PoE|
|Other Non-Network Ports|
|MAC Address Table Size|
|Built-in Flash Memory||2MB|
|Max. Power Consumption|
|Max. PoE Wattage per Port|
|Mean Time Between Failures (MTBF)|
|Dimensions (WxHxD)||100 x 25 x 98 mm|
