Scan code: LN98151 Manufacturer code: TL-SG1005P

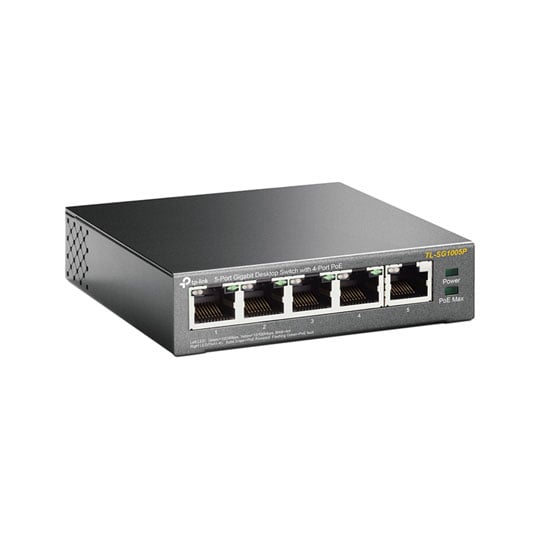

TP-LINK 5 Port Gigabit Desktop Switch with 4-Port PoE

5-Port TP-LINK TL-SG1005P Gigabit Desktop Switch, 10/100/1000, 4-Port PoE

Thumbnail 1 : TP-LINK 5 Port Gigabit Desktop Switch with 4-Port PoE Thumbnail 2 : TP-LINK 5 Port Gigabit Desktop Switch with 4-Port PoE Thumbnail 3 : TP-LINK 5 Port Gigabit Desktop Switch with 4-Port PoE Thumbnail 4 : TP-LINK 5 Port Gigabit Desktop Switch with 4-Port PoE
Scan code: LN98151 Manufacturer code: TL-SG1005P
£48.28
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 28th May 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview TL-SG1005P is a 5 10/100/1000Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).

Overload Arrangement
TL-SG1005P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 56W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.

Port Priority Function
Priority (Port 1=Port 2=Port 3>Port 4): This function will help to ensure the normal operation of the system, it means Port 4 will be cut off when all total PoE PDs power consumption exceed 56W. For an example, Port 1, 2 and 4 is using 15.4W (maximum power for per port is 15.4W); the system power is 46.2W in total. If there is an additional PD inserted to Port 3 with 10W, and then the system will cut off the power of Port 4 because of the overloaded power, this means Port 1, 2 will use 15.4W, and Port3 will use 10W, no power will be supplied to Port 4.

Easy To Use
TL-SG1005P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-Link’s TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE is an ideal choice for expanding your home or office network. Features • 5 10/100/1000Mbps RJ45 ports
• With four PoE ports, transfers data and power on one single cable
• Working with IEEE 802.3af compliant PDs, expands home and office network
• 802.1p/DSCP QoS enable smooth latency-sensitive traffic
• Supports PoE Power up to 15.4W for each PoE port
• Supports PoE Power up to 56W for all PoE ports
• Requires no configuration and installation
Specifications
Edition Unmanaged Switch
Form Factor
Total Network Ports 5 x 10/100/1000 (Gigabit) RJ-45
PoE Support Type
No. of Ports Providing PoE 4 x 10/100/1000 (Gigabit) RJ-45
Other Non-Network Ports
Switching Capacity
Non-Blocking Throughput
Forwarding Rate
MAC Address Table Size 2k Entries
Network Capacity
Built-in Flash Memory
RAM Memory
Network Protocols IEEE 802.3af
Acoustic Noise
Max. Power Consumption 63.31 W
Max. PoE Wattage per Port
Mean Time Between Failures (MTBF)
Power Supply External Power Supply (Included)
Material ABS / SPCC
Includes
Dimensions (WxHxD) 99.8 x 25 x 98 mm
Weight
Additional Information
Scan Code LN98151
Model Number TL-SG1005P
GTIN 6935364083229
