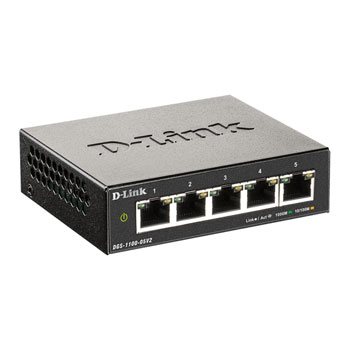

D-Link DGS-1100-05V2/B 5 Port Gigabit Smart Managed Switch
5 Port D-Link DGS-1100-05V2/B Gigabit Smart Managed Switch, 5 x 10/100/1000 Ports, Web UI, Green Technology, Fanless
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.
Simple. Easy. Smart.
DGS-1100 Smart Switch Series provides an affordable solution for environments that require simple network management.
Advanced Security Features
The DGS-1100's web user interface is an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), link aggregation (static). With powerful security features like IGMP snooping, Static MAC, and Storm Control, the DGS-1100 Smart family is a versatile solution for environments that require easy to deploy and easy to configure solutions without added complexities.
Simplify Network Management
D-Link’s free Network Assistant (DNA) displays all connected devices and speeds up the first time configuration. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools. Optional upgrade licenses allow you to broaden your network and analysis.
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.
Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognise the cable type, and detect cable errors.
D-Link Green technology enables the DGS-1100 Smart series to save power without sacrifices. The majority of the family utilises a fanless design, for silent and energy efficient operation. All are IEEE 802.3az compliant and feature Link Status detection.
• 5 x 10/100/1000BASE-T ports
• Compact design for convenient placement
• Fanless design for silent operation
• Innovative D-Link Green energy saving features
• Complete web interface for comprehensive switch management
|Edition||Smart Managed Switch|
|Total Network Ports||5 x 10/100/1000 (Gigabit) RJ-45|
|PoE Support Type|
|No. of Ports Providing PoE|
|Other Non-Network Ports|
|Switching Capacity||10 Gbps|
|Forwarding Rate||7.4 Mpps|
|MAC Address Table Size||2k Entries|
|Built-in Flash Memory|
|Acoustic Noise||0 dB|
|Max. Power Consumption||3.42 W|
|Max. PoE Wattage per Port|
|Mean Time Between Failures (MTBF)||1,562,055 hours|
|Power Supply||External Power Supply (Included)|
|Dimensions (WxHxD)||100.5 x 28 x 82 mm|
