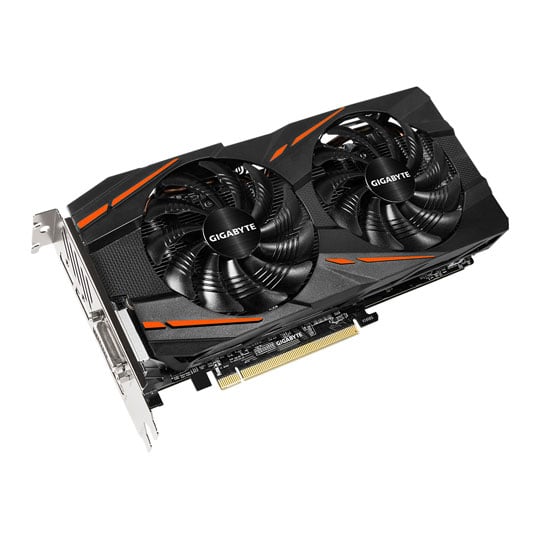

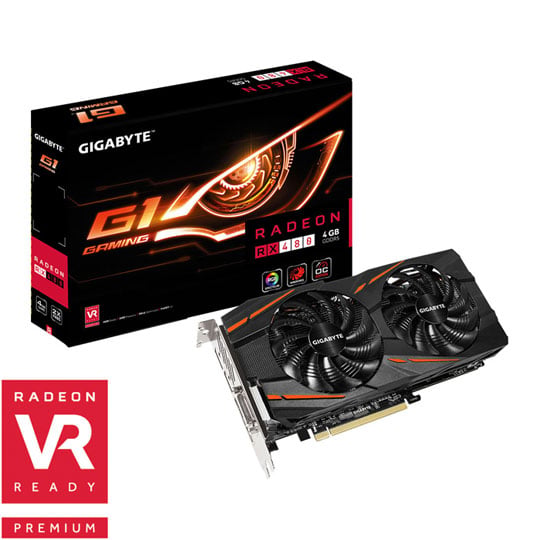

Gigabyte 4GB G1 GAMING RX480 AMD Graphics Card with WINDFORCE 2X
4GB Gigabyte Radeon RX 480 G1 GAMING, 14nm Polaris, PCIe 3.0, 7000MHz GDDR5, 1290MHz GPU, 2304 Streams, 3xDP/HDMI/DVI-D
GIGABYTE G1 GAMING - Radeon RX 480 - AMD GPU
GIGABYTE RX 480 G1 Gaming Graphics Card
Crafted for perfection this Radeon RX 480 comes as part of GIGABYTE’s G1 GAMING series graphic cards. Built in the pursuit of the ultimate graphic experience and aimed toward gaming enthusiasts this RX 480 comes ready to dominate your games. It boasts great speeds and comes armoured with GIGABYTE’s enhanced cooling system, ensuring a smooth and enjoyable process even on those long gaming sessions!
WINDFORCE GPU COOLING SYSTEM
Advanced RX 480 Cooling
The WINDFORCE 2X cooling system is the outcome of both clever and efficient design. Built into the G1 GAMING RX 480 graphics card, it features 3 pure copper composite heat-pipes, heat-pipe direct touch GPU, 90mm unique blade fan design, 3D active fan with LED indicators, stylish metal back plate, together delivering an effective heat dissipation capacity for a higher performing GIGABYTE Radeon RX 480 at lower temperatures.
*Image for representation of technology only, actual cooling system will vary by model.
INTELLIGENT GRAPHICS CARD FANS
GIGABYTE 480 Unique Fan Blades
The RX 480 airflow is spilt by it’s triangle fan edge, which is then guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the GIGABYTE GAMING X 480 airflow by 23% over traditional fans.
DIRECT TOUCH GPU COOLING
Heat Pipes Help With Cooling the GPU
The G1 GAMING 480 features Direct Touch technology. This tech as seen above utilizes heat pipes made of pure copper and are shaped to maximize the direct contact area to the RX 480's GPU so they can carry generated heat away from your GPU. This keeps your gaming and media going for longer and displaying as smooth as can be.
Image for representation of technology only, actual Direct Touch will vary by model
RX 480 GPU COPPER PIPES
Composite Heat-Pipes Embedded 480
Through a combination of thermal conductivity and phase transition the Gaming Radeon RX 480 efficiently manages the transfer of heat between two solid interfaces - which increases 29% of cooling capacity.
USEFUL AND STYLISH GPU LED
Added Style of the RX 480 Card
When it comes to the LEDs featured on the G1 GAMING they are there for both style and convenience. Firstly, the GIGABYTE logo will simply make your graphics card and PC case (through ambient lighting) look that bit more suave and will follow whatever animation/colour instructions you have set it. Also, the ‘Fan Stop’ LED will provide the G1 GAMING 480's fan status at a glance by responding differently when the power supply is altered.
*Image for representation of technology only.
GIGABYTE GPU METAL BACKPLATE
Protecting 480 Graphic Cards in Style

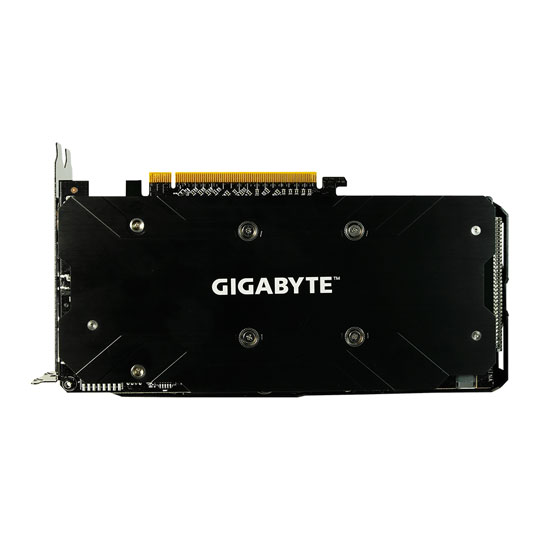

Enjoy stylish design on both the top and bottom of the GIGABYTE G1 GAMING 480. This graphics card features a stylish metal backplate; coloured black it offers rigidity and protection of the structure whilst adding a sleek, clean look to the card.
GIGABYTE GPU XTREME ENGINE
Complete Control of 480 and Features
Features on the RX 480 GIGABYTE’s Xtreme Engine allows you to adjust clock speeds, voltage, fan performance, RGB lighting effect and power target. The OSD setting can be monitored and tuned in real-time according to your own preference through this intuitive interface.
|Chipset||Radeon RX 480|
|Manufacturing Process||14 nm|
|Core Clock||1290 MHz|
|Memory Speed (Effective with DDR)||7000 MHz|
|Memory Data Rate|
|Memory Bus||256 Bit|
|Cooling Solution||Dual Fan (2)|
|Cooler Design||WINDFORCE 2X|
|Interface||PCIe 3.0 (x16)|
|Maximum Digital Resolution||7680x4320|
|Maximum Analog (VGA) Resolution||N/A|
|Max. Concurrent Displays||5 Displays|
|AMD CrossFire Support||2-Way CrossFire|
|AMD Freesync Support||Yes|
|AMD FreeSync Version|
|Microsoft DirectX Support||12 API|
|Low Profile Support||N/A|
|Graphics Card TDP/Power|
|Graphics Card Power Connectors||1 x 8-pin PCIe|
|Minimum Recommended PSU||500 W|
|Maximum GPU Temperature|
|Dimensions||116 x 40 x 232 mm|
