Scan code: LN93388 Manufacturer code: CSSD-F480GBMP510

CORSAIR MP510 480GB Performance PCIe M.2 NVMe SSD

480GB Corsair MP510, M.2 (2280) PCIe 3.0 (x4) NVMe 1.3 SSD,3480MB/s Read,2000MB/s Write, 360k/ 440k IOPS

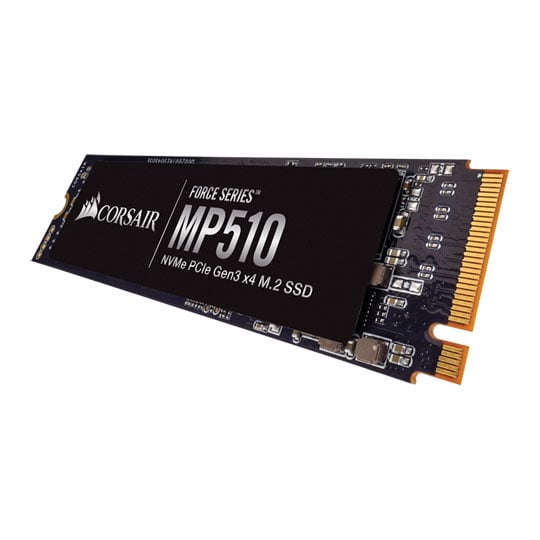

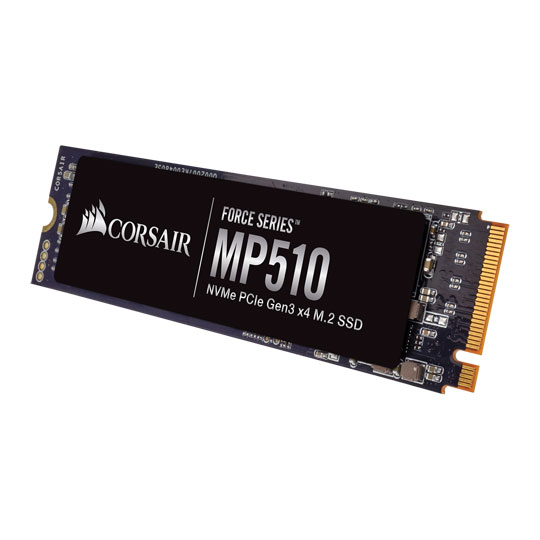

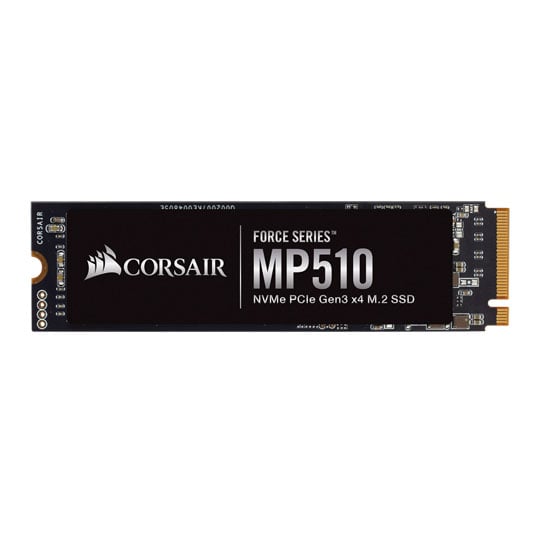

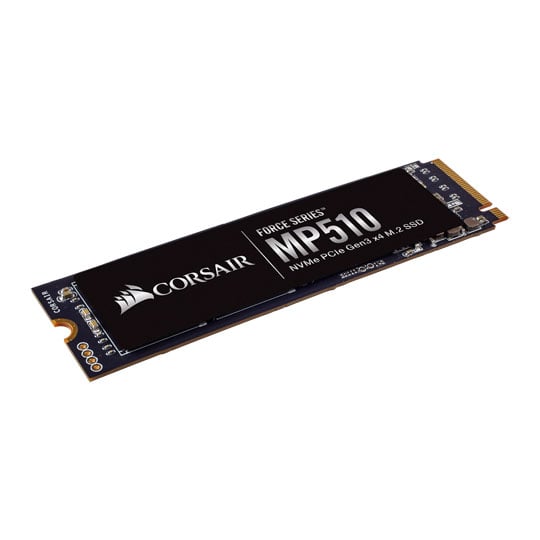

Thumbnail 1 : CORSAIR MP510 480GB Performance PCIe M.2 NVMe SSD Thumbnail 2 : CORSAIR MP510 480GB Performance PCIe M.2 NVMe SSD Thumbnail 3 : CORSAIR MP510 480GB Performance PCIe M.2 NVMe SSD Thumbnail 4 : CORSAIR MP510 480GB Performance PCIe M.2 NVMe SSD
Scan code: LN93388 Manufacturer code: CSSD-F480GBMP510
£77.99
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 17th Oct 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together

480GB CORSAIR Force Series MP510 Solid State Drive

MP510 480GB SSD

Extreme storage performance

The CORSAIR Force Series™ MP510 is a premium SDD that combines the latest 3D TLC NAND technologies to provide an incredible performance. This drive in particular has a storage capacity of 480GB, with ultra-fast read and write speeds, which deliver fast system boot times and less load times. With the amazing performance you can guarantee long-term reliability with a 5 Year CORSAIR warranty and with the SSD Toolbox Software you get access to advanced drive controls from your desktop, including secure erase and firmware updates. Whether you’re playing games, editing images or creating videos, it’s time to upgrade to NVMe if you want to go faster.

480GB

M.2
22x80

PCIe 3.0
NVMe

3480MB/s
Sequential Read

2000MB/s
Sequential Write

360K IOPS
Random Read

440K IOPS
Random Write

Exceptional Transfer Speed and Plenty of Capacity

The CORSAIR Force Series™ MP510 SSDs deliver high performance, quick system boot ups, blazing fast transfer speeds and ultimate reliability in a compact form factor.

Other Solid State Drives in the Corsair MP510 range:

240GB 960GB 1.9TB

Extreme Storage Performance

performance

Superior Performance and Endurance

The CORSAIR Force MP510 is the all-new extreme data performance controller delivering up to 3,480MB/sec sequential read, and up to 3,000MB/s sequential write, for blazing fast read, write and response times.

High-Density 3D TLC NAND

3D TLC NAND

Superior Performance & Endurance

The MP510 SSD is perfect for laptops or small form factor desktop PCs, the latest NAND technology allows the MP510 to perform exceptionally. Offering users the ideal mix of performance, endurance and value to keep your drive performing at its best for years.

Compact. Simple Connection. Performance.

m2

M.2 Form FactorUltra-compact M.2 (2280) size fits directly into your notebook or motherboard with no additional cables or connectors.

nvme

High Speed NVMeFor simple connection and maximum bandwidth, high-speed NVMe PCIe Gen 3 x4 M.2 Interface.

warranty

5 Year WarrantyComprehensive 5-Year Corsair warranty, long-term reliability and industry-leading customer support for peace of mind.

Specifications
Capacity 480GB
Edition MP510
Form Factor M.2 (2280)
Height 3 mm
Interface PCIe 3.0 (x4)
Host Controller Interface NVMe 1.3
Controller
Flash Memory Type None
Max. Read 3480 MB/s
Max. Write 2000 MB/s
DRAM Cache Memory N/A
DRAM Cache Memory Type
Max. Random Read 4K 360k IOPS
Max. Random Write 4K 440k IOPS
Latency N/A
Special Features
  • Bad Block Management
  • Dynamic Wear-Leveling
  • Garbage Collection
  • Static Wear-Leveling
  • TRIM Support
Power Consumption (active) 6.7W
Max. Endurance Rating 800 TBW
MTBF 1,800,000 Hours
Max. Operating Vibration 20 Hz~80 Hz/1,52 mm
Max. Non-operating Vibration 20 Hz~80 Hz/1,52 mm,
Max. Operating Shock 1500G
Max. Non-operating Shock 1500G
Connectivity 1 x M.2 (PCIe)
OS Support
Bracket N/A
Dimensions 80mm x 22mm x 3mm mm (WxHxD)
Weight 0.0082 g
Package Type Retail
Additional Information
Scan Code LN93388
Model Number CSSD-F480GBMP510
GTIN 843591024341
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
60 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
60 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
Loading Please Wait

Please wait . . .

TekSpek Guides
SSD Form Factors
SSD Form Factors
Date Issued: 27th Nov 2017

The arrival of the solid-state drive (SSD) has revolutionised the speed at which modern PCs perform common tasks. This is because SSDs have no moving parts, compared to larger, bulkier mechanical drives, thus they store information on memory chips. This means that accesses, reads and writes are many, many times faster

Read More

SSDs
SSDs
Date Issued: 7th May 2010

Solid-state drives (SSDs) are fast becoming the must-have PC components of 2010. Serving as primary storage space for high-end computers, SSD's super-fast transfer rates and near-instant accesses offer genuine advantages over traditional spindle-based magnetic drives.

Read More

PCI Express
PCI Express
Date Issued: 20th Oct 2008

A motherboard’s main job is to act as a conduit between the various hardware elements that make up a PC. It needs to be able to link the desired CPU(s), system memory, graphics card, hard drive(s), and add-in cards and enable them to work in harmony.

Read More

Reviews
480GB Corsair MP510, M.2 (2280) PCIe 3.0 (x4) NVMe 1.3 SSD,3480MB/s Read,2000MB/s Write, 360k/ 440k IOPS is rated 5.0 out of 5 by 2.
Rated 5 out of 5 by from Fast and good value Great little NVME drive, super quick, same speed as Samsungs 970 for half the price.
Date published: 2019-05-12
Rated 5 out of 5 by from Very good SSD I bought this for my laptop as it only had a normal HDD (was struggling a lot). Now it works very fast, huge difference!
Date published: 2019-04-16
