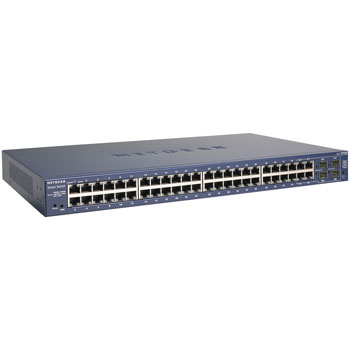

Netgear 48 Port ProSafe Gigabit Smart Switch with 4 Fibre Module Slots

Product Overview High Port Density Gigabit with Browser-based Management Included
Joining NETGEAR's family of Smart Switches with simple switch management at no extra cost, this 1U high, 48-port Gigabit switch maximizes bandwidth and density for great value and capability.

With 48 10/100/1000 Mbps ports, each capable of powering 2000 Mbps of data throughput in full-duplex mode, plus four optional fiber ports, it provides a 40 Gbps backbone and connects servers or power users, delivering large amounts of multimedia, image, and video information in no time at all. Standards-based, it is ideal for combining 10, 100, and 1000 Mbps devices, as it delivers automatic speed and full/half-duplex sensing plus Auto Uplink™ on every port.

Four hot-swappable Small Form-factor Pluggable (SFP)** GBIC slots provide optional fiber connectivity for greater distance. An intuitive, web-browser interface offers simple switch management, making it a snap to monitor switch performance, configure ports, even set up trunks, VLANs, and prioritization.

High Density
48 10/100/1000 ports deliver full-speed packet forwarding in a 1U size to migrate your network to future-proof functionality. Four SFP GBIC fiber slots provide optional fiber connectivity for greater distance.

Intelligent
Smart Switch capability enables key management features for the value price of an unmanaged switch. Included are performance monitoring, port configuration, VLAN for traffic control, port trunking for increased bandwidth, and Class of Service (CoS) for traffic prioritization.

Right Sized
Ideal for growing businesses who want the benefits of management without the cost. Compatible with Windows, MAC and Linux operating systems.***

Easygoing and Durable
Simple to set up and simple to use for effortless network monitoring and troubleshooting. Made to last, this sturdy switch is housed in a 17-inch metal box and comes with a rack mounting kit.

**Use with NETGEAR ProSafe AGM731F 1000BASE-SX SFP GBIC module, ProSafeAGM732F 1000BASE-LX SFP GBIC module or ProSafe AGM733 1000BASE-ZX SFP GBIC.
*** Requires PC for initial discovery of Smart Switch features.
Features Network Protocol and Standards Compatibility
· IEEE 802.3 10BASE-T Ethernet
· IEEE 802.3u 100BASE-TX Fast Ethernet
· IEEE 802.3ab 1000BASE-T Gigabit Ethernet
· IEEE 802.3x full-duplex flow control

Interfaces
· 48 RJ-45 connectors for 10BASE-T, 100BASE-TX, and 1000BASE-T (Auto Uplink on all ports)
· 4 SFP slots for fiber Gigabit Ethernet modules

Administrative Switch Management
· IEEE 802.1Q Tag VLAN (up to 64 Static VLAN groups)
· Port-based VLAN (up to 48 groups)
· IEEE 802.1p (Class of Service)
· Port-based QoS (options High/Normal)
· Port Trunking - Manual as per IEEE802.3ad Link Aggregation
· DHCP client function
· Port setting
· Web-based configuration, anywhere on the network
· - Smart Wizard Discovery Utility program auto discovers devices (up to 254 agents/switches); set system configuration to each agent
· Configuration Backup/Restore (easy to configure more than one switch)
· Password access control and Restricted IP Access List
· Firmware upgradeable

Active Flow Control
· Half-duplex back-pressure control
· Full-duplex IEEE 802.3x pause frame flow control

Performance Specifications
· Forwarding modes: Store-and-forward
· Bandwidth: 40 Gbps
· Network latency: Less than 20 µs for 64-byte frames in store-and-forward mode for100 Mbps to 100 Mbps transmission
· Buffer memory: 1,632 KB embedded memory per unit
· Address database size: 16,000 media access control (MAC) addresses per system
· Addressing: 48-bit MAC address
· Mean Time Between Failure (MTBF): 69,930 hours (~8 years)

LEDs
· Unit: power
· Per port: link, activity, speed

Power Supply
· Power Consumption: 70 W maximum
· 100-240VAC/50-60 Hz universal input

Physical Specifications
· Dimensions (H x W x D): 1.7 x 17.3 x 10.25 in. (43 x 440 x 260 mm)
· Weight: 8.8 lbs (4.0 kg)

Environmental Specifications
· Operating temperature: 32 to 104°F (0 to 40° C)
· Storage temperature: 14 to 158°F (-10 to 70°C)
· Operating humidity: 90% maximum relative humidity, non-condensing
· Storage humidity: 95% maximum relative humidity, non-condensing
· Operating altitude: 10,000 ft (3,000 m) maximum
· Storage altitude: 10,000 ft (3,000 m) maximum

Electromagnetic Compliance
· CE mark, commercial
· FCC Part 15 Class A
· VCCI Class A
· EN 55022 (CISPR 22), Class A
· EN 50082-1
· EN 55024
· C-Tick

Safety Agency Approvals
· UL listed (UL 1950)/cUL
· IEC950/EN60950

Warranty
· NETGEAR 5-year warranty

Package Contents
· 48-port Gigabit Smart Switch GS748T
· Rubber footpads
· Power cord
· Rack-mount kit
· Smart Switch Resource CD
· Smart Switch Installation guide
· Warranty/Support information card
