StarTech.com 4 Port USB 3.0 Card Adapter

4 Port StarTech.com Quad Bus PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter with UASP - SATA/LP4 Power

StarTech.com
Scan code: LN64701 Manufacturer code: PEXUSB3S44V Request call
£87.98Item currently awaiting an ETA
Pre order
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More

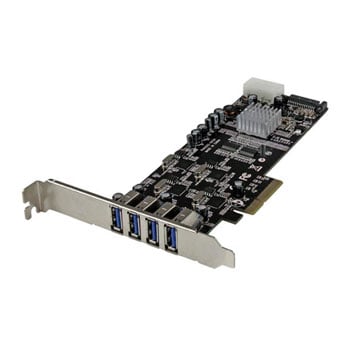

Product Overview The PEXUSB3S44V 4-Port PCI Express USB 3.0 Card lets you add four, dedicated 5 Gbps USB 3.0 ports to your PCIe x4-enabled PC. This independent port architecture improves USB 3.0 performance by transferring data on four individual channels to your computer, giving you faster file transfers.
When multiple devices are connected, traditional single bus USB 3.0 cards share your maximum bandwidth between all ports. By employing four host controller chipsets, each port operates on a separate independent transmission channel. Dedicating up to 5 Gbps to each USB port reduces performance bottlenecks, and effectively quadruples your total available to bandwidth to 20 Gbps.
Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.0 controller performs up to 70% faster than conventional USB 3.0 when paired with a UASP supported enclosure (Note: UASP requires a compatible operating system). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details.

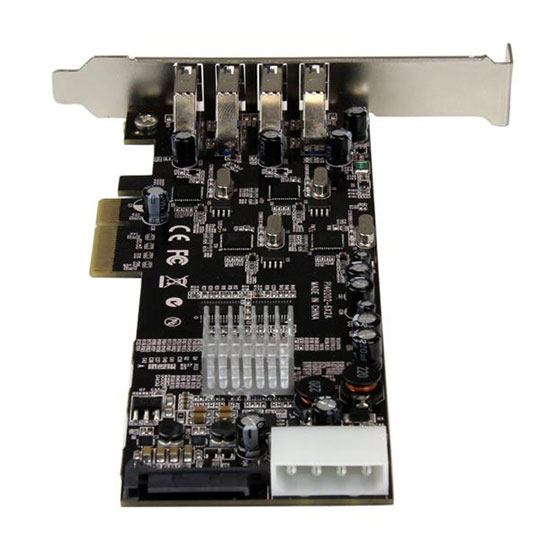

For high-power USB devices, this PCIe USB 3.0 card includes an optional SATA or LP4 power connector to connect to your system power supply and deliver up to 900mA of power per port to USB 3.0 bus-powered devices (500mA for USB 2.0). The USB 3.0 card also supports USB Battery Charging Specification 1.2 (Apple Mode only), letting you charge compatible Apple devices (iPhones and iPads) faster than a standard USB 3.0 port.

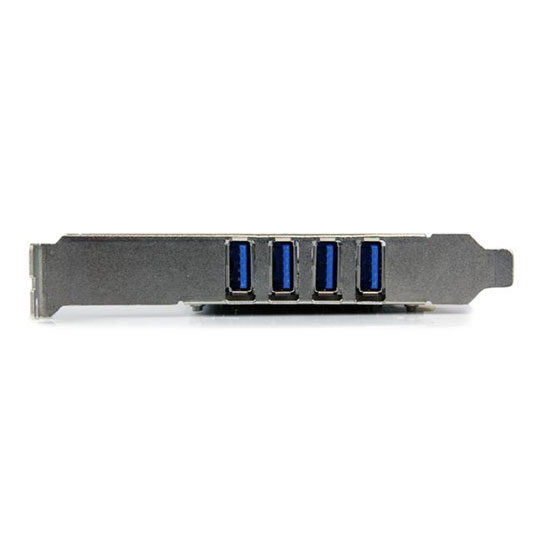

The controller card is compliant with USB 3.0 standards while offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the USB 3.0 PCIe card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Features • Provides four external, independent USB 3.0 Ports
• Supports up to 20 Gbps total transfer bandwidth - Up to 5 Gbps per port
• UASP support across all four ports
• PCIe x4 interface compliant with PCI Express 2.0 specifications
• Supports USB Battery Charging Specification 1.2 (Apple Mode only)
• Fully compliant with USB 3.0 rev 1.0 and Intel xHCI rev 1.0 specifications
• Backward compatible with USB 2.0 and USB 1.0/1.1 devices
• Includes a Low Profile/half-height installation bracket
• Hot-swap feature to connect/disconnect devices without powering down the system

Connector(s)
Connector Type(s)PCI Express x4 Male
External PortsUSB 3.0 A (9 pin; SuperSpeed) Female
Internal PortsLP4 (4 pin; Molex Large Drive Power) Female
SATA Power (15 pin) Plug
Environmental
Humidity5~85% RH
Operating Temperature0°C to 50°C (32°F to 122°F)
Storage Temperature-20°C to 60°C (-4°F to 140°F)
Hardware
Bus TypePCI Express
Card TypeStandard Profile (LP bracket incl.)
Chipset ID4 x Renesas / NEC - µPD720202
Industry StandardsUSB 3.0 Specification Rev. 1.0

USB Battery Charging Specification Rev. 1.2 (Apple Mode only)

PCI Express Base Specification Rev. 2.0

Intel xHCI Specification Rev. 1.0
InterfaceUSB 3.0
Port StyleIntegrated on Card
Ports4
Packaging Information
Shipping (Package) Weight204 g [7.2 oz]
Performance
Maximum Cable Length3 m [9.8 ft]
Maximum Data Transfer Rate5Gbps per port - 20Gbps Total
Type and RateUSB 3.0 - 5 Gbit/s
UASP SupportYes
Physical Characteristics
Product Height120 mm [4.7 in]
Product Length167 mm [6.6 in]
Product Weight90 g [3.2 oz]
Product Width15 mm [0.6 in]
Software
OS CompatibilityWindows® 8 / 8.1 (32/64bit), 7 (32/64), Vista (32/64), XP (32/64)

Windows Server® 2012, 2008 R2, 2003

Linux 2.6.31 or later
Special Notes / Requirements
System and Cable RequirementsAvailable PCI Express x4 or greater slot
What's in the Box
Included in Package4 Port PCIe USB Card
Driver CD
Instruction Manual
Low Profile Bracket
Specifications
Specifications
Interface PCIe 2.0 (x1)
Internal Connectors
External Connectors 4 x USB 3.0
Power Connector
  • 1 x 4pin Power
  • 1 x SATA Power
