QNAP 4 Bay TS-473A-8G Desktop NAS Enclosure

4 Bay QNAP TS-473A-8G Desktop NAS Enclosure, Quad Core 2.2GHz CPU, 8GB RAM, 5GB Flash, 4x USB 3.2 , 2x 2.5GbE, Black

Scan code: LN131768 Manufacturer code: TS-473A-8G
£931.99
Item currently awaiting an ETA
Pre order
  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • From £25.89 / month (APR 0%) or 0% for 4 months
    Monthly Payment: £77.67
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £931.99
    Total inc. interest: £931.99
    Monthly Payment: £38.84
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £931.99
    Total inc. interest: £931.99
    Monthly Payment: £25.89
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £931.99
    Total inc. interest: £931.99
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • With a 10% deposit from just £24.77 / month (APR 19.9%)
  • SCANPROTECT Protect against installation damage for 28 days. More info
Product Overview

QNAP TS-473A-8G 6 Bay NAS Enclosure

Featuring an AMD Ryzen™ V1000 series V1500B quad-core processor that delivers great system performance with up to quad-core / 8 threads and Turbo Core up to 2.2 GHz. The TS-473A features two 2.5GbE RJ45 ports and two PCIe Gen 3 slots for you to flexibly deploy 5GbE/10GbE networks. Two M.2 NVMe SSD slots for Qtier Technology and SSD Caching enable constant storage optimization. The TS-473A supports QTS and QuTS hero, allowing users to flexibly switch operating system based on their requirements.


High Performance AMD Ryzen™ Processor

The TS-473A is powered by an AMD Ryzen™ V1000 series V1500 quad-core 2.2 GHz processor with up to 64GB RAM (ECC memory is supported) and features USB 3.2 Gen 2 ports for speeds up to 10 Gb/s. The TS-473A also provides one USB Type-C port for supporting more devices to transfer large media files across devices, providing you with a more efficient workflow.


Switch Operating Systems for Optimal Data Integrity and Reliability

The TS-473A also supports QuTS hero - QNAP's ZFS-based NAS operating system. Providing end-to-end data integrity, data reduction (inline data deduplication, compression and compaction), and much more, QuTS hero uses additional system resources to ensure an optimal environment for protecting business data.


Obtain Performance Benefits from M.2 SSD Caching

The TS-473A features 2 M.2 NVMe SSD slots for you to enjoy SSD caching or Qtier auto tiering Technology

Improve random data access speeds with an SSD cache
SSD caches accelerate IOPS performance and reduce latency for storage volumes. They are perfect for IOPS-demanding applications (including databases and virtualisation) and can significantly improve overall workflows.
Maximise the value of SSDs with Qtier Technology
Qtier™ Technology empowers the TS-473A with auto tiering that helps continuously optimize storage efficiency by automatically moving data between M.2 SSDs, 2.5-inch SSDs, and high-capacity HDDs based on the data's access frequency. Qtier™ 2.0 features IO-awareness that empowers SSD-tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSDs.


Easy and Secure File Management

File Station allows direct management of files stored on the TS-473A and in the cloud. Users can easily upload files from their PC, drag/drop files between folders, rename/delete files, and configure file/folder permissions to prevent unauthorized access. Microsoft Office Online can also be used to directly view/edit Microsoft Office documents stored on the TS-473A. Confidential/sensitive data can be encrypted to add extra security.


Install a Graphics Card for GPU-Accelerated Computing

Graphics cards are optimized for graphical calculations and transformations, but require significantly more power than other hardware. The TS-473A features PCIe slots to support low-profile graphics cards that do not need power cables, including NVIDIA® GeForce® GTX1650 graphics cards to boost performance of applications such as video editing , 4K UHD transcoding, imaging processing in QTS and performance of virtual machines via GPU passthrough.


Build an Affordable Fibre Channel SAN Environment

Common Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing a QNAP 16Gb Fibre Channel card (QXP-16G2FC 16Gb) in the TS-473A, you can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.


High-Speed 2.5GbE VM Backup Solution

With Hyper Data Protector, the TS-473A becomes an agentless backup tool for unlimited VMware® vSphere and Microsoft® Hyper-V VM backup. Hyper Data Protector features incremental backup, global deduplication, backup scheduling and recovery compression. With 2.5GbE connectivity, backup and restoration times are greatly reduced, providing a cost-effective solution for disaster recovery.


Flexible and Economical Storage Expansion

QNAP provides easy storage capacity expansion solutions. Here are several ways to expand your TS-473A storage as needed to accommodate data and business growth.


Features


• Both 2.5GbE ports are backwards compatible with 1GbE/ 100MbE speeds. Up to 5 Gbps transfer speeds can be achieved by using port trunking.
• Add extra functionality with PCIe cards, including 10GbE ports, SSD caching, extra USB 3.2 Gen 2 ports, wireless networking, or Fibre Channel.
• Supports entry-level NVIDIA® graphics cards for video processing or GPU-passthrough to VMs.
• Features two M.2 PCIe NVMe SSD slots for Qtier Technology and SSD Caching enable constant storage optimization.
• Host containerized applications and virtual machines with various operating systems.
• Features QTS operating system and supports switching to ZFS-based QuTS hero for greater reliability.

Specifications
Edition TS-473A-8G
NAS Form Factor Desktop
Bays 4 Bay
Total Storage Included N/A
Type of Drives Included
Edition of Drives Included
Capacity of Drives Included
Max. Storage Capacity
Drive Interface Support
  • 2 x M.2 PCIe
  • 4 x SATA III - 6Gb/s
Drive Form Factor Support
  • 4 x 2.5"/3.5"
  • 2 x M.2 (2280)
Internal Flash Memory Yes
Internal Flash Memory Capacity 5GB
DOM Module No
DOM Capacity
CPU Type AMD
CPU Model AMD Ryzen V1500B
CPU Cores Quad Core
CPU Speed 2.2 GHz
RAM Memory Included 8GB (1x8GB)
RAM Memory Type DDR4 SO-DIMM
Max. RAM Memory Supported 64GB (2x32GB)
Cache Drive Interface
Included Cache Drive Capacity
Included Cache Drive Type
LAN Type 10/100/1000/2500
Expansion Slots
  • 2 x M.2, 22-80, PCIe Gen3
  • 2 x PCIe 3.0 x4

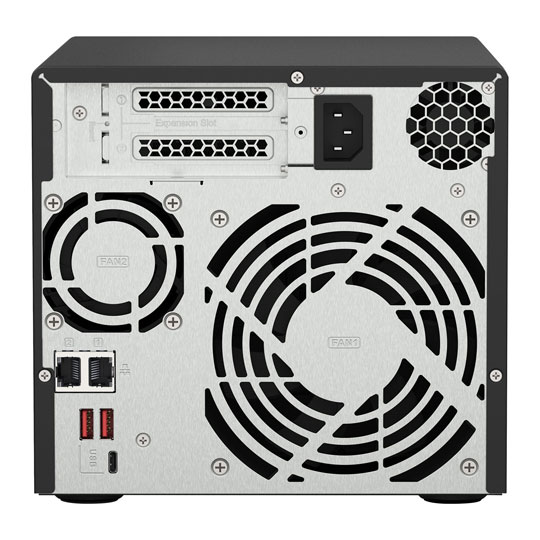

External Connectivity
  • 2 x RJ45
  • 1 x USB 3.2 Gen 1
  • 3 x USB 3.2 Gen2 Type-A
Cooling Fan
Noise Level
PSU Type Internal
PSU Wattage 250 W
Max. Power Consumption 29.792 W
Physical Security Kensington Lock Slot
Dimensions 199.3 x 188.2 x 280.8 (WxHxD mm)
Weight 5.03 kg
Additional Information
Scan Code LN131768
Model Number TS-473A-8G
GTIN 4713213518847
