Broadwell-E 6900K Overclocked Hardware Bundle

3XS Overclocked Bundle, X99-OC16, Intel Core i7 6900K 8-Core @ 4.2GHz, Asus X99-Deluxe II, 32GB Corsair DDR4

Scan code: LN73367 Manufacturer code: 3XS X99 OC16 Request call
In stock
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
3xs Approved High End
Delivery options £11.50 By DPD On 7th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout

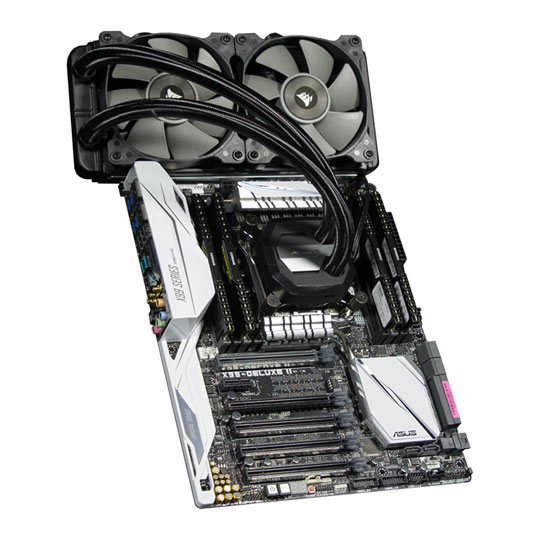

Product Overview The OC16 includes the latest "Broadwell-E" Intel Core i7 6900K. This is a 8-core CPU with Hyper-Threading which we overclock to 4.2GHz for great performance in all games and applications. It is kept cool by a Corsair H100i Hydro cooler and installed in an Asus X99-Deluxe II motherboard and accompanied by 32GB of 2666MHz Corsair Vengeance DDR4.

Why Choose 3XS ?

Built, overclocked and tested
An overclocked bundle professionally built in Scans state of the art 3XS Lab, each bundle undergoes a 24 burn test to guarantee stability. Your bundle will be shipped out fully built in a custom box which includes all the original component packaging.

Only the Best
We only use the best quality components in our 3XS PCs, each of which is tested to its limits by our R&D team.

Intensive Testing
Every 3XS bundle has to pass a 24-hour burn test to ensure all the components are working reliably.

Custom Design
Our 3XS bundles are designed in conjunction with our resident team of audio, graphics, video and server specialists to ensure the best possible performance in mission critical applications.

Made in the UK
Every component that is used inside one of our 3XS bundles is evaluated in our state of the art R&D lab and factory in Bolton, Lancashire.

Upgrade Options:

If you would like Scan to custom build a bundle, PC or laptop with your choice of components and software please visit our dedicated 3XS systems website. Features Processor - Intel Core i7 6900K Six Core professionally overclocked to 4.2GHz.
Motherboard - Asus X99-DELUXE II.
CPU Cooler - Corsair Hydro H100i.
Memory - 32GB Corsair Vengeance LPX 2666MHz DDR4.
Warranty - 3 Year Premium Warranty - Return to Base (Parts & Labour).
Bundle Includes
  • CPU Cooler
  • Motherboard
  • Overclocked CPU
  • RAM Memory
Professionally Overclocked Yes
CPU Type Intel Core i7
CPU Model 6900K
Overclocked CPU Speed 4.2 GHz
Overclock Performance Increase 31.25 %
CPU Stock Speed (Prior to OC) 3.2 GHz
CPU Socket 2011-3
CPU Architecture Broadwell-E
CPU Core Size 14 nm
CPU Cores 8 Core
CPU Threads 16
CPU Cache 20MB
CPU Integrated Graphics N/A
Cooler Type All-In-One Hydro Cooler
Cooler Edition Corsair Hydro H100i
Cooler Form Factor 240mm All-In-One Hydro Cooler
Cooler Fan Configuration 2 x 120mm
Heatsink/Radiator Dimensions
Memory Size 32GB (4x8GB)
Memory Model Corsair Vengeance LPX Black
Memory Type DDR4
Memory Channel Configuration Quad
Memory Factory Overclocked Yes
Memory Speed PC4-21300 (2666)
Memory CAS Latency
Memory Voltage 1.2 V
Memory Cooler Anodised Aluminium Heatspreader
Memory Features
  • Black PCB
  • XMP 2.0
Motherboard Edition Asus X99-DELUXE II
Motherboard Form Factor ATX
Motherboard Chipset Intel X99
Motherboard Memory Types Supported
  • DDR4
  • Non-ECC
  • Unbuffered
Motherboard Max. Memory Supported Upto 128GB (8x16GB)
Motherboard Max. Memory Speed Supported Upto PC4-26600 (3333)
Motherboard Supported Memory Channels Quad
Motherboard SLi Support 3 Way SLi
Motherboard CrossFire Support 3 Way CrossFireX
Motherboard Audio Chip Realtek ALC1150 7.1 HD Audio with Crystal Sound 3
Motherboard Network Chip
  • 1 x ASUS WiFi Go! 3T3R Module (a/b/g/n/ac + BT 4.0)
  • 1 x Intel® I211AT (Gigabit LAN)
  • 1 x Intel® I218V (Gigabit LAN)
Motherboard Expansions Slots
  • 1 x M.2, S3 (M), 2242/2260/2280, PCIe
  • 1 x PCIe 2.0 x16
  • 1 x PCIe 2.0 x16 (x4 Bandwidth)
  • 2 x PCIe 3.0 x16
  • 2 x PCIe 3.0 x16 (x8 Bandwidth)
Motherboard RAID Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Motherboard Internal I/O
  • 1 x 24pin (V)
  • 1 x 2pin Thermal Sensor Header
  • 1 x 3pin CPU OverVoltage(OV) Header
  • 1 x 4pin (V)
  • 1 x 5-pin EXT_FAN(Extension Fan) connector
  • 1 x 8pin (V)
  • 1 x AAFP Connector
  • 1 x Clear CMOS Button
  • 1 x CPU fan header
  • 1 x CPU OPT Fan Connector
  • 1 x DRCT Header
  • 1 x EZ XMP Switch
  • 1 x High AMP Fan Header
  • 1 x MemOK! Button
  • 1 x Power button
  • 1 x Reset Button
  • 1 x RGB Header
  • 1 x SATA Express (Compatible with 2x SATA 6.0 Gbps)
  • 6 x SATA III - 6Gb/s
  • 1 x SLI/CFX Switch (2/3-Way Adjustments)
  • 1 x SPDIF-Out Header
  • 2 x System Fan header
  • 1 x System panel(s) (Q-Connector)
  • 1 x Thunderbolt Header (5-pin)
  • 1 x TPM Header
  • 2 x U.2 Connector
  • 2 x USB 2.0 Header
  • 2 x USB 3.0 Header
  • 1 x Water Pump Header
Motherboard Rear I/O Panel
  • 2 x 10/100/1000 (LAN)
  • 1 x ASUS Wi-Fi GO! module (802.11ac and Bluetooth 4.0)
  • 2 x Audio I/O
  • 1 x BIOS Flashback Button
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x SPDIF Out (Optical)
  • 4 x USB 2.0
  • 4 x USB 3.0
  • 3 x USB 3.1 Type-A
  • 1 x USB 3.1 Type-C
