Scan code: LN91138 Manufacturer code: MZQLB3T8HALS-00007

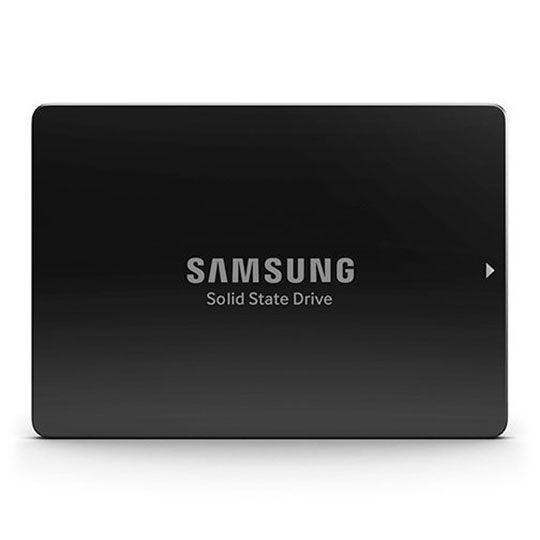

Samsung PM983 3.84TB 2.5" PCIe NVMe Enterprise SSD

3.84TB Samsung PM983 2.5" U.2 SSD, PCIe 3.0 (x4), NVMe, MLC 3D/V-NAND, 3000MB/s Read, 1900MB/s Write, 540k/50k IOPS

Scan code: LN91138 Manufacturer code: MZQLB3T8HALS-00007
£695.99Item currently awaiting an ETA
Pre order
From £33.41 / month (APR 14.9%)
Monthly Payment: £120.77
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £695.99
Total inc. interest: £724.61
Monthly Payment: £62.49
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £695.99
Total inc. interest: £749.77
Monthly Payment: £43.09
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £695.99
Total inc. interest: £775.47
Monthly Payment: £33.41
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £695.99
Total inc. interest: £801.73
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £17.38 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview Samsung PM983 SSD: Best-in-Class for Enterprise
Samsung’s all-flash solutions for heavy workloads deliver unrivalled performance, reliability and capacity without bottlenecks.

Top Solution for Diverse Applications: High Performance in a Small Form Factor
PM983 offers tremendous performance for Read-Intensive data centers by applying PCIe Gen 3, achieving 540K IOPS in Random Read and 3000 MB/s in sequential read speed. Using impressively low power in small form factors (2.5”, M.2), PM983 delivers an efficient SSD solution for mixed data workloads.

The Samsung SSD PM983 presents outstanding performance with instant responsiveness to the host system, by applying the Peripheral Component Interconnect Express (PCIe) 3.0 interface standard, as well as highly efficient Non-Volatile Memory Express (NVMe) Protocol.

The Samsung SSD PM983 delivers wide bandwidth of up to 3,000MB/s for sequential read speed and up to 1,900MB/s for sequential write speed under up to 10.6W power. With the help of Toggle 2.0 NAND Flash interface, the Samsung SSD PM983 delivers random performance of up to 540KIOPS for random 4KB read and up to 50KIOPS for random 4KB write in the sustained state.

By combining the enhanced reliability Samsung NAND Flash memory silicon with NAND Flash management technologies, the Samsung SSD PM983 delivers the extended endurance of up to 1.3 drive writes per day over 3 years, which is suitable for enterprise applications, in 2.5" form factor lineups: 960GB, 1.92TB, 3.84TB and 7.68TB.

In addition, the Samsung SSD PM983 supports Power Loss Protection (PLP). PLP solution can guarantee that data issued by the host system are written to the storage media without any loss in the event of sudden power off or sudden power failure. Features • Ultra-High Capacity 2.5” U.2 PCIe NVMe SSD.
• High Speed with Low Latency.
• Enhanced Reliability, Better Performance.
• Best Solution for Heavy Demands.
• Reliable Storage, 24/7 Operation.
• Top Solution for Diverse Applications.

Detailed Features:
• U.2 PCIe NVMe Interface.
• PCI Express Gen3 Single port X4 lanes.
• Compliant with PCI Express CEM Specification Rev. 3.0.
• Compliant with PCI Express Base Specification Rev. 3.1.
• Compliant with NVM Express Specification Rev. 1.2a.
• Enhanced Power-Loss Data Protection.
• End-to-End Data Protection.
• Support SSD Enhanced S.M.A.R.T. Feature Set.
• Hardware based AES-XTS 256-bit Encryption Engine.
• Static and Dynamic Wear Levelling.
• RoHS / Halogen-Free Compliant.
• TCG Opal Compliant.

Important - Please Note U.2 Cable not included, available separately. Images for Illustration Purposes ONLY.
Capacity 3.84TB
Edition PM983
Form Factor 2.5"
Height 6.8 mm
Interface PCIe 3.0 (x4)
Host Controller Interface NVMe 1.2
Controller Samsung Phoenix
Flash Memory Type 3-bit MLC 3D/V-NAND
Max. Read 3000 MB/s
Max. Write 1900 MB/s
DRAM Cache Memory N/A
DRAM Cache Memory Type
Max. Random Read 4K 540,000 IOPS
Max. Random Write 4K 50,000 IOPS
Latency 15/15 us (Sequential), 85/50 us (Random)
Special Features
  • AES-XTS 256-bit Hardware-based Encryption Engine
  • Dynamic Wear-Leveling
  • End-to-End Data Protection
  • Enhanced Power Loss Data Protection
  • Halogen-Free
  • RoHS Compliant
  • S.M.A.R.T Support
  • Static Wear-Leveling
  • TCG Opal Compliant
Power Consumption (active) 10.6W
Max. Endurance Rating 5466 TBW
MTBF 2,000,000 Hours
Max. Operating Vibration
Max. Non-operating Vibration 20 G (10 ~ 2,000 Hz, Sinusoidal)
Max. Operating Shock
Max. Non-operating Shock 1500 G (Linear, 0.5ms duration with 1/2 sine wave)
Connectivity 1 x U.2 (SFF-8639)
OS Support
  • CentOS 6.7
  • CentOS 7.3
  • Oracle Linux 6.6
  • Oracle Linux 7.2
  • RHEL 6.6
  • RHEL 7.2
  • SLES11SP3
  • SLES12
  • Ubuntu 14.10
  • Ubuntu 15.10
  • Windows Server 2012 R2
  • Windows Server 2016
Bracket N/A
Dimensions 69.85 x 6.8 x 100.2 mm (WxHxD)
Weight 70 g
Package Type Retail
Additional Information
Scan Code LN91138
Model Number MZQLB3T8HALS-00007
GTIN 0327544030
