Thermaltake Smart BX1 750W 80+ Bronze Fully Wired ATX Power Supply / PSU
Thermaltake Smart BX1 750W 80+ Bronze Fully Wired ATX Power Supply / PSU
Scan code: LN160715 Manufacturer code: PS-SPD-0750NNSABK-2
£49.99
Add To Basket
Get it Tomorrow, 16 JunIn stock
  • Thumbnail 1 : Thermaltake Smart BX1 750W 80+ Bronze Fully Wired ATX Power Supply / PSU
  • Thumbnail 2 : Thermaltake Smart BX1 750W 80+ Bronze Fully Wired ATX Power Supply / PSU
  • Thumbnail 3 : Thermaltake Smart BX1 750W 80+ Bronze Fully Wired ATX Power Supply / PSU
  • Thumbnail 4 : Thermaltake Smart BX1 750W 80+ Bronze Fully Wired ATX Power Supply / PSU

Thermaltake Smart BX1 750W 80+ Bronze Fully Wired ATX Power Supply / PSU

750W Thermaltake Smart BX1 Power Supply, Fully Wired, 80PLUS Bronze, Single Rail, 56A, 120mm Fan, ATX
MORE INFO
MORE INFO

Scan code: LN160715 Manufacturer code: PS-SPD-0750NNSABK-2
£49.99
£5.48 Next day delivery
Order by 8:30 PM today and get it tomorrow
Add To Basket
Get it Tomorrow, 16 JunIn stock
Pay in 3 interest-free payments of £16.67

Email me when the availability or price changes

  • By DPD On 16th Jun Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • SCANPROTECT Protect against installation damage for 28 days.
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.

750W Smart BX1 80 PLUS Bronze Fully Wired Power Supply from Thermaltake

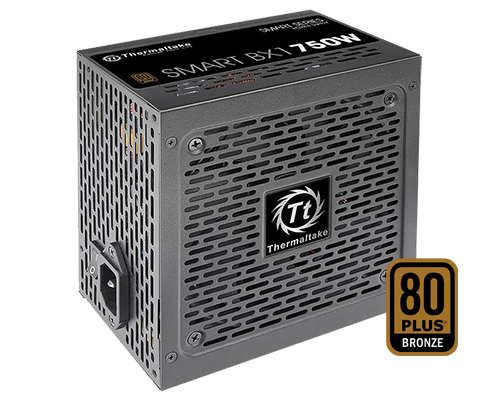

Smart BX1 PSU 750 Watt

impressive power withinBuilt to deliver 80 PLUS Bronze with 88% power efficiency, the Smart BX1 series is available in 450W - 750W models. Constructed with a 120mm hydraulic bearing fan, Japanese main capacitors and other premium components to help deliver a continuous and stable power output at 40℃, near silent operation and reliable performance. With an ample 5-year warranty, the Smart BX1 is able to satisfy the market, where value-oriented users are looking for a new power supply with all the latest features.

750WWattage

80 PLUS BronzeEfficiency Rating

ATXForm Factor

Key Features of the Smart BX1 Power Supply

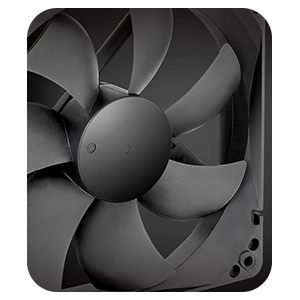

Close up of PSU Fan Blades

120mm Hydraulic Bearing Fan Featuring a 120mm hydraulic bearing fan with intelligent RPM controls to help guarantee superior cooling performance and near silent operation.

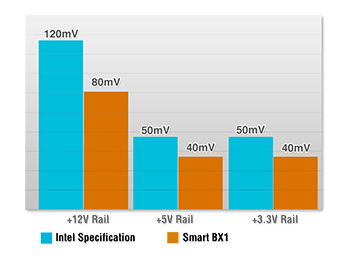

Chart Showing Noise Levels of BX1

Low Ripple Noise All ripples are lower than 80mV on +12V, and lower than 40mV on +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components, such as high-end graphics cards, to function reliably for longer.

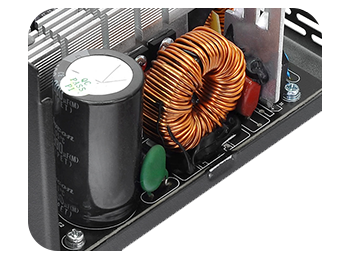

Close up of Japanese Capacitor

Premium Japanese Main Capacitor Providing great durability as well as offering the highest stability, while remaining reliable.

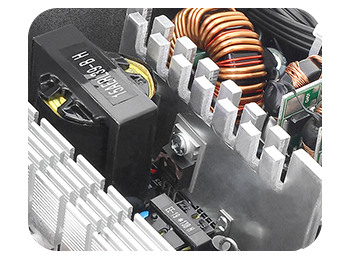

Close up image of +12V Rail

High Amperage Single +12V Rail Powerful single +12V rail ensures a stable and reliable supply to other PC components.


Specifications
Form Factor ATX
Edition Thermaltake Smart BX1
Wattage 750 W
Energy Efficiency Certification 80 PLUS Bronze
Max. Efficiency (at 230Vac) 88 %
Cooling Fan
Fans 1 x 120mm
Internal +12V Rails Single Rail
Rail 1 +12V 56 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V N/A
Modular No
Modularity Fully Wired
SLI/CrossFire No
EPS 12V No
Motherboard Connector 20+4-pin
Connectors
  • 1 x 4+4-pin ATX 12V
  • 1 x 4-pin FDD Power
  • 4 x 4-pin Molex
  • 4 x 6+2-pin PCIe
  • 8 x SATA
Dimensions 150 x 86 x 140 (WxHxD)
Package Type Retail
Warranty 5 Year
Additional Information
Scan Code LN160715
Model Number PS-SPD-0750NNSABK-2
GTIN 4711658546678
