Phison Pascari 3.2TB XP208H023T20E324T0910 X200E U.2 Enterprise NVMe SSD

Pascari X200E XP208H023T20E324T0910 U.2 Gen 5 Enterprise SSD

The Pascari X200E XP208H023T20E324T0910 is an enterprise-grade NVMe solid state drive in Phison’s Pascari Performance X-Series, engineered to deliver high throughput, strong random I/O performance and robust reliability for demanding data centre, AI, hyperscale and enterprise storage environments. As part of the Pascari X200E family, this U.2-form-factor SSD leverages PCIe 5.0 and the NVMe 2.0 protocol, combining cutting-edge interface bandwidth with enterprise-class protection features including Power Loss Protection (PLP), AES-XTS 256-bit hardware encryption, end-to-end data path protection, metadata protection, SECDED error correction and sanitise capabilities to maximise data integrity and service uptime. The X200E also supports NVMe-MI and SMBus for advanced management, and offers a balanced blend of sequential and random performance tailored to mixed, latency-sensitive workloads in modern data centre infrastructures.

PCIe 5.0 Performance Characteristics

The X200E SSD utilises a PCIe 5.0 ×4 interface, delivering class-leading throughput and responsiveness for enterprise storage systems. It achieves up to 14,800 MB/s sequential read and up to 8,600 MB/s sequential write performance, with random read speeds reaching up to 3,300K IOPS and random write speeds up to approximately 790K IOPS depending on workload and capacity tier, providing the high I/O rates needed for analytics, virtualisation and high-performance computing environments.

Enterprise-Class Reliability and Data Protection

Built to withstand mission-critical workloads, the X200E includes enterprise-grade reliability and protection mechanisms such as PLP capacitors, industry-standard AES-XTS 256-bit encryption, end-to-end data path protections and metadata integrity safeguards. These features help ensure that both data and system states remain protected during unexpected power events or sustained write activity, while built-in error correction and sanitise support bolster long-term data fidelity.

Enterprise Management and Integration

The X200E supports NVMe-MI (Management Interface) and SMBus, enabling administrators to monitor drive health, telemetry and performance directly within enterprise management frameworks. With support for up to 128 namespaces and capacity scaling up to multi-terabyte levels in the X200 family, the drive provides flexibility for large-scale deployments, data partitioning and QoS optimisation across diverse enterprise workloads.

Form Factor and Endurance

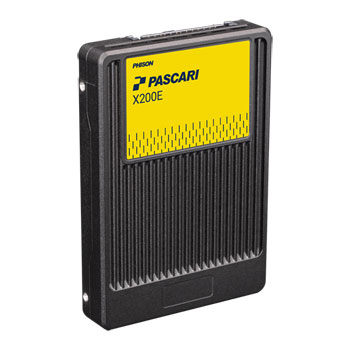

This model is presented in a U.2 2.5"15mm form factor, suitable for high-density rack servers, enterprise arrays and custom storage configurations. The X200E series offers endurance options up to 3 DWPD (Drive Writes Per Day) and maintains an MTBF (Mean Time Between Failures) rating of 2.5 million hours, reflecting its readiness for sustained enterprise use under heavy workloads.

• Enterprise-grade NVMe Gen5 U.2 SSD.
• PCIe 5.0 ×4 interface with NVMe 2.0 support.
• Up to 14,800 MB/s read, 8,600 MB/s write speeds.
• Up to 3,300K IOPS random read, 790K IOPS random write.
• Power Loss Protection (PLP).
• AES-XTS 256-bit hardware encryption.
• End-to-end data path protection.
• Metadata protection and SECDED error correction.
• Data Sanitisation support.
• NVMe-MI and SMBus management support.
• Support for up to 128 namespaces.
• MTBF 2.5 million hours with up to 3 Drive Writes Per Day.
