Scan code: LN110148 Manufacturer code: SSP-300SUB

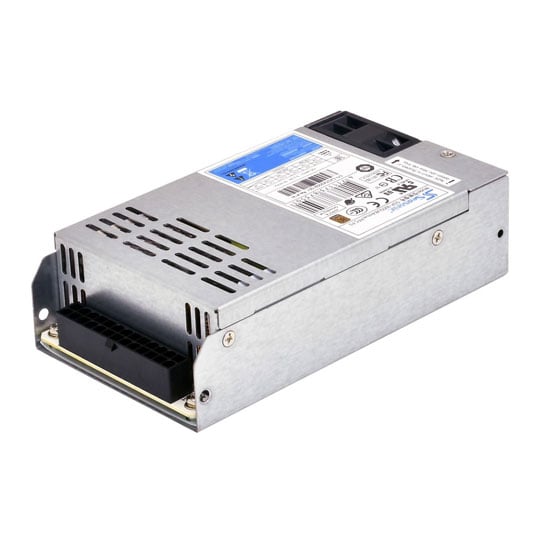

Seasonic 300W FLEX Power Supply/PSU

300W Seasonic SSP-300SUB FLEX SUB PSU, 80PLUS Bronze, Fully Modular, Dual Rail, 18A, +12V, 1U

Thumbnail 1 : Seasonic 300W FLEX Power Supply/PSU Thumbnail 2 : Seasonic 300W FLEX Power Supply/PSU Thumbnail 3 : Seasonic 300W FLEX Power Supply/PSU
Scan code: LN110148 Manufacturer code: SSP-300SUB
£39.98
Order now and get it tomorrow, Mon 28th Sep
Delivery Options
  • By DPD On 28th Sep to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

300 Watt FLEX Power Supply from Seasonic

PRIME TX 1000 Watt

EFFICIENT AND PRECISE POWER FOR YOUR PC The Seasonic industrial level switch mode power supplies offer a reliable source for a wide range of setups. The fully modular Flex ATX range with its full range AC input comes in, 250 W and 300 W versions and is the ideal choice for workstations, standard or advanced servers and various automation or communication applications. Their super low noise fan control makes them a pleasant companion in any industrial system.

300Watts

80 PLUS BronzeCertification

ATX 12 VForm Factor

Features of the 300W FLEX

4K Recording

300W FLEX POWER SUPPLY SATA-ready.
80 PLUS Bronze Certified.
Low ripple and noise.
Super low noise fan control.
Short circuit protection on all outputs.
Over voltage protection.
Over power protection.
Fanless Mode (up to 30% system load.)

Overview of the 300W FLEX PSU

FLEX PSU
80 PLUS Bronze
Intel ATX 12 V v2.31 compliant Yes
EPS 12 V compliant Yes
Flex ATX v1.0 compliant Yes
Dimensions 150 mm (L) x 81.5 mm (W) x 40.5 mm (H)
DC to DC Converter Design No
Forward Converter Circuit Yes
Fully modular cables Yes
40 mm Double ball bearing Fan Yes
S3FC - including Fanless Mode Yes
S2FC - Smart and Silent Fan Control No
Easy-swap connector design Yes
Zero Minimum load on 3.3 V Rail No
Short Circuit Protection on all Outputs Yes
Over Voltage Protection Yes
Over Power Protection Yes
100 % HiPot Test Yes
100 % Burn-in, High temperature Cycled on/off Yes
Safety Compliance CB, cUL, TUV, CCC, BSMI
EMI/EMC Compliance CE, FCC, RCM
Specifications
Size FlexATX
Edition 300W Flex Sub
Wattage 300 W
80 PLUS Certification 80 PLUS Bronze
Max. Efficiency (at 230Vac) 85 %
Cooling Fan
Fans 1 x 40mm
Internal +12V Rails Dual Rail
Rail 1 +12V 18 A
Rail 2 +12V 18 A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 25 A
Modular Yes
Modularity Full Modular
SLI/CrossFire No
EPS 12V Yes
Motherboard Connector 24-pin
Connectors
Dimensions 81.5 x 40.5 x 150 (WxHxD)
Package Type Retail
Additional Information
Scan Code LN110148
Model Number SSP-300SUB
GTIN 4711173873501
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Warranty information has not yet been updated for this product. For further information please call 0871 472 4747 or 01204 474747.
