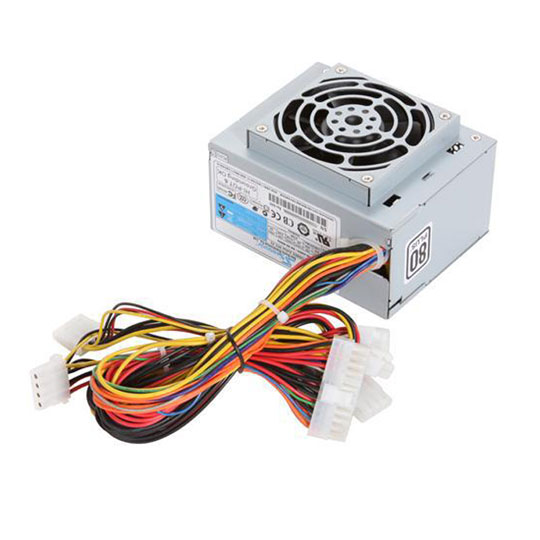

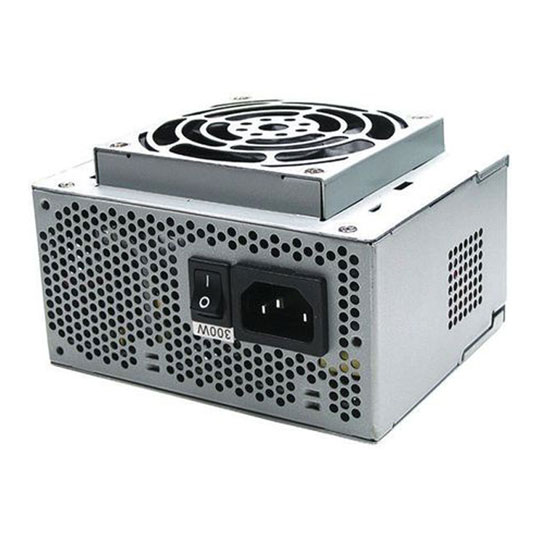

Seasonic SS-300SFD SFX 300W Power Supply

300W Seasonic SS-300SFD SFX, 80PLUS White, Fully Wired, Dual (2) Rail, 22.5A +12V, 1x 80mm Fan

Seasonic
Scan code: LN64977 Manufacturer code: SS-300SFD Request call
£38.99
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD On 25th Sep 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview • Specification compliance: SFX12V v3.1
• Forward converter circuit
• High efficiency and reliability
• Low ripple & noise
• Super low noise fan control
• Short circuit protection on all outputs
• Over voltage protection
• Over power protection
• 100% hi-pot test
• 100% burn in, high temperature cycled on/off Features Electrical Specifications:
• Input frequency: 50/60 Hz
• Inrush current, cold start: 100A max.
• Hold up time, full load: 16ms. typical
• Efficiency, at normal input voltage: > 80%
• Dielectric withstand, input to frame/ground: 1800VAC, 1sec
• Dielectric withstand, input to : 1800VAC, 1sec
• Line regulation: +/-1% typical
• Load regulation: +/-5% typical
• Cross regulation: +/-5% typical
• Ripple / noise: 1%
• MTBF, full [email protected]? amb. : >100K hours
(Excluding the DC fan)
• Power Factor Correction: Active PFC 99% typical
• Safety: CUL, TUV, CB, CCC, BSMI
• EMC: CE, FCC

Connectors:
• Main Power (24/20P) x 1
• ATX12V (4P) x 1
• Peripherals: SATA, HDD, FDD
Specifications
Size SFX
Edition SS-300SFD Active PFC
Wattage 300 W
80 PLUS Certification 80 PLUS White
Max. Efficiency 80 %
Cooling Fan
Fans 1 x 80mm
Internal +12V Rails Dual Rail
Rail 1 +12V 8 A
Rail 2 +12V 14.5 A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 22.5 A
Modular No
Modularity Fully Wired
SLI/CrossFire No
EPS 12V No
Motherboard Connector 24-pin
Connectors
Dimensions 100 x 76 x 125 (WxHxD)
Package Type Retail
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
