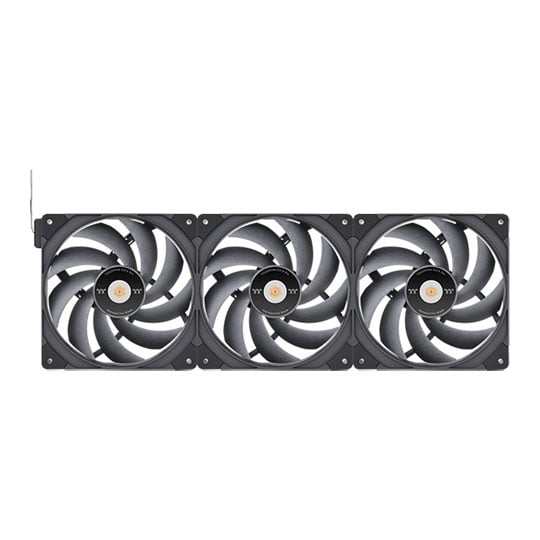

Thermaltake TOUGHFAN EX14 Pro PWM Fan - Swappable Edition (3 Pack)
3x 140mm Thermaltake TOUGHFAN EX14 Pro, 9 Blade, 500-2000rpm, PWM, 119.6CFM, Magnetic Connection, Black
Email me when the availability or price changes
-
0% UP TO MONTHS Spend £99 or more and choose PayPal at checkout.
More info
- SCANPROTECT Protect against installation damage for 28 days. More info
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
TOUGHFAN EX14 Pro
By adding the MagForce 2.0 and swappable fan blade design to the powerful TOUGHFAN Pro, the new TOUGHFAN EX Pro can provide supreme cooling performance with a quick magnetic connection, allowing you to swap the fan blades to fit installation & aesthetic preferences.
Steady Connection with MagForce 2.0
Evolved from SWAFAN EX’s Magnetic Force Design, the new MagForce 2.0 features the Pogo pin contact pads that are TWO times larger for greater tolerance. This enhancement significantly reduces the potential of faulty alignment no matter whether you are daisy-chaining fans together or connecting fans with cables, streamlining installation efficiency as well as user experience.
Say Goodbye to Excessive Cables
Connect your fans with TOUGHFAN EX Pro’s MagForce 2.0 Quick Connect Design and be free from messy cables by taking advantage of daisy chaining capabilities allowing you to connect multiple fans with a single cable.
Specially Engineered Fan Blades
The TOUGHFAN EX Pro incorporates nine lengthened fan blades that have been restructured using precision adjustment software, delivering higher airflow and stronger static pressure during operation. The fan blades are also made from liquid crystal polymer (LCP), a compound that minimises vibration at full rotation.
Stronger Than Ever
With new technology and craftsmanship, the TOUGHFAN EX12 Pro has a maximum operating speed of 2000 RPM.
The Standard Fan Blades can provide a static pressure of 3.57 mmH2O and 119.6 CFM (Max) airflow while maintaining under 31.6 dB-A noise level and bring air from the front to the back.
The Reverse Fan Blades can provide a static pressure of 2.95 mmH2O and 102.3 CFM (Max) airflow while maintaining under 34.1 dB-A noise level and bring air from the back to the front.
Affording you even greater personalisation.
Improved Structure for Superior Performance
The TOUGHFAN EX Pro has been designed with an updated square fan frame featuring a new outline that prevents air leakage effectively allowing you to experience extreme performance whether installed on a chassis or radiator.
No More Compromise
No longer will you need to stare at the back of your fan, with the TOUGHFAN EX PROs design your fans can always face forwards.
Keep Your Blades Clean
Cleaning made easy, if your not a fan of brushing out your fans, you can pop the fan blades out and even rinse them with water, just make sure to dry them thoroughly and apply the provided bearing lubricant.
Anti-vibration Mounting System
The TOUGHFAN EX Pro is designed with 80% coverage on all corners, with the in-mold injection anti-vibration rubber pads the fan’s vibration is lowered, allowing the fan to spin at a higher level while continuing to maintain a low noise level.
Features
• Fan Size: 140mm.
• Power: 4pin power.
• Noise: 34.1dB-A.
• Fan Bearing: Hydraulic.
• Fan Speed: 500 - 2000 RPM PWM.
• Max. Air Pressure - Standard Fan Blade : 3.57 mm-H2O(Single fan) Reverse Fan Blade : 2.95 mm-H2O(Single fan)
• Airflow- Standard Fan Blade : 119.6 CFM(Single fan) Reverse Fan Blade : 102.3 CFM(Single fan)
• Noise Level - Standard Fan Blade : 31.6 dB-A(Single fan) Reverse Fan Blade : 34.1 dB-A(Single fan)
• Colour: Black.
• Dimensions: 140 x 25 x 140 mm.
