NVIDIA 2m QSFP Passive Copper Splittter Cable
NVIDIA 2m QSFP Passive Copper Splittter Cable
Scan code: LN109565 Manufacturer code: 980-9I99F-00H002
£284.99Stock arrives 1-2 days from time of order
ETA 1-2 days
  • Thumbnail 1 : NVIDIA 2m QSFP Passive Copper Splittter Cable
  • NVIDIA 2m QSFP Passive Copper Splittter Cable : video thumbnail 1

NVIDIA 2m QSFP Passive Copper Splittter Cable

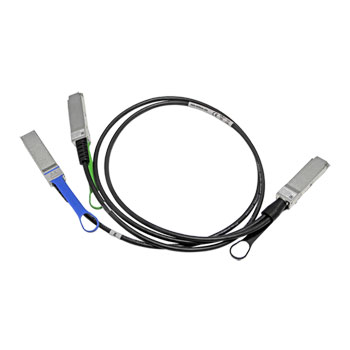

2m NVIDIA MCP7H50-H002R26 Passive Copper Splitter Cable, Direct Attach, InfiniBand, 200Gb/s, QSFP56, LSZH

Scan code: LN109565 Manufacturer code: 980-9I99F-00H002
£284.99
£5.48 Next day delivery
Stock arrives 1-2 days from time of order
ETA 1-2 days

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • With a 10% deposit from just £7.57 / month (APR 19.9%)
  • SCANPROTECT Protect against installation damage for 28 days.
Product Overview

200Gb/s HDR to 2x 100Gb/s HDR100 Direct Attach Copper Splitter Cable

Mellanox® MCP7H50-H0xxRyy DAC splitter cables are high-speed, cost-effective alternatives to fibre optics in 200Gb/s InfiniBand HDR applications.
MCP7H50-H0xxEyy cables provide connectivity between system units with a 200Gb/s HDR QSFP56 port on one side and two 100Gb/s HDR100 QSFP56 ports on the other side. The cable connects the data signals from each of the 2 dual copper pairs on the single QSFP56 (pair 1&2, 3&4) end to the dual copper pair of each of the QSFP56 (pair 1&2) ends on the multi-port side. Each QSFP56 port comprises an EEPROM providing product information, which can be read by the host system.
Mellanox’s unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. It enables higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centres.
Rigorous cable production testing ensures best out-of-the box installation experience, performance and durability.

Features

• IBTA InfiniBand HDR compliant.
• 200Gb/s HDR to 2x100Gb/s HDR100 data rate.
• 4x 50Gb/s PAM4 modulation.
• SFF-8665 compliant.
• Operating case temperature 0-70°C.
• Single 3.3V supply voltage.
• BER (Bit Error Rate) better than.
• 1E-15 with Mellanox InfiniBand HDR systems.
• Hot pluggable.
• RoHS compliant.
• LSZH (Low Smoke Zero Halogen) jacket.
• LF (Lead Free) HF (Halogen Free) PCB.
• SFF-8636 compliant I2-C management interface.

Specifications
Edition
Form Factor
Total Network Ports 3 x QSFP56
PoE Support Type
No. of Ports Providing PoE
Other Non-Network Ports
Switching Capacity
Non-Blocking Throughput
Forwarding Rate
MAC Address Table Size
Network Capacity
Built-in Flash Memory
RAM Memory
Network Protocols
Acoustic Noise
Max. Power Consumption 0.1 W
Max. PoE Wattage per Port
Mean Time Between Failures (MTBF)
Power Supply
Material Copper
Includes
Dimensions (WxHxD)
Weight
Additional Information
Scan Code LN109565
Model Number 980-9I99F-00H002
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Direct
DOA Period:
6 days
RTB Period:
12 months
