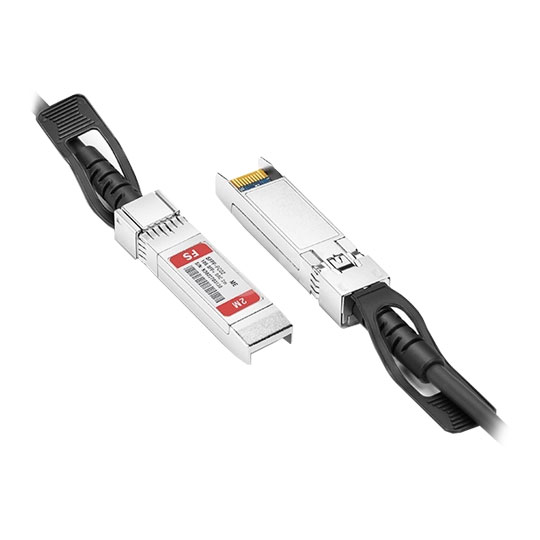

FS Generic Compatible 10G SFP+ Passive DAC Twinax Cable
2m (7ft) Generic Compatible 10G SFP+ Passive Direct Attach Copper Twinax Cable, 30AWG, PVC (OFNR), Black
Email me when the availability or price changes
Finance this product
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
10G SFP+ Passive Copper Twinax Cable
The SFP+ passive cable assemblies are high performance, cost effective I/O solutions for 10G Ethernet and 10G Fiber Channel applications. SFP+ copper modules allow hardware manufactures to achieve high port density, configurability and utilisation at a very low cast and reduced power budget. The high speed cable assemblies meet and exceed Gigabit Ethernet and Fiber Channel industry standard requirements for performance and reliability.
These assemblies are called “passive” copper cables because there isn’t any signal conditioning circuitry (e.g. crosstalk or echo cancellation) contained within the SFP+ connector. Sometimes these assemblies are referred to as “DAC” or “Direct Attached Copper” cables. Inside the SFP+ MSA footprint optical cables can be used that require optical transceivers or Active Optical Cables (AOC) that contain the transceiver as part of the cable.
• 850nm VCSEL transmitter, PIN photo-detector receiver, up to 300m on OM3 MMF.
• Wire AWG: AWG30, AWG28, AWG26, AWG24.
• Cable type: Passive Copper Twinax Cable.
• Improved Pluggable Form Factor (IPF) compliant for enhanced EMI/EMC performance.
• Commercial temperature range (COM): 0~ 70 °C.
• Low power consumption < 0.5W.
• Power supply :+3.3V.
• Small diameter cable design.
• Compatible to SFP+ MSA.
• Electrical interface compliant to SFF-8431.
