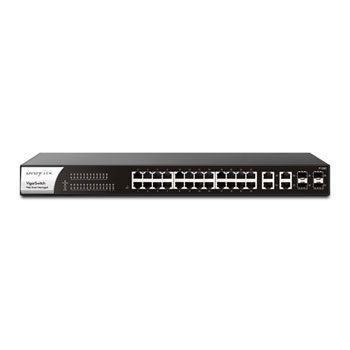

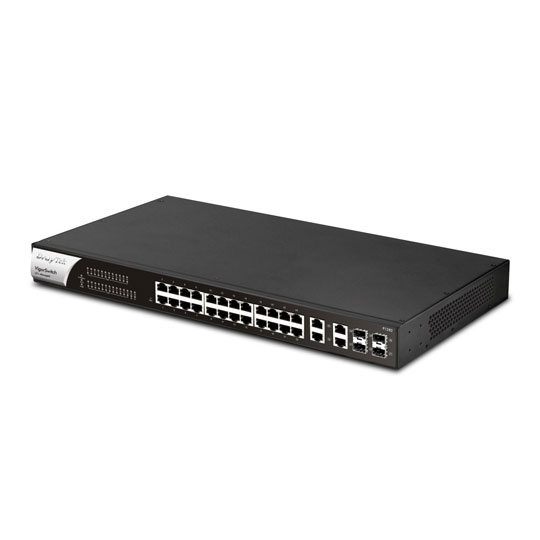

Draytek VigorSwitch P1282 28 Port PoE+ Gigabit Switch
28 Port VigorSwitch P1282 Web Smart Managed Gigabit switch, 24x RJ-45 GbE PoE+, 4 x RJ-45/SFP GbE, QoS, IPv4 / IPv6
- SCANPROTECT Protect against installation damage for 28 days. More info
Smart Managed Gigabit Switch with 24 Gigabit PoE+ Ports & 4 SFP Ports
The VigorSwitch P1282 is a high-performance, Smart Managed Gigabit Ethernet switch with 4 SFP uplink ports. With 24 PoE+ (Power over Ethernet) RJ-45 LAN ports, it's ideal for powering connected IP phones, IP cameras and wireless access points.
The 400 watt PoE power budget provides ample power through Ethernet, to each of its 24 PoE / PoE+ enabled Gigabit LAN ports.
Designed for centralised management, the VigorSwitch P1282 can be provisioned and monitored with the VigorACS management platform, the free VigorConnect single site management system and/or, with a DrayTek Vigor router's Central Switch Management. Easily provision VLAN configuration through the router and clone switch configurations. Drastically reduce the setup time required for a complex network and configure an entire DrayTek network remotely.
Manage Centrally or Stand-Alone
Configure and monitor the switch through the VigorACS cloud management platform, through VigorConnect, through a DrayTek Vigor router, or directly via the device's Web Interface.
Automatic VLAN Assignment
Voice, Surveillance and MAC VLANs dynamically assign VLANs to IP Phones, IP Cameras and more. Ensures the same network setup and Quality of Service regardless of where devices are plugged in.
Useful Security Features
Protect your network against unauthorised access and network problems with IP Conflict Prevention, DoS Defence, Access Control Lists for IPv4, IPv6, MAC and IP Source Guard.
Smart Power Over Ethernet
Provides ample power through Ethernet to each of the 24 PoE / PoE+ enabled Gigabit LAN ports. PoE scheduling, priority & Device Check features ensure your PoE devices are powered and working.
IP Camera Management
Manage IP Cameras easily with detection and management of ONVIF cameras. Use PoE Device Check, auto-generated IP Camera topology and Camera Snapshots to detect & troubleshoot problems.
4 SFP Ports for Uplinks
Uplink to Fibre or direct-attach to additional switches, with 4x Gigabit SFP Ports. Connect switches over long distances with SFP Fibre modules.
Features
• 24 x RJ-45 Gigabit Ethernet Ports with PoE+.
• 4 x RJ-45 / SFP Gigabit Ethernet Ports.
• 400-watt Power-over-Ethernet budget for demanding applications.
• Cloud Managed with VigorACS.
• 802.1q VLANs with Dynamic MAC-based, Voice & Surveillance VLAN.
• ONVIF IP Camera Surveillance Management with PoE Device Check.
• Access Control List (ACL) for port & traffic level security.
• Port Mirroring & Link Aggregation.
• IGMP Snooping & Querying.
• IPv4 and IPv6 Support with IP Conflict Prevention.
• Centrally managed or standalone operation.
