Scan code: LN110309 Manufacturer code: TL-SG1428PE

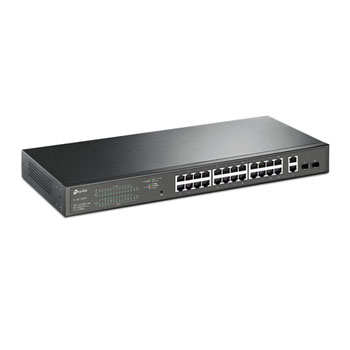

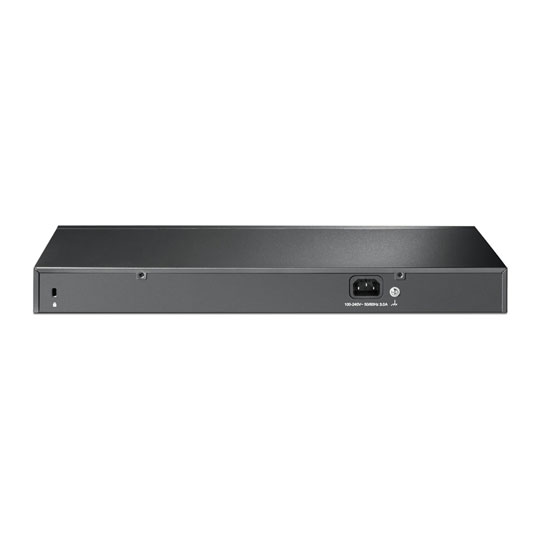

TP-LINK 28-Port Gigabit Easy Smart PoE+ Switch

28 Port TP-LINK TL-SG1428PE Gigabit Easy Smart Switch, 26x 10/100/1000Mbps RJ45 Ports (24 PoE+), 2 Gigabit SFP Ports

Thumbnail 1 : TP-LINK 28-Port Gigabit Easy Smart PoE+ Switch Thumbnail 2 : TP-LINK 28-Port Gigabit Easy Smart PoE+ Switch Thumbnail 3 : TP-LINK 28-Port Gigabit Easy Smart PoE+ Switch
Scan code: LN110309 Manufacturer code: TL-SG1428PE
£190.99Item currently awaiting an ETA
Pre order
From £16.42 / month (APR 5.9%) or 0% for 4 months
Monthly Payment: £16.42
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £190.99
Total inc. interest: £196.99
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Multiple Application Scenarios

The TL-SG1428PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.


Dedicated 24 PoE+ Ports (250 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget for the 24× gigabit PoE+ ports makes it has a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.


Making Management Easy

TL-SG1428PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1428PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.


System Self-Healing with PoE Auto Recovery

The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.


Intelligent Power Management to Prevent Power Overload

Automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply when the total PoE power consumption exceeds 250 W. This protects the device from power overload operation.


Great Compatibility with PD Detection

Automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.


Wide Operating Temperature with Good Heat Dissipation

Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50 C) with reliability.



Features
• 24 10/100/1000Mbps RJ45 PoE+ Ports Switch with 2 SFP Slots
• PoE power budget is up to 250 W, making it ideal for small to medium business surveillance systems
• Priority Mode helps to guarantee the quality of sensitive application like video monitoring
• PoE Auto Recovery enables system self-healing to guarantee the stable operation of PoE-connected devices
• QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV
• Intelligent power management can protect the switch from overload
Specifications
Edition EasySmart
Form Factor Desktop / 1U Rackmount
Total Network Ports
  • 26 x 10/100/1000 (Gigabit) RJ-45
  • 2 x SFP
PoE Support Type PoE+
No. of Ports Providing PoE 24 x 10/100/1000 (Gigabit) RJ-45
Other Non-Network Ports
Switching Capacity 56Gbps
Non-Blocking Throughput
Forwarding Rate 41.7 Mbps
MAC Address Table Size 8K Entries
Network Capacity
Built-in Flash Memory
RAM Memory
Network Protocols
  • 802.3af PoE
  • 802.3at PoE
  • IEEE 802.1p
  • IEEE 802.1Q
  • IEEE 802.3
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3i
  • IEEE 802.3u
  • IEEE 802.3x
Acoustic Noise
Max. Power Consumption 304.7 W
Max. PoE Wattage per Port
Mean Time Between Failures (MTBF)
Power Supply Internal AC Power Supply
Material
Includes Rack Mounting Brackets
Dimensions (WxHxD) 440 x 44 x 120 mm
Weight
Additional Information
Scan Code LN110309
Model Number TL-SG1428PE
GTIN 221609000101
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
12 months
