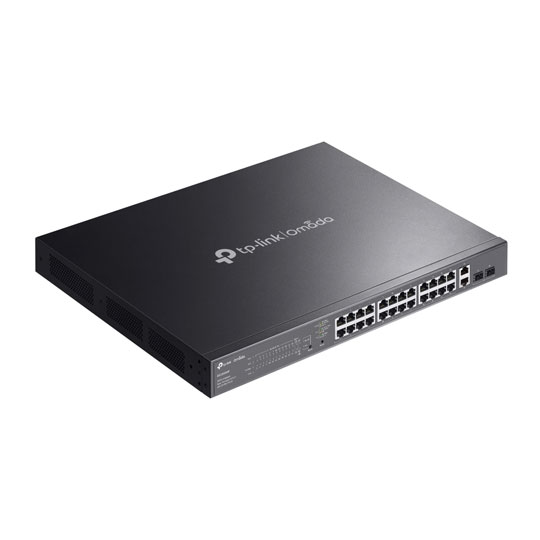

tp-link 28-Port ES228GMP Omada Gigabit PoE+ Managed Switch

tp-link ES228GMP Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+

The TP-Link ES228GMP Omada Easy Managed Switch is a high-capacity solution built for demanding networks, offering 26 Gigabit ports (24 with PoE+ support), a 384 W total PoE budget, and long-range PoE transmission up to 250 m. Designed for SMBs, surveillance systems, and office deployments, it combines powerful performance - 56Gbps switching capacity, 41.67Mpps forwarding rate, 8K MAC address table, 4 Mbit packet buffer memory, and 15 KB jumbo frame support - with easy centralised management through the Omada app, cloud, or web GUI. Intelligent features such as automatic loop prevention, VLAN segmentation, IGMP Snooping, QoS, PoE Auto Recovery, and Port Isolation provide secure, efficient, and reliable operation across growing networks.

High-Density PoE Coverage

With 24 PoE+ ports delivering up to 30W each and a combined 384W PoE budget, the ES228GMP is built to power a wide range of devices including IP cameras, wireless access points, and VoIP phones. Its ability to transmit PoE up to 250 metres makes it particularly effective for surveillance systems and remote deployments where power delivery is often challenging.

Enterprise-Grade Hardware Performance

The switch is engineered for fast and reliable networking with a 56Gbps switching capacity and a forwarding rate of 41.67Mpps. It supports an 8K MAC address table, a 4 Mbit packet buffer, and 15 KB jumbo frames, ensuring consistent performance even in high-traffic environments.

Centralised & Simple Management

As part of the Omada SDN platform, the ES228GMP can be centrally managed through the Omada Controller, cloud platform, web interface, or Omada mobile app. This flexibility makes it easy to configure, monitor, and manage networks across multiple sites from one unified system.

Intelligent Traffic Control

Advanced traffic management features allow the switch to deliver efficient and secure connectivity. VLAN support enables traffic segmentation, QoS ensures priority for critical applications, and IGMP Snooping optimises multicast traffic to keep networks stable and responsive.

Built-In Resilience & Protection

The ES228GMP includes safeguards to keep networks running smoothly with minimal intervention. Automatic Loop Prevention helps avoid network disruption, PoE Auto Recovery reboots unresponsive powered devices automatically, and Port Isolation enhances security by preventing unwanted lateral communication.

Rack-Ready, Durable Design

Housed in a robust 1U rack-mountable metal chassis and equipped with dual-fan cooling, the switch is designed to handle professional networking environments where reliability and durability are essential.

• 26 x 10/100/1000Mbps RJ45 ports (24× 802.3af/at-compliant PoE+).
• 2 x Gigabit SFP slots.
• 384W Power Budget, with up to 30W for each PoE port.
• Supports plug-and-play for instant connectivity and simple configuration for additional features.
• Centralized Cloud Management via the web or the Omada app.
• Up to 250m PoE, QoS, PoE Auto Recovery, and Port Isolation for reliable surveillance networking.
• Automatic Loop Prevention, VLAN, and IGMP Snooping.
• Durable metal casing and rack-mountable design.
