Scan code: LN116982 Manufacturer code: DGS-1250-28X

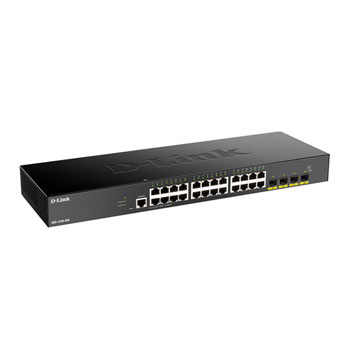

D-Link DGS-1250-28X 28-Port 10 Gigabit Smart Managed Switch

28 Port D-Link DGS-1250-28X 10 Gigabit Smart Managed Switch, 24x 10/100/1000 Ports, 4x 10G SFP+ Ports, QoS Enablement

Thumbnail 1 : D-Link DGS-1250-28X 28-Port 10 Gigabit Smart Managed Switch Thumbnail 2 : D-Link DGS-1250-28X 28-Port 10 Gigabit Smart Managed Switch Thumbnail 3 : D-Link DGS-1250-28X 28-Port 10 Gigabit Smart Managed Switch
Scan code: LN116982 Manufacturer code: DGS-1250-28X
£239.99Item currently awaiting an ETA
Pre order
From £11.52 / month (APR 14.9%)
Monthly Payment: £21.55
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £239.99
Total inc. interest: £258.53
Monthly Payment: £11.52
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £239.99
Total inc. interest: £276.46
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Leading the Way with Affordable 10 Gigabit Connectivity

Deploy the most cost-effective 10G solution as core switches for SMBs and as access switches for Enterprises. Designed with a high port density, high-bandwidth ports to remove bottlenecks, a high PoE power budget for larger deployments, redundancy capabilities to maintain uptime, easy-to-use multilingual web UI management, dedicated console port and full CLI control.


Easier Maintenance, Less Downtime

Support for STP, RSTP, and MSTP provides redundant links, prevents network loops, increases network reliability and minimises downtime for essential applications. These switches can even withstand temperatures between -5 to 50°C. Dual software images and configuration files allow the switch to quickly change between firmware versions and configurations to minimise downtime.


10G Connections

Each switch in the series has four 10G SFP+ ports, which allows the most suitable media type to be chosen and mitigates network bottlenecks. The flexible uplink connections in both 1G/10G speeds deliver on data-intensive tasks.


Optimised for Video Surveillance

D-Link’s exclusive Surveillance Mode provides a Web UI designed for video surveillance: it gives you an instant snapshot of your topology, makes features easy to access, and simplifies management of your surveillance network.


Layer 3 Lite

Including IP interfaces, IPv6 Neighbor Discovery (ND), ARP-Snooping Prevention, IGMP and MLD Snooping, LLDP and LLDP-MED. The DGS-1250 series also includes IPv4/IPv6 static routing capabilities for a scalable and more efficient network.


Quality of Service

The series supports 802.11p Quality of Service to deliver data to devices based on the priority and type of traffic, and bandwidth Control to reduce unwanted network broadcast traffic. And the Auto-Voice and Auto-Surveillance VLAN features allow voice and video traffic to be automatically identified and prioritised.


Security Down to the Port Level

The D-Link Safeguard Engine helps protect against malicious traffic flooding the network in the event of a malicious attack. The series supports IMP-Binding which is an easy method to control nodes during IP conflicts and auditing issues, and it prevents ‘ARP spoofing’ and 'man-in-the-middle' malicious attacks.

Network security is further reinforced with ARP Inspection, DHCP Snooping, and a host of security and authentication features such as 802.1X port-based authentication, port security for 64 MAC addresses per port. The series also includes network protection functionalities like Access Control List, and DHCP Server Screening that only allows legitimate DHCP Server IP addresses on specific ports.


Network Management Options to Suit your Business.

The DGS-1250 series comes with the intuitive D-Link Network Assistant (DNA) utility for which simplifies the discovery of all devices using the D-Link Discovery Protocol within the same L2 network segment and displays them on screen for instant access. Simultaneous configurations and basic setups of all discovered devices, including password changes and firmware upgrades, can then be done easily.

The series can also be managed through the web-GUI that has 11 selectable languages, or the free, SNMP-supported D-View 7. Each switch includes a dedicated console port, and the full CLI provides more control, precision and repeatability.


Features


• 24 x 10/100/1000BASE-T ports
• 4 x 10G SFP+ ports for choosing the most suitable media type for your requirement
• Lite L3 Static Routing for increased network efficiency
• Advanced security features such as Access Control List, IMPB, 802.1X Authentication to enhance network security and protect the internet IT network
• Dual Image & Configuration for reduced downtime
• Supports STP/RSTP/MSTP to maintain the quality of network
• Full CLI for for easy management
• QoS Enablement for performance improvement of critical network traffic
• 11 Web Languages for management flexiblity

Specifications
Edition Smart Managed Switch
Form Factor Desktop
Total Network Ports
  • 24 x 10/100/1000 (Gigabit) RJ-45
  • 4 x SFP+
PoE Support Type N/A
No. of Ports Providing PoE
Other Non-Network Ports
Switching Capacity 128 Gbps
Non-Blocking Throughput
Forwarding Rate 95.24 Mpps
MAC Address Table Size 16k Entries
Network Capacity
Built-in Flash Memory 64MB
RAM Memory 2GB
Network Protocols
  • IEEE 802.3
  • IEEE 802.3ab
  • IEEE 802.3ae
  • IEEE 802.3az
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3z
Acoustic Noise 47.6 dB
Max. Power Consumption 29.6 W
Max. PoE Wattage per Port
Mean Time Between Failures (MTBF) 743,482.45 hours
Power Supply Internal AC Power Supply
Material
Includes
Dimensions (WxHxD) 140 x 44 x 440 mm
Weight 1.75 kg
Additional Information
Scan Code LN116982
Model Number DGS-1250-28X
GTIN 790069448164
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
60 months
Type:
Direct
DOA Period:
1 days
Manufacturer Contact Details
Manufacturer:
DLINK UK LTD.
Telephone:
0845 612 0003
D-Link DGS-1250-28X 28-Port 10 Gigabit Smart Managed Switch
D-Link DGS-1250-28X 28-Port 10 Gigabit Smart Managed Switch
