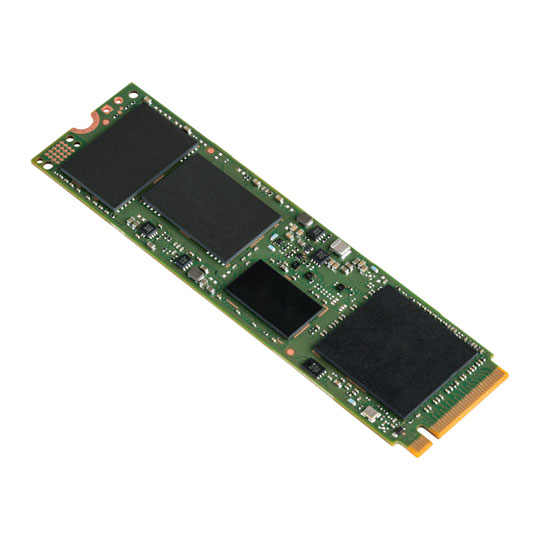

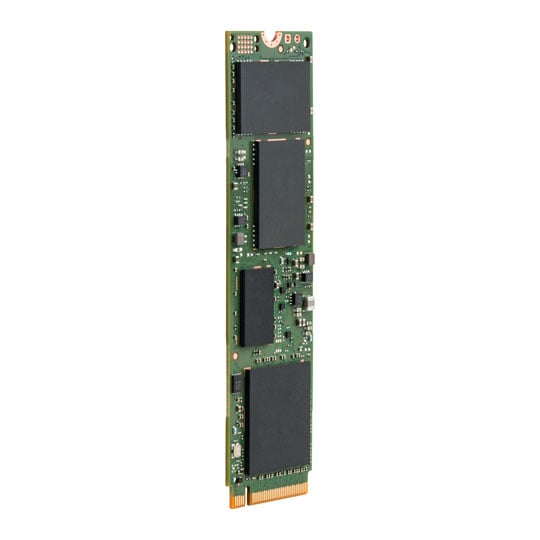

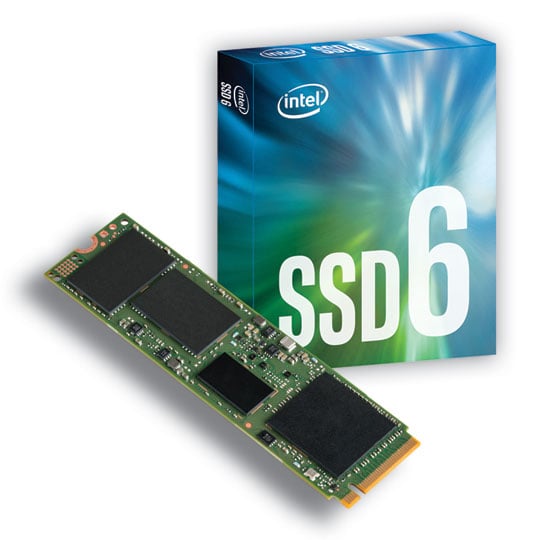

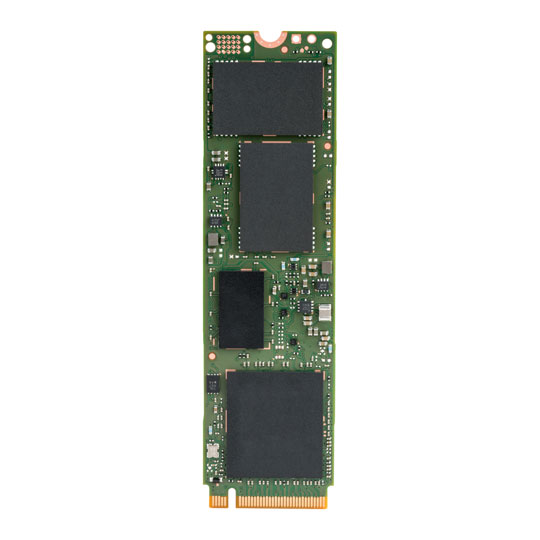

Intel 600p 256GB M.2 NVMe PCIe SSD/Solid State Drive
Experience a better PC with an Intel@ 3D NAND SSD and the fast PCIe interface.
PCIe for the Mainstream
The Intel Solid State Drive 600p Series is designed for the M.2 form factor with the PCIe* Gen3 x4, NVMe interface.
Designed for a range of devices from Ultrabooks to desktops and laptops, the Intel SSD 600p Series will effortlessly manage demanding consumer client applications and easily handle intense multi-tasking. The SSD 600p Series will take PCs to a new level of responsiveness with fast application launches and file loading.
Intel 3D NAND SSDs
The 600p Series is part of the Intel 3D NAND SSD family of products. Built on breakthrough 3D NAND, the Intel 3D NAND SSDs transform the economics of storage, and are delivered by a proven and trusted supplier.
The combination of 3D NAND and PCIe enables Intel SSDs to push the limits of performance and value.
Single-Sided for Design Flexibility
The 600p Series offers all capacity points, including 1TB, in the single-sided M.2 (80 mm) form factor, enabling system designers the flexibility for thinner and lighter systems or more space for other components.
Performance that Matters
The 600p Series accelerates platform performance with sequential reads of up to 1,800 megabytes and sequential writes of up to 560 megabytes per second (MB/s) and random read and write input/output operations (IOPS) of up to 155K and 128K, respectively.
With the SSD 600p Series integrated in the PC system, users will work more efficiently with the applications they care about, with up to 3x better performance than SATA SSDs.
Charge Your Device Less Often
The 600p Series provides extended battery life through low power modes. It reduces idle consumption by >90% compared to a typical hard disk drive, reducing power consumption from watts to milliwatts. When coupled with a 6th generation Intel Core processor-based platform, the advanced power mode settings reduce power consumption by another order of magnitude-from milliwatts to microwatts.
Quality & Reliability You Can Trust
The 600p Series is backed by Intel's five year limited warranty, including Intel's world-class post sales customer support. Features • Intel quality and reliability.
• Performance that matters.
• Single-sided capacities up to 1TB.
• M.2 (80 mm) form factor.
• Low power consumption.
• AES 256-bit self-encryption.
• Backed by Intel's five year warranty.
|Form Factor||M.2 (2280)|
|Interface||PCIe 3.0 (x4)|
|Host Controller Interface||NVMe|
|Flash Memory Type||3D TLC NAND|
|Max. Read||1570 MB/s|
|Max. Write||540 MB/s|
|DRAM Cache Memory||N/A|
|DRAM Cache Memory Type|
|Max. Random Read 4K||71,000 IOPS|
|Max. Random Write 4K||112,000 IOPS|
|Power Consumption (active)||100 mW|
|Max. Endurance Rating||72 TBW|
|Max. Operating Vibration||2.17 GRMS (5-700Hz) Max|
|Max. Non-operating Vibration||3.13 GRMS (5-800Hz) Max|
|Max. Operating Shock|
|Max. Non-operating Shock|
|Connectivity||1 x M.2 (PCIe)|
