Scan code: LN90075 Manufacturer code: GP-GSTFS30256GTTD

Gigabyte UD PRO 2.5" 7mm 3D Nand SSD/Solid State Drive SATA 6Gb

256GB Gigabyte UD PRO, 2.5" SSD, SATA 3.0 (6Gb/s), TLC 3D NAND, 256MB Cache, 530MB/s Read, 500MB/s Write, 70k/40k IOPS

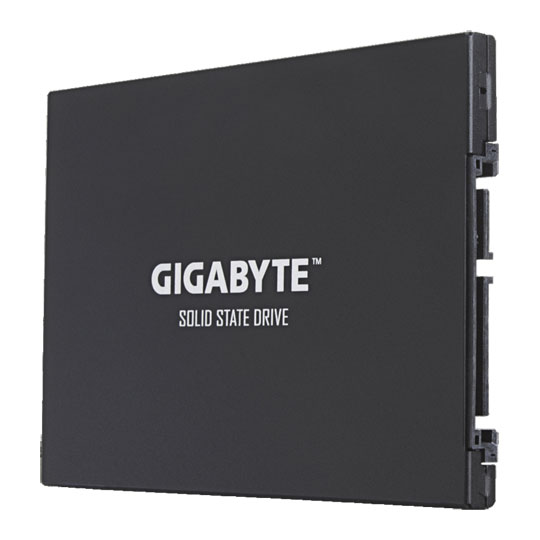

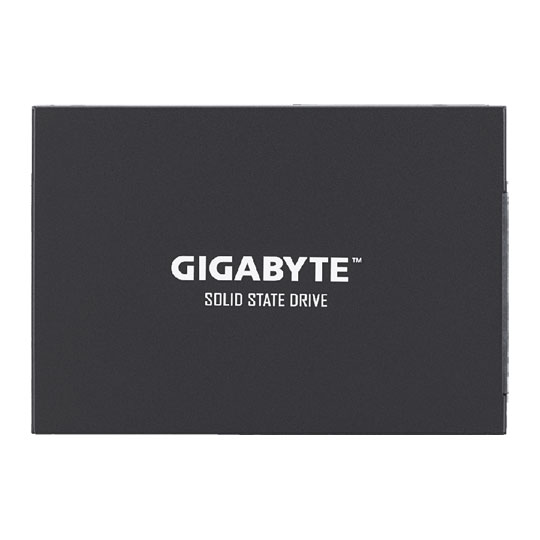

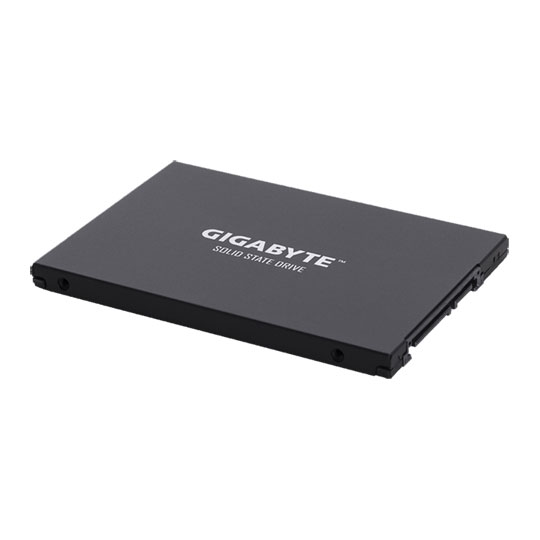

Thumbnail 1 : Gigabyte UD PRO 2.5" 7mm 3D Nand SSD/Solid State Drive SATA 6Gb Thumbnail 2 : Gigabyte UD PRO 2.5" 7mm 3D Nand SSD/Solid State Drive SATA 6Gb Thumbnail 3 : Gigabyte UD PRO 2.5" 7mm 3D Nand SSD/Solid State Drive SATA 6Gb
Scan code: LN90075 Manufacturer code: GP-GSTFS30256GTTD
Call for price
Delivery Options
  • By DPD On 17th Oct 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview Industry Leading 3D NAND Flash
GIGABYTE UD PRO series SSDs adopt 3D TLC NAND flash, which has higher bit capacity, R/W speed performance, endurance and reliability compared to 2D TLC flash. Moreover, with an optimized controller and firmware, GIGABYTE UD PRO series SSDs provide excellent performance for a smooth PC experience.

External DDR3L SDRAM Cache
The UD PRO SSD is equipped with high speed DDR3L SDRAM cache and does not need to reserve over-provisioning space, thus improving the random Read/Write performance. This means the users can use the full capacity of the drive. Moreover, external DRAM can be a buffer between controller and NAND flash for sustained performance when capacity is occupied by more and more data.

Reliability You Can Trust - 3 Years Limited Warranty
GIGABYTE UD PRO series SSDs possess both high data transferring speed and enhanced endurance, providing durable MTBF* of 1.8 million hours and 3 years or 100 TBW** limited warranty***. Features Specifications
Interface: SATA 6.0Gb/s
Form Factor: 2.5-inch internal SSD
Total Capacity: 256GB
Warranty: Limited 3-year or 100TBW
NAND: Toshiba BiCS3 3D TLC
External DDR Cache: 256MB
Sequential Read MB/s: Up to 530 MB/s
Sequential Write MB/s: Up to 500 MB/s
Random Read IOPS: Up to 70k
Random Write IOPS: Up to 40k
Dimension (W x H x L): 69.85 x 7 x 100 mm
Mean time between failure (MTBF): 1.8M hours
Power Consumption (Active): Average: R : 1930mW; W : 2430mW
Power Consumption (Idle): 170mW
Temperature (Operating): 0°C to 70°C
Temperature (Storage): -40°C to 85°C
Specifications
Capacity 256GB
Edition UD PRO
Form Factor 2.5"
Height 7 mm
Interface SATA 3.0 (6Gb/s)
Host Controller Interface AHCI
Controller
Flash Memory Type ToshiBa BiCS3 3D NAND TLC Flash
Max. Read 530 MB/s
Max. Write 500 MB/s
DRAM Cache Memory 256MB
DRAM Cache Memory Type DDR3L SDRAM
Max. Random Read 4K 70,000 IOPS
Max. Random Write 4K 40,000 IOPS
Latency N/A
Special Features Gigabyte SSD Tool Bbox Support
Power Consumption (active) 2.43W
Max. Endurance Rating 100TBW
MTBF 1,800,000 Hours
Max. Operating Vibration
Max. Non-operating Vibration
Max. Operating Shock
Max. Non-operating Shock
Connectivity 1 x SATA 3.0 (6Gb/s)
OS Support Windows OS
Bracket N/A
Dimensions 69.85 x 7 x 100 mm (WxHxD)
Weight
Package Type Retail
Additional Information
Scan Code LN90075
Model Number GP-GSTFS30256GTTD
GTIN 4719331803278
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
28 months
Manufacturer Contact Details
Manufacturer:
Gigabyte Uk
