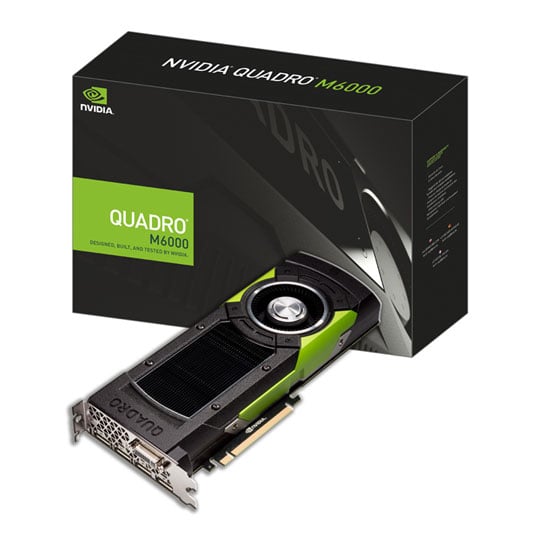

PNY NVIDIA 24GB M6000 Quadro Single Precision Pro Graphics Card

24GB PNY NVIDIA Quadro M6000, Maxwell, 3072 Cores, 384Bit, 317GB/s, 7.0 TFLOPS SingleP, 4xDP/DVI-I DL, Dual Slot, Retail

PNY
Scan code: LN71632 Manufacturer code: VCQM6000-24GB-PB Request call
£4,708.49
In stock
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
High End

There are 6 people viewing this product

Delivery options £5.48 By DPD On 7th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout
Product Overview The World’s Most Powerful Workstation Graphics Card

The NVIDIA M6000 24GB is the world’s most powerful workstation graphics card, giving you the extreme performance and on-board memory to take on your biggest visualization challenges.

Artists, animators, and editors can now work in realtime on their most complex projects with multiple layers and advanced effects. Plus, product designers and engineers don’t have to compromise on model complexity or image quality when working on large assemblies; they can now integrate interactive, physically based rendering and simulation to evaluate product design and functionality in entirely new ways. Geophysicists can also accelerate their time-to-insight in seismic exploration by holding substantially larger data sets in memory for faster processing and analysis.

Quadro cards are certified with a broad range of sophisticated professional applications, tested by leading workstation manufacturers, and backed by a global team of support specialists. This gives you the peace of mind to focus on doing your best work. Whether you’re developing revolutionary products or telling spectacularly vivid visual stories, Quadro gives you the performance to do it brilliantly.

PNY provides unsurpassed service and commitment to its professional graphics customers. In addition, PNY delivers a complete solution that includes the appropriate adapters, cables, brackets, driver software installation disc, and documentation to ensure a quick and successful install.

Quad-Display Support
A new display engine drives up to four displays and DisplayPort 1.2 support for ultra-high resolutions up to 4096x2160 @ 60 Hz with 30-bit color. NVIDIA SYNC allows multiple displays to be frame-locked together.

Real Interactive Expression
The NVIDIA Quadro M6000, accelerated by NVIDIA’s Maxwell™ GPU architecture, lets you conquer your most challenging visualization workloads with ease and enjoy interactive physically based rendering of your work.

24 GB GDDR5 GPU Memory With Ultra-Fast Bandwidth
24 GB of GDDR5 GPU memory with ultra-fast bandwidth allows you to create and render large, complex models and compute massive datasets.

Quadro M6000 Key Features:
• Four DisplayPort 1.2 Connectors
• DisplayPort with Audio
• One DVI-I Dual-Link Connector
• VGA Support (Via Adapter, 1x Included Only)
• Professional 3D Support
• NVIDIA 3D Vision™ Pro
• Quadro Sync Compatibility
• HD SDI Capture/Output Compatibility
• NVIDIA GPUDirect™ Support
• NVIDIA nView® Desktop Management Software Compatibility
• Stereo Connector
• HDCP Support
• NVIDIA Mosaic Mode
• Energy Star Enabling

Includes:
• 3 x DP to DVI (SL) adapter - P/N: QSP-DPDVISL
• DVI to VGA adapter - P/N: QSP-DVIVGA
• Stereo Connector - P/N: QSP-STEREOQ4000-PB Features GPU Performance Features

Maxwell Streaming Multiprocessor
The heart of Maxwell’ power efficient performance is its newly designed Streaming Multiprocessor which delivers incredible performance and unmatched power efficiency, through an improved instruction scheduler and new data path organization.

Maxwell Memory Architecture
Improved caching effectiveness and significant enhancements in memory compression techniques in Maxwell reduces traffic and provides higher performance for applications dependent on memory bandwidth. Additionally, Maxwell‘s dedicated shared memory per SM (separated from the L1 cache) and larger L2 cache, dramatically improves programmability and efficiency.

Viewport Multicast
Dedicated hardware to automatically broadcast input geometry to render to multiple render targets which drastically speeds up ‘multi projection(the ability of rendering the same scene from multiple view) leading to accelerated rendering for cube maps used in multi view projectors and 3D CAVE environments

Sparse textures
Virtualizes texture sizes enabling applications to seamlessly work with large and complex data sets regardless of the available frame buffer.

Accelerated Voxelization
Enhancements to voxel handling techniques enables fast voxelization which significantly accelerates workflows like fluid simulation and 3D Printing

Multiple Copy Engines
Enables the highest rates of parallel data processing and concurrent throughput between the GPU and host, accelerating techniques such as ray tracing, color grading and physical simulation.

Bindless Graphics
Optimizes GPU utilization by dramatically reducing CPU-GPU interactions, enabling developers to implement more sophisticated and complex algorithms providing end users greater performance and higher levels of visual fidelity.

H.264 and HEVC encoder
Dedicated H.264 and HEVC encode engine that is independent of 3D/compute pipeline and delivers faster than real-time performance for transcoding, video editing, and other encoding applications.

NVIDIA® CUDA® Architecture
Parallel-computing architecture that tightly integrates advanced visualization and compute features to significantly accelerate professional workflows.

NVIDIA® Scalable Geometry Engine
Dramatically improves geometry performance across a broad range of CAD, DCC and medical applications, enabling you to work interactively with models and scenes that are an order of magnitude more complex than ever before.

Dynamic Parallelism
Simplifies GPU programming by allowing programmers to easily accelerate all parallel nested loops – resulting in a GPU dynamically spawning new threads on its own without going back to the CPU.

Large Framebuffers with Ultra-Fast Bandwidth
Large GPU memory with fast bandwidth for display of complex models and scenes, as well as computation of large datasets.

PCI Express 3.0 Compliance
Supports data transfer rate up to 8 GT/sec per lane for an aggregate bandwidth of 32 GB/sec bi-directional (16 GB/sec in each direction.)

Error Correcting Code (ECC) on Graphics Memory
Meets strict requirements for mission critical applications with uncompromised computing accuracy and reliability for workstations. Offers enhanced application data integrity protection through single bit memory error correction.

Unified Driver Architecture (UDA)
Guarantees forward and backward compatibility with software drivers, simplifying upgrading to a new Quadro solution whenever you're ready.

Remote Workstation Application Acceleration
Remotely interact with professional GPU-accelerated applications through software such as Microsoft RDP, Splashtop, and HP Remote Graphics Software.

Ultra-Quiet Design
Silent cooling design enables lower acoustics for an ultra-quiet desktop environment.

NVIDIA® GPU Boost
Automatically maximizes application performance in real time while staying within the power and thermal envelope of the card.

Image Quality

Multi-pixel Programmable Sampling
Maxwell features multi-pixel programmable sampling, increasing sample flexibility and improved sample randomization which reduces quantization artifacts. This results in superior image quality without penalizing performance.

Full-Scene Antialiasing (FSAA)
Up to 64X FSAA (up to 128X with SLI) for dramatically reducing visual aliasing artifacts or "jaggies," resulting in unparalled image quality and highly realistic scenes.

NVIDIA® FXAA and TXAA
Reduces visible aliasing and delivers higher image quality without the performance hit by harnessing the power of the GPU's CUDA cores and new film-style AA techniques.

16K Texture and Render Processing
Provides the ability to texture from and render to 16K x 16K surfaces. Beneficial for applications that demand the highest resolution and quality image processing.

Display Features

NVIDIA® Quadro® Mosaic Technology
Enables transparent scaling of the desktop and applications across up to 16 displays from 4 GPUs from a single workstation while delivering full performance and image quality.

Multi-Display Support
The all-new display engine in the NVIDIA GPU drives up to four displays simultaneously, whether they’re directly connected to the board or connected using a single cable using DisplayPort 1.2’s new multi-streaming capabilities. With support for the next-generation DisplayPort 1.2 standard, each DisplayPort connector is capable of driving ultra-high resolutions of 4096x2160 @ 60 Hz with 30-bit color. Additionally, the M6000 can support up to two 5K monitors @60Hz, or a single 8K projector per card. The flexible display connectivity of the Quadro family makes it easy to deploy multiple displays across a desktop, build an expansive digital signage wall, or create a sophisticated stereoscopic 3D CAVE environment.

NVIDIA® nView® Advanced Desktop Software
This software delivers maximum flexibility for single large display or multi-display options, providing unprecedented end-user control of the desktop experience for increased productivity.

DisplayPort 1.2 Support (with Audio)
Compact and secure DisplayPort 1.2 connectors support multi-stream technology, stream cloning and ultra-high-resolution panels (up to 4096 x 2160 @ 60Hz ). This enables maximum range, resolution, refresh rate, and color depth designed to support the latest display technologies.

Quadro Sync
Synchronizes the display and image output from one system or across a cluster of multiple systems. The Quadro Sync board manages up to 16 displays from 4 GPUs in one system, reducing the number of machines needed to power a video wall or multi-projector visualization environment, image and frame synchronization between up to four GPUs when running Quadro Mosaic or independent GPUs in cluster. Quadro Sync also allows synchronization to an external timing source (also known as genlock or house sync). Quadro Sync enables advanced visualization systems to scale the resolution of the display surface with multiple projectors or displays with standard applications or applications designed for clusters.

NVIDIA 3D Vision® and 3D Vision Pro
Advanced active shutter glasses that deliver crystal-clear stereoscopic 3D visualization for the most immersive experience. Infrared (3D Vision) or RF (3D Vision Pro) technology enable a range of immersive environments from your desktop workstation to collaborative work spaces. 3D Vision and 3D Vision Pro are sold separately.

OpenGL Quad Buffered Stereo Support
Provides a smooth and immersive 3D Stereo experience for professional applications.

Professional 3D Stereo Synchronization
Enables robust control of stereo effect through a dedicated three-pin mini-din connection to directly synchronize 3D stereo hardware to Quadro graphics card.

Deep Color Processing and Display
Preserve color detail and precision throughout the processing and display pipeline for smooth gradients transitions, even on high dynamic range imagery. Each color component can be processed at up to 32-bit floating point precision and displayed at up to 12-bit precision with supported DisplayPort 1.2 or HDMI 2.0 displays.

Software Support

NVIDIA® CUDA® Parallel Computing Platform
CUDA is a parallel computing platform that uses standard programming languages like C/C++ and Fortran, and APIs such as OpenCL, OpenACC and Direct Compute. This broad adoption of CUDA accelerates techniques like ray tracing, video and image processing, and computation fluid dynamics.

NVIDIA® GPUDirect for Video
Allows 3rd party hardware to communicate directly with NVIDIA GPUs. By taking advantage of this new API the historical issues of introducing too much delay or latency are gone. With NVIDIA GPUDirect for Video, devices are fully synchronized and the CPU doesn't waste cycles copying data between device drivers.

NVIDIA Enterprise-Management Tools
Exhaustive tools for maximizing your system uptime by enabling seamless wide-scale deployment. This allows remote query and control of graphics and display settings for systems spread across installations.

Multi-GPU Technology

NVIDIA® Multi-GPU Technology
NVIDIA Multi-GPU powered workstations combine the visualization and interactive design capability of multiple GPUs, by leveraging the combination of Quadro and/or Tesla GPUs to intelligently scale the performance of your application and dramatically speed up your production workflow.

NVIDIA® SLI® Technology
Leverages multiple GPUs to dynamically scale graphics performance, enhance image quality, expand display real estate, and assemble a fully virtualized system. Available on SLI-certified workstations and servers only.
Specifications
Specifications
Graphics Chipset Quadro M6000
Edition
Microarchitecture Maxwell
GPU Name
NVIDIA CUDA Cores 3072
Memory Size 24 GB
Memory Bit Rate 384 Bit
Memory Bandwidth 317 GB/s
Memory Type GDDR5
ECC Technology Yes
Single Precision Processing Yes
Single Precision Performance 7.0 teraFLOPS
Double Precision Processing No
Double Precision Performance N/A
Concurent Users N/A
H.264 1080p30 Streams N/A
Cooling Single Fan (1)
Graphics Interface PCIe 3.0 (x16)
Graphics Output
  • 3 x Display Port 1.2
  • 1 x Display Port 1.2 (with Audio)
  • 1 x DVI-I DL
Maximum Digital Resolution 4096x2160 @ 60Hz
Maximum VGA Resolution 2048x1536 @ 85Hz
SLi 4 Way SLi
Multi Monitor 4 Displays
HDCP Ready Yes
Supported Compute APIs
  • CUDA
  • DirectCompute
  • OpenCL
Supported Graphics APIs
  • DirectX 12.0
  • OpenGL 4.5
  • Shader Model 5.0
Microsoft DirectX Support 12 API with Feature Level 12.0
Form Factor
  • Dual Slot
  • Full Height
Low Profile Compatible No
Low Profile Support
Board Power 250 W
Graphics Card Power Connectors 1 x 8-pin PCIe
Minimum Recommended PSU
Maximum GPU Temperature
Dimensions 112.2 x 266.7 mm
Package Type Retail
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
120 months
