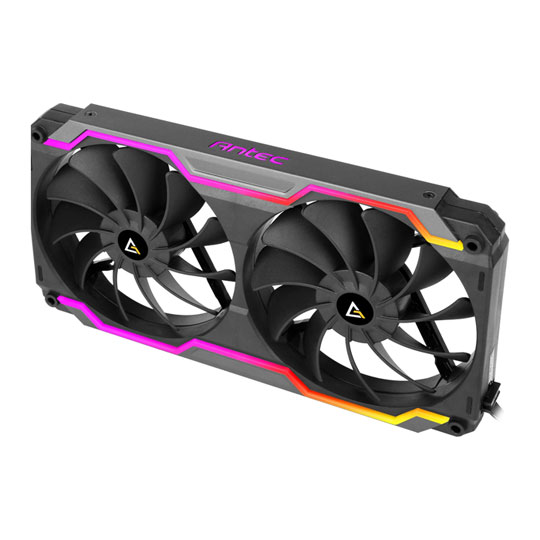

Antec Prizm Cooling Matrix Dual 120mm Fan

240mm Antec Prizm Cooling Matrix, 2x 120mm Fans, ARGB, Upto 1800RPM, Upto 77.2CFM Airflow, 32.9dB Max, PWM

Thumbnail 1 : Antec Prizm Cooling Matrix Dual 120mm Fan Thumbnail 2 : Antec Prizm Cooling Matrix Dual 120mm Fan Thumbnail 3 : Antec Prizm Cooling Matrix Dual 120mm Fan Antec Prizm Cooling Matrix Dual 120mm Fan : video thumbnail 1
Scan code: LN96561 Manufacturer code: 0-761345-77518-2
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 17th Dec To 19th Dec to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview Prizm cooling matrix is the first of its kind in the performance PC market. Unlike conventional case fans, prizm cooling matrix is a completely innovative, single bracket dual fan housing assembly with two 120mm fans connected simultaneously. Prizm Cooling Matrix not only enhances the thermal performance of PC builds but also provides users a stunning visual feast. Combined with 240 mm radiators, Prizm Cooling Matrix can show you the brilliant cooling capability.

The Prizm Cooling Matrix is fully modular. It shortens the time of installation. The flat wire design also makes cable management easy. The package of Prizm Cooling Matrix comes with an addressable RGB LED controller. You can change the colours and lighting modes at will, and the last, you can also connect the Prizm Cooling Matrix with the motherboard to change the LED lighting and have them work in sync.

The Prizm matrix can be added to either your case or a 240mm water cooling radiator with ease. Features • Dual 120mm fans.
• ARGB Logo and Trim.
• External Control box.
• Motherboard Sync.
• Compatible with Asus Aura Sync / MSI Mystic Light / Gigabyte RGB Fusion / Asrock Polychrome.
Pack Information
Edition Prizm Cooling Matrix
Pack Type
Includes 2 x 120mm Fan/s
Individual Fan Specifications
Fan Diameter 120mm
Fan Depth 26 mm
Fan Speed 500 min / 1000 / 1800 max rpm
Fan Blades
Fan Specialization
Airflow 21.7 min /43.53 / 77.22 max CFM
Air Pressure 0.15 min / 0.6 / 1.83 max mm H²O
Sound Level (dBA) 15.6 min / 18.1 / 32.9 max dBA
Sound Level (Sone)
Motor Type
Bearing Type Hydraulic Bearing
Manual Speed Controller No
Fan Colour
LED Colour
MTBF 45000 Hours
Fan Fixing
Cable length
  • 1 x 3-pin
  • 1 x 4-pin
Additional Information
Scan Code LN96561
Model Number 0-761345-77518-2
GTIN 0761345775182
