Scan code: LN119459 Manufacturer code: MZ7L3240HCHQ-00A07

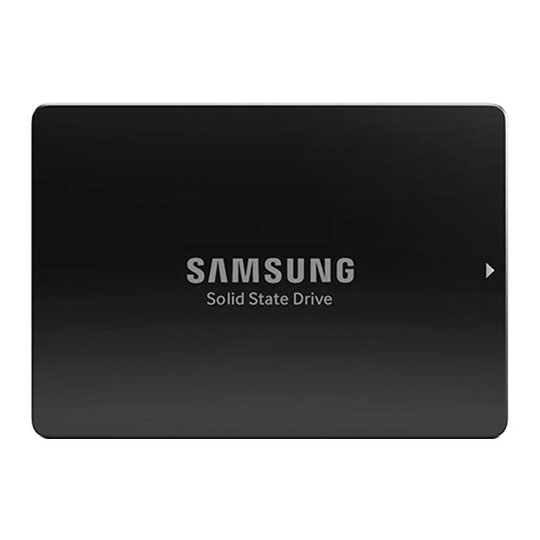

Samsung PM893 240GB 2.5" SATA3 Enterprise SSD/Solid State Drive

240GB Samsung PM893 2.5" Enterprise SSD, SATA 3.0 (6Gb/s), V6 TLC V-NAND, 560MB/s Read, 530MB/s Write, 98k/31k IOPS

Thumbnail 1 : Samsung PM893 240GB 2.5" SATA3 Enterprise SSD/Solid State Drive Thumbnail 2 : Samsung PM893 240GB 2.5" SATA3 Enterprise SSD/Solid State Drive
Scan code: LN119459 Manufacturer code: MZ7L3240HCHQ-00A07
£87.98
Order now and get it tomorrow, Thu 21st Oct
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 21st Oct to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

240GB Samsung PM893 SATA 3.0 Enterprise SSD

Samsung PM893 SSD

SATA Interface Saturating Performance Samsung's PM893 SSDs deliver performance up the maximum allowable for SATA attached drives: up to 560 MB/sec sequential access, and up to 98,000 IOPS for 4 kbyte random read access. Maximum performance not only allows your workloads to complete a quickly as possible, but also allows efficient shared use of high capacity drives, to maximize the performance per gigabyte of data stored. Samsung's PM893 SSDs keep your private data confidential, with encryption via a hardware based AES-XTS 256-bit encryption engine, and management via the TCG Opal 2.0 standard.

Interface

SATA 3.0 (6Gb/s) Interface

read and write speeds

Read up to 560 MB/sec Seq. Write up to 530 MB/sec Seq.

IOPS

Max.Random Read 98K
Max.Random Write 31K IOPS

Enterprise Power Loss Protection

Samsung PM893 SSD

Hardware Encryption Engine Samsung's PM893 SSDs include enterprise power loss protection (PLP). During normal power-off periods, the host server allocates time to preserve data integrity by transmitting a standby command to each device. In the event of an unexpected power loss, though, the cached data in a storage device's internal DRAM buffers can be lost. This can occur with unexpected power outages, or when users unplug devices from the system.
However, the Samsung PM893 SSDs have been designed to prevent data loss resulting from unexpected power shutdowns with its PLP architecture. Upon detection of a failure, the SSD immediately uses the stored energy from their PLP capacitors to provide enough time to transfer the cached data in DRAM to the flash memory, ensuring no loss of data.

Specifications
Capacity 240GB
Edition PM893
Form Factor 2.5"
Height
Interface SATA 3.0 (6Gb/s)
Host Controller Interface
Controller
Flash Memory Type None
Max. Read 560 MB/s
Max. Write 530 MB/s
DRAM Cache Memory N/A
DRAM Cache Memory Type
Max. Random Read 4K 98K IOPS
Max. Random Write 4K 31K IOPS
Latency N/A
Special Features
Power Consumption (active) 3.2W Write, 2.1W Read
Max. Endurance Rating
MTBF 2,000,000 Hours
Max. Operating Vibration
Max. Non-operating Vibration
Max. Operating Shock
Max. Non-operating Shock
Connectivity
  • 1 x M.2
  • 1 x SATA 3.0 (6Gb/s)
OS Support
Bracket N/A
Dimensions 70 x 7 x 100 mm (WxHxD)
Weight
Package Type
Additional Information
Scan Code LN119459
Model Number MZ7L3240HCHQ-00A07
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
7 days
RTB Period:
1 months
Manufacturer Contact Details
Manufacturer:
Samsung/LCD Nvidia/Scan
Telephone:
0330 (7267864)
