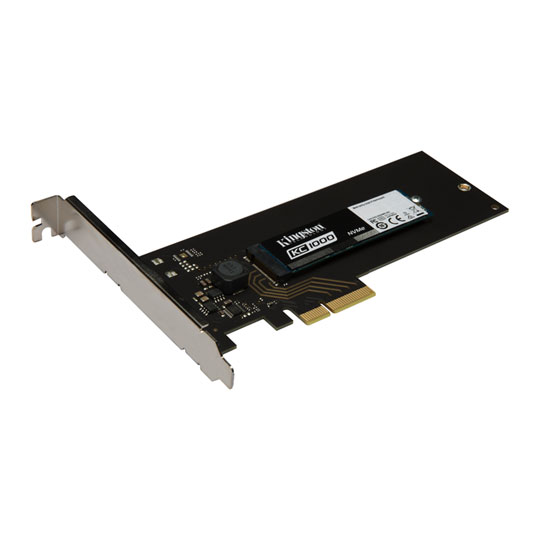

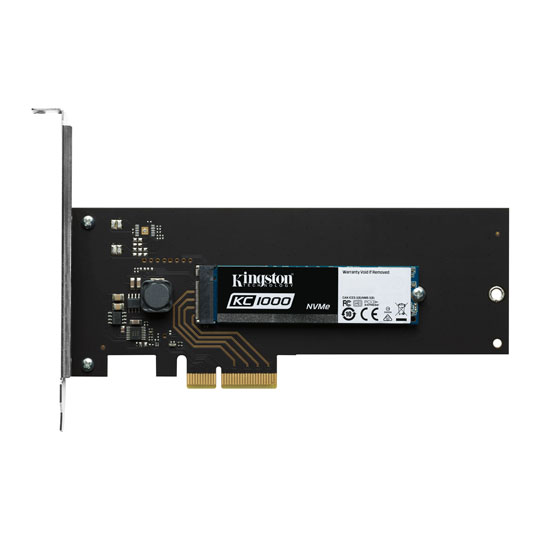

Kingston KC1000 240GB NVMe PCIe AIC SSD/Solid State Drive

240GB Kingston KC1000 AIC SSD, HHHL PCIe 3.0 (x4), NVMe 1.2, MLC NAND, 2700MB/s Read, 900MB/s Write, 190k/160k IOPS

Kingston
Scan code: LN82398 Manufacturer code: SKC1000H/240G Request call
Call for price
High End
Delivery options £5.48 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview Exceptional Performance for Systems with NVMe Support
Kingston’s KC1000 solid-state drive is a high-performance PCIe NVMe™ solution that is over 2x faster than SATA-based SSDs and 40x faster than a 7200RPM hard-disk drive. Using a PCIe Gen 3.0 x4 interface and an 8-channel Phison PS5007-E7 controller, this drive features 8 cores and 2x the DRAM to help power users blaze through even the toughest projects with high-speed data transfers of up to 2500MB/s.

KC1000 uses native OS drivers and is NVMe 1.2 compliant which allows users to take full advantage of the high throughput, IOPS and low latency that is available to systems that support NVMe. This protocol was designed specifically to support Flash-based storage versus SATA, which was developed for traditional spinning disks. It removes performance bottlenecks and provides the system with instant access to the device once the SSD is installed.

KC1000 is easily installed in either a standard M.2 or PCI Express socket using the M.2 2280 or the half-height, half-length add-in card for greater design-in flexibility when used by system builders. There is a range of capacities available from 240GB to 960GB, and the KC1000 is backed by a limited five-year warranty and legendary Kingston support. Features • Superior Client SSD Performance: Outperforms traditional hard drive and SATA-based SSDs.
• Uses NVMe Protocol: Designed for SSD, unlike legacy SATA which was developed for hard-disk drives.
• Multiple Form Factors: Available in either M.2 2280 or Half-Height, Half-Length Add-in Card (HHHL AIC).
• Multiple Capacities: Available in a range of capacities from 240GB to 960GB to meet your data storage requirements.
Specifications
Capacity 240GB
Edition KC1000
Form Factor HHHL
Height
Interface PCIe 3.0 (x4)
Host Controller Interface NVMe 1.2
Controller Phison PS5007-E7
Flash Memory Type MLC NAND
Max. Read 2700 MB/s
Max. Write 900 MB/s
DRAM Cache Memory N/A
DRAM Cache Memory Type
Max. Random Read 4K 190,000 IOPS
Max. Random Write 4K 160,000 IOPS
Latency N/A
Special Features
Power Consumption (active) 7.4W
Max. Endurance Rating 300TB TBW
MTBF 2,000,000 Hours
Max. Operating Vibration 2.17G peak (7-800Hz)
Max. Non-operating Vibration 20G peak (20-1000Hz)
Max. Operating Shock
Max. Non-operating Shock
Connectivity 1 x PCIe 3.0 (x4)
OS Support
Bracket Includes Full Height & Low Profile Brackets
Dimensions
Weight
Package Type Retail
Warranty
