Scan code: LN106977 Manufacturer code: USW-PRO-24-POE

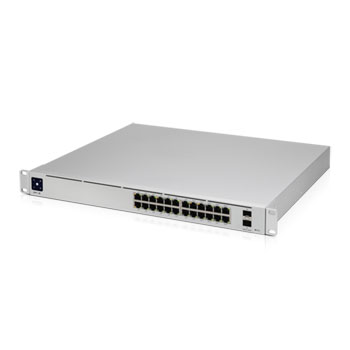

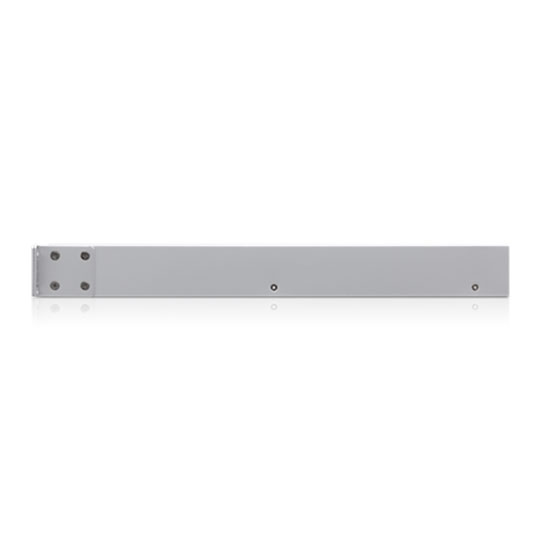

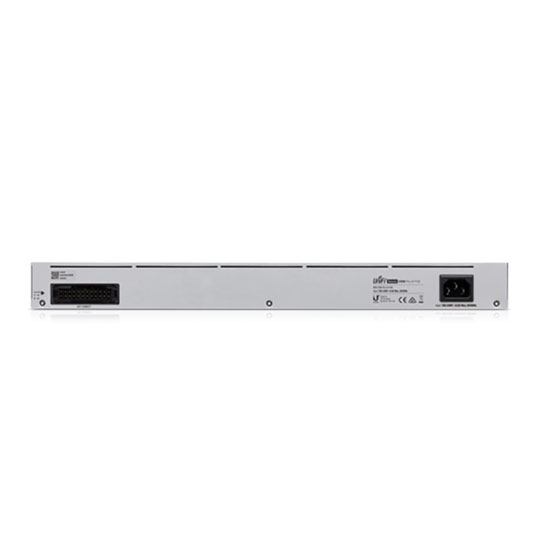

Ubiquiti USW-PRO-24-POE Gen2 24-Port PoE+ Switch

24 Port Ubiquiti USW-PRO-24-POE Gen2 Gigabit Managed PoE+ Switch, 10Gb SFP+, GbE, 57V

Thumbnail 1 : Ubiquiti USW-PRO-24-POE Gen2 24-Port PoE+ Switch Thumbnail 2 : Ubiquiti USW-PRO-24-POE Gen2 24-Port PoE+ Switch Thumbnail 3 : Ubiquiti USW-PRO-24-POE Gen2 24-Port PoE+ Switch Thumbnail 4 : Ubiquiti USW-PRO-24-POE Gen2 24-Port PoE+ Switch
Scan code: LN106977 Manufacturer code: USW-PRO-24-POE
£719.99Item due tomorrow
Due tomorrow
From £20.00 / month (APR 0%)
Monthly Payment: £60.00
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £719.99
Total inc. interest: £719.99
Monthly Payment: £30.00
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £719.99
Total inc. interest: £719.99
Monthly Payment: £20.00
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £719.99
Total inc. interest: £719.99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

24-port Switch with (16) 802.3at PoE+ ports, (8) 802.3bt PoE++ Ports, and (2) 10 GB SFP+ Ports. Powerful Second-Generation UniFi Switching

UniFi Switch Pro 24 PoE is a fully managed Layer 3 switch with (8) 802.3bt (PoE++) and (16) 802.3at (PoE+) Gigabit Ethernet ports. (2) 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability. The UniFi Switch Pro 24 PoE features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server.The UniFi Switch Pro 24 PoE is the ideal access layer switch for any UniFi solution as it combines up to 400W of near-silent PoE power with UniFi SmartPower RPS power redundancy. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.

Features

• (8) Gigabit RJ45 802.3bt PoE++ ports.
• (16) Gigabit RJ45 802.3at PoE+ ports.
• (2) 10G SFP+ ports.
• Layer 2 and Layer 3* features.
• 400W maximum PoE power.
• UniFi SmartPower RPS DC input.
• Near-silent cooling.
• 1.3" touchscreen display.
• Managed by UniFi Network Controller.

Specifications
Edition Smart Managed Switch
Form Factor 1U
Total Network Ports
  • 24 x 10/100/1000 (Gigabit) RJ-45
  • 2 x SFP+
PoE Support Type PoE+
No. of Ports Providing PoE 24 x 10/100/1000 (Gigabit) RJ-45
Other Non-Network Ports
Switching Capacity 88Gbps
Non-Blocking Throughput 44Gbps
Forwarding Rate 65.472Mbps`
MAC Address Table Size
Network Capacity
Built-in Flash Memory
RAM Memory
Network Protocols
  • 802.3af PoE
  • 802.3at PoE
Acoustic Noise
Max. Power Consumption 50 W
Max. PoE Wattage per Port 32-64 W
Mean Time Between Failures (MTBF)
Power Supply Internal AC Power Supply
Material
Includes
Dimensions (WxHxD) 442.4 x 43.7 x 285.4 mm
Weight 4.3 kg
Additional Information
Scan Code LN106977
Model Number USW-PRO-24-POE
GTIN 0817882027649
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Direct
Manufacturer Contact Details
Manufacturer:
Ubiquiti
