Scan code: LN106975 Manufacturer code: USW-24-POE

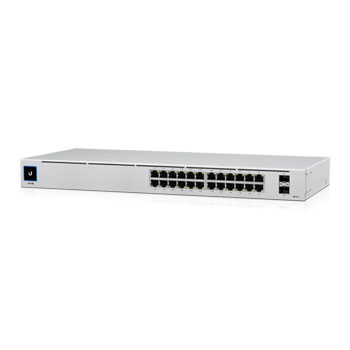

Ubiquiti USW-24-POE Gen2 24-Port PoE+ Switch

24 Port Ubiquiti USW-24-POE Gen2 Gigabit Managed PoE+ Switch 57V

Thumbnail 1 : Ubiquiti USW-24-POE Gen2 24-Port PoE+ Switch Thumbnail 2 : Ubiquiti USW-24-POE Gen2 24-Port PoE+ Switch Thumbnail 3 : Ubiquiti USW-24-POE Gen2 24-Port PoE+ Switch Thumbnail 4 : Ubiquiti USW-24-POE Gen2 24-Port PoE+ Switch
Scan code: LN106975 Manufacturer code: USW-24-POE
RRP: £407.99
£379.99Item due today
Due today
From £18.24 / month (APR 14.9%)
Monthly Payment: £34.12
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £379.99
Total inc. interest: £409.34
Monthly Payment: £18.24
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £379.99
Total inc. interest: £437.73
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

The USW-24-POE is a configurable Gigabit Layer 2 switch with twenty-four Gigabit Ethernet ports including sixteen auto-sensing 802.3at PoE+ ports, and two SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-24-POE features a 1.3" touch LCM to provide status information. With a depth of 7.9", the compact fanless design can be easily installed in a SOHO rack cabinet.

Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-24-POE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

Features

Works with UniFi Network Controller
• Manage Your Networks from a Single Control Plane.
• Intuitive and Robust Configuration, Control and Monitoring.
• Remote Firmware Upgrade.
• Users and Guests.
• Guest Portal/Hotspot Support.

Specifications
Edition UniFi
Form Factor 1U
Total Network Ports
  • 24 x 10/100/1000 (Gigabit) RJ-45
  • 2 x SFP
PoE Support Type PoE+
No. of Ports Providing PoE 16 x 10/100/1000 (Gigabit) RJ-45
Other Non-Network Ports
Switching Capacity
Non-Blocking Throughput
Forwarding Rate
MAC Address Table Size
Network Capacity
Built-in Flash Memory
RAM Memory
Network Protocols
  • 802.3af PoE
  • 802.3at PoE
Acoustic Noise
Max. Power Consumption
Max. PoE Wattage per Port 32 W
Mean Time Between Failures (MTBF)
Power Supply Internal AC Power Supply
Material
Includes
Dimensions (WxHxD) 424.4 x 43.7 x 200 mm
Weight 3 kg
Additional Information
Scan Code LN106975
Model Number USW-24-POE
GTIN 0817882028554
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Warranty information has not yet been updated for this product. For further information please call 0871 472 4747 or 01204 474747.
