tp-link 24-Port SG3428XMPP Omada Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch
tp-link 24-Port SG3428XMPP Omada Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch
Scan code: LN154715 Manufacturer code: SG3428XMPP
£585.98Stock arrives 1-3 days from time of order
Pre Order
ETA 1-3 days
  • Thumbnail 1 : tp-link 24-Port SG3428XMPP Omada Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch
  • Thumbnail 2 : tp-link 24-Port SG3428XMPP Omada Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch
  • Thumbnail 3 : tp-link 24-Port SG3428XMPP Omada Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch
  • Thumbnail 4 : tp-link 24-Port SG3428XMPP Omada Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch

tp-link 24-Port SG3428XMPP Omada Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch

24-Port tp-link Omada SG3428XMPP Managed Switch, 500W Budget, 24 x 10/100/1000 Mbps RJ45 (24x PoE+), 4x 10 GbE SFP+
MORE INFO
MORE INFO

Scan code: LN154715 Manufacturer code: SG3428XMPP
£585.98
£5.48 Next day delivery
Stock arrives 1-3 days from time of order
Pre Order
ETA 1-3 days
Pay in 3 interest-free payments of £195.33

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • From £20.52 / month (APR 16.9%) for 36 months or 0% for 4 months
  • With a 10% deposit from just £14.64 / month (APR 15.9%)
  • SCANPROTECT Protect against installation damage for 28 days.

Suggested Alternatives

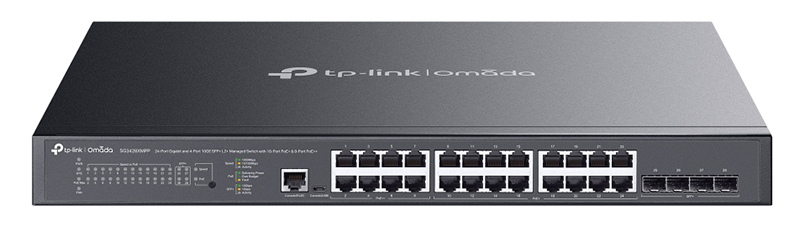

Omada 24-Port Gigabit & 4-Port 10GE SFP+ L2+ Managed Switch from tp-link

Omada 24-Port Gigabit & 4-Port 10GE SFP+ L2+ Managed Switch from tp-link

Power Your Network The SG3428XMPP is an Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch featuring 8 Gigabit PoE++ ports (up to 90W each) and 16 Gigabit PoE+ ports (up to 30W), delivering a 500W total PoE budget for powering high-demand devices like PTZ cameras, APs, and smart lighting. It offers centralised cloud management via web or Omada app, plus standalone options via CLI/SNMP, with advanced features including static routing, VLANs, ACLs, QoS, IGMP snooping, ERPS, and robust security. Build scalable 10G networks effortlessly with its rack-mountable metal design and seamless SDN integration.

tp-link logo

Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++

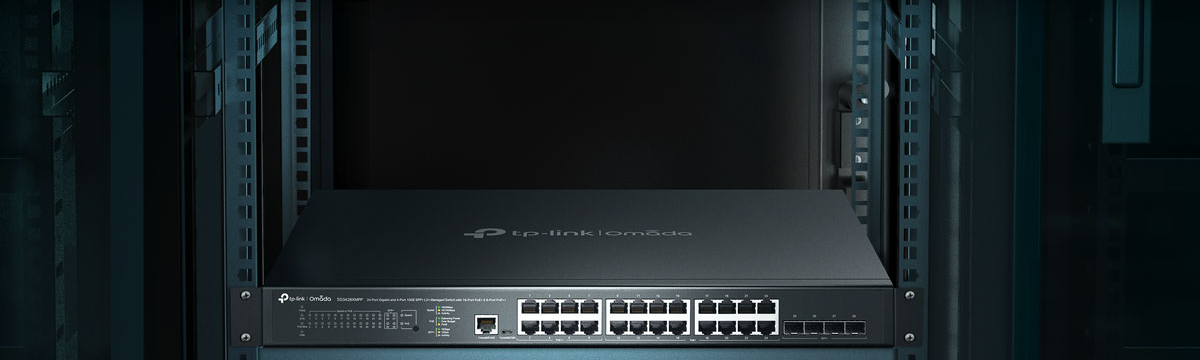

Key visual of Omada 28 port smart switch fixed into a rack.
PoE icon.

24× Gigabit RJ45 Ports (8× PoE++, 16× PoE+).

10G SPF+ icon.

4× 10 Gbps SFP+ Slots.

90W power icon.

500 W Total PoE Budget (Max 90 W for Each PoE++ Port).

Zero-Touch Provisioning icon.

Zero-Touch Provisioning.

Cloud management icon.

Centralised Management.

Omada App icon.

Omada App.

Static Routing icon.

Static Routing.

Ethernet Ring Protection Switching icon.

Ethernet Ring Protection Switching.

Empowering the High-Power Devices with Gigabit PoE++ Ports

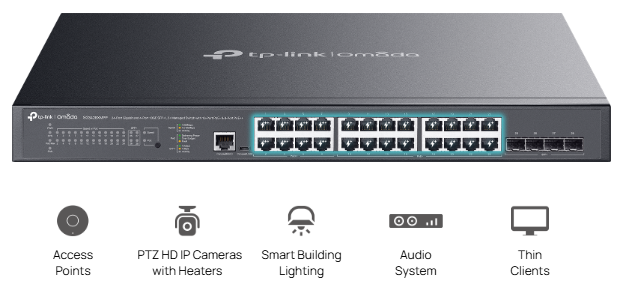

PoE+ and PoE++ ports highlighted on the Omada managed switch.

8× Gigabit PoE++ RJ45 Ports

16× Gigabit PoE+ RJ45 Ports

Budget Up to 90W per PoE++ Port

Total 500W PoE Power

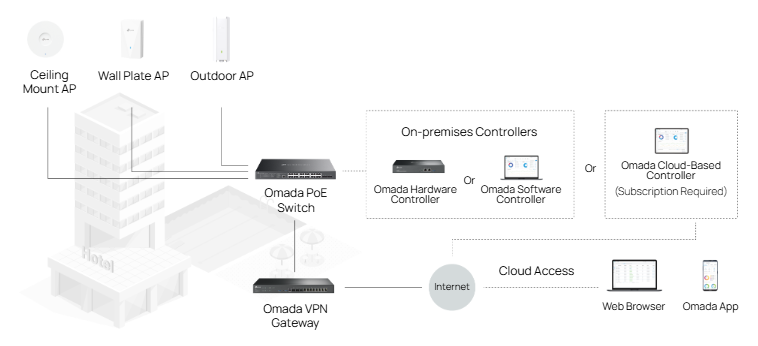

Software Defined Networking (SDN) with Cloud Access

Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

Software Defined Networking (SDN) with Cloud Access

Multiple Application Scenarios

SurveillanceWorks with IP Cameras.

Conference CallWorks with IP Phones.

Wi-Fi CoverageWorks with Access Points.

Wired ConnectionsWorks with Non-PoE Devices such as PCs and Printers.

Specifications
Edition
Form Factor Rackmount
Total Network Ports
  • 24 x 10/100/1000 (Gigabit) RJ-45
  • 4 x 1G/10G (SFP+)
PoE Support Type
No. of Ports Providing PoE 24 x 10/100/1000 (Gigabit) RJ-45
Other Non-Network Ports
  • 1 x Console (RJ45)
  • 1 x Micro-USB Console
Switching Capacity 128 Gbps
Non-Blocking Throughput
IDS/IPS Throughput
Forwarding Rate 95.23 Mpps
MAC Address Table Size 16 K Entries
Network Capacity
Networking Features
  • DHCP Server
  • Dynamic Routing
  • IGMP Snooping
  • Quality of Service (QoS)
  • Static Routing
Network Protocols
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3bt
VPN Support
Security Features IP and MAC Address Binding
Built-in Flash Memory
RAM Memory
Acoustic Noise
Max. Power Consumption 605.5 W
Max. PoE Wattage per Port Ports 1-8 (90 W PoE per Port) / Ports 9-24 (30 W PoE per Port) W
Mean Time Between Failures (MTBF)
Power Supply Internal AC Power Supply
Material
Includes
Dimensions (WxHxD) 440 x 44 x 330 mm
Weight
Additional Information
Scan Code LN154715
Model Number SG3428XMPP
GTIN 8885020620863
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
60 months
Type:
Direct
DOA Period:
28 days
Manufacturer Contact Details
Manufacturer:
TP-LINK
Telephone:
0845 147 0017 (UK) or 0818 229 000 (Ireland)
