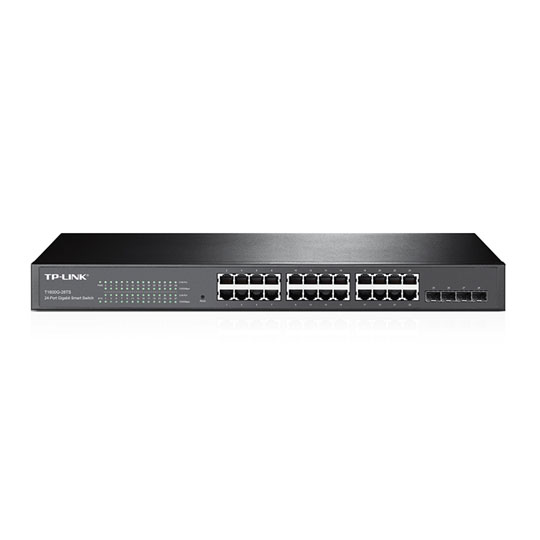

TP-LINK 24 Port Gigabit Ethernet +4 SFP Smart Managed Switch T1600G-28TS
24 Port TP-LINK, JetStream Gigabit Smart Switch with 4 SFP Slots, 56Gbps Bandwidth, 24x 10/100/1000, 4x SFP Ports
Advanced QoS Features
To integrate voice, data and video service on one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter free. In conjunction with the Voice VLAN the switch supports, the voice applications will operate with much smoother performance.
Abundant L2 and L2+ Features
For more application of L2 switches, T1600G-28TS supports a complete lineup of L2 features, including 802.1Q tag VLAN, Port Isolation, IP-MAC-Port Binding, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Group and 802.3x Flow Control function. Besides, the switch provides advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Moreover, T1600G-28TS supports L2+ feature—static routing, which is a simple way to provide segmentation of the network with internal routing through the switch and helps network traffic for more efficient use.
T1600G-28TS supports various IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discovery.
Enterprise Level Management Features
T1600G-28TS is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface(GUI) or industry-standard Command Line Interface(CLI), SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events. And it also supports Dual Image,which provides reduced down-time for the switches, when the image is being upgraded / downgraded. Features • Gigabit Ethernet connections on all ports provide full speed of data transferring.
• L2+ Feature——Static Routing, helps route internal traffic for more efficient use of network resources.
• Integrated security strategy including 802.1Q VLAN, Port Security and Storm control help protect LAN area investment.
• L2/L3/L4 QoS and IGMP snooping optimize voice and video applications.
• IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbour discovery.
• WEB/CLI managed modes, SNMP, RMON and Dual Image bring abundant management features.
|Total Network Ports||
|PoE Support Type|
|No. of Ports with PoE|
|Other Non-Network Ports|
|Forwarding Performance/Bandwidth||56 Gbps|
|MAC Address Table Size|
|Built-in Flash Memory|
|Max. Power Consumption||23.2 W|
|Mean Time Between Failures (MTBF)|
|Dimensions (WxHxD)||440 x 44 x 180 mm|
Please note your statutory rights are not affected.
For further information regarding Scan's warranty procedure please see our terms and conditions
- 24 months
- DOA Period:
- 28 days
- RTB Period:
- 12 months
- 0845 147 0017
UK Users Tel:
0845 147 0017
24 hours a day, 7 days a week
Procedures in Detail
Step 1: Contact us through our Technical Support Line 0845 147 0017 (UK) or 0818 229 000 (Ireland), a representative will help you with remote troubleshooting. If the product is judged to be defective, the representative will provide you with a unique RMA number. Customer contact and product info will be requested during this process.
Step 2: An email explaining the RMA process will be sent from TP-LINK UK.
Step 3: Send defective product, purchase receipt along with RMA number to TP-LINK.
Note: Customers are responsible for the shipping fee in Step 3.
Step 4) Once the defective product is received, TP-LINK UK Limited will send back a replacement and inform customer of the tracking number. The warranty starts from the purchase date of your original unit and lasts for 2+1 years on SOHO products regardless of how many replacements are made.
Note: TP-LINK UK Limited will pay the one way shipping fee in Step 4
PLEASE NOTE: If you register your product with TP-LINK then you can enjoy a free 3rd year warranty.
Sign in portal http://warranty.uk.tp-link.com/SignIn.aspx
Warranty information http://uk.tp-link.com/rma.html
