Scan code: LN144191 Manufacturer code: 0F62785

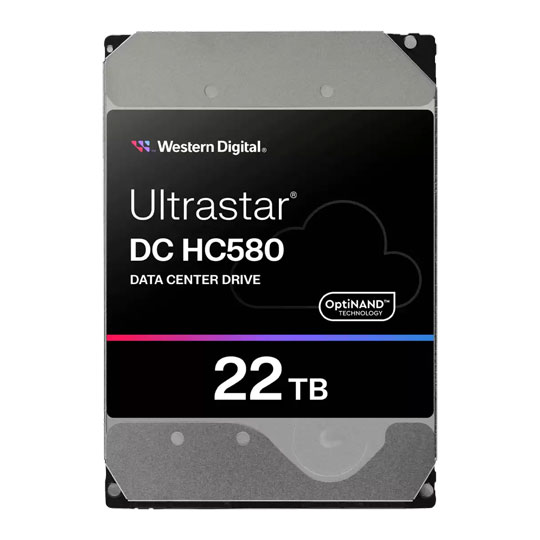

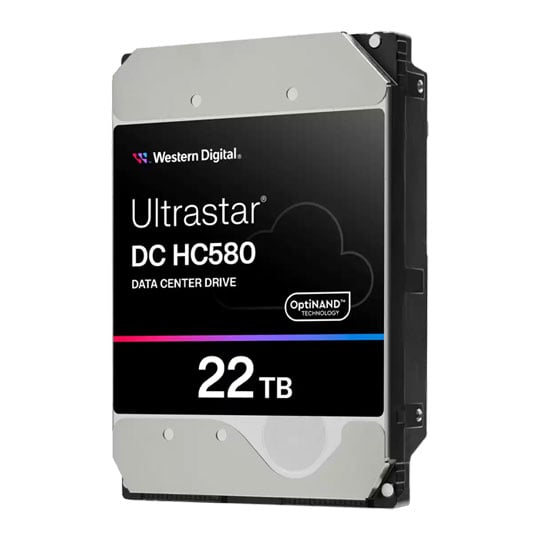

WD Ultrastar DC HC580 SE NP3 22TB 3.5" SATA Hard Disk Drive 7200rpm

22TB Ultrastar DC HC580 SE NP3 3.5" HDD, SATA III 6Gb/s, 7200rpm, 512MB Cache

Thumbnail 1 : WD Ultrastar DC HC580 SE NP3 22TB 3.5" SATA Hard Disk Drive 7200rpm Thumbnail 2 : WD Ultrastar DC HC580 SE NP3 22TB 3.5" SATA Hard Disk Drive 7200rpm
Scan code: LN144191 Manufacturer code: 0F62785
£445.49Item currently awaiting an ETA
Pre order
From £21.76 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £40.36
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £445.49
Total inc. interest: £484.30
Monthly Payment: £21.76
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £445.49
Total inc. interest: £522.01
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £11.84 / month (APR 19.9%)
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Product Overview

Fuel Data Centre Expansion

Relentless growth of data means organisations must find ways to efficiently store more data. That’s where higher areal density comes into play, with its ability to boost capacities while not increasing the storage footprint. The Ultrastar DC HC580 24TB / 22TB1 HDD with OptiNAND™ technology is the next step in data density, allowing data centres to maximise their storage, especially in footprint- and power-constrained environments.
The 24TB / 22TB drive combines several innovative technologies including energy-assist magnetic recording (EAMR), HelioSeal®, triple-stage actuator (TSA) that improves TPI capability with greater control over the actuator arm, improved OptiNAND Technology and ArmorCache™. This innovation is incorporated into a 10-disk CMR drive, delivering the performance, quality, and reliability that data centre customers require.


Low Power for Lower Operating Costs

Innovative technologies such as OptiNAND energy-assisted magnetic recording (EAMR), triple-stage actuator (TSA), and HelioSeal enable high capacity with low power.


OptiNAND Technology Benefits

The Ultrastar DC HC580 is the newest-generation platform with OptiNAND technology, which integrates an iNAND® Universal Flash Storage (UFS) Embedded Flash Drive (EFD), with traditional spinning disk media. Western Digital’s new 2.4TB/disk CMR areal density is used with its proven 10-disk platform, delivering up to 24TB capacity with a CMR recording format. More disks and high areal density work together to maximise data storage efficiency.


OptiNAND improves drive resiliency in the event of an emergency power off (EPO) by increasing the amount of non-volatile memory (NVM) available to flush critical metadata to the iNAND.
ArmorCache enabled by OptiNAND technology ensures that all the data in the DRAM cache is safely written to the onboard NVM device, should a sudden power loss event occur. Power to a host system may be lost without warning; operating HDD’s with write cache disabled (WCD) reduced the risk of data loss. With ArmorCache technology, host flush cache commands are no longer necessary to protect data, allowing for maximum performance in either WCD or write cache enabled (WCE) mode. This innovative feature provides enterprise power loss protection of data in WCE while increasing performance in WCD mode.

Trusted Reliability and Quality for Data at Scale

The Ultrastar DC HC580 meets modern data centre reliability requirements with 2.5M MTBF2 (projected) and a 5-year limited warranty. It is performance-optimised for heavy application workloads and designed to handle workloads of up to 550TB per year. IT professionals and executives trust Western Digital and the Ultrastar DC HC580 hard drive to deliver unbeaten CM capacity and great value for their data centre.

Features

• The Ultrastar DC HC580 data centre HDD uses new, improved OptiNAND technology to store 24TB / 22TB1 on a 10-disk CMR drive, enabling a more efficient storage footprint.
• Innovative technologies such as OptiNAND, energy-assisted magnetic recording (EAMR), triple-stage actuator (TSA) and HelioSeal enable high capacity with low power.
• ArmorCache improves performance and provides enterprise power loss protection.
• The Ultrastar DC HC580 is performance optimised to handle heavy application workloads up to 550TB per year.
• The robust drive delivers dependability and reliability with up to 2.5M hours (projected) MTBF.
• Provides additional peace of mind with a 5-year limited warranty.

Specifications
Capacity 22000 GB
Edition Ultrastar DC HC580
Form Factor 3.5"
SSHD No
Flash Memory Size N/A
Flash Memory Type N/A
Height 26.1 mm
Rotation Speed 7200 rpm
Sector Size 512E
Cache 512MB
Access Time 4.16 ms
Host to/from Drive Sustained Transfer Rate
Interface SATA 3.0 (6Gb/s)
Load/Unload Cycles 600,000
Annualised Workload Rating 2,500,000 TB/yr
Non-Recoverable Read Errors per Bits Read <1 in 10^15
Max. Operating Shock 40 G
NCQ No
Max.Power Usage
Dimensions 101.6 x 26.1 x 147 (WxHxD mm)
Package Type
Additional Information
Scan Code LN144191
Model Number 0F62785
GTIN 829686008854
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
60 months
Type:
Direct
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
WESTERN DIGITAL
