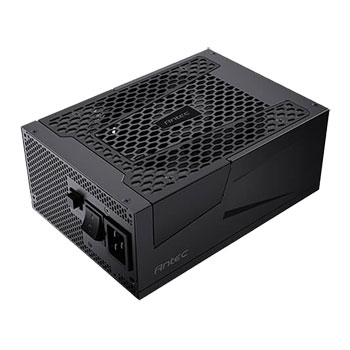

Antec Signature SP2200 80PLUS Platinum Fully Modular ATX 3.1 PCIe 5.1 PSU / Power Supply

2200W Antec Signature SP2200, Fully Modular, 80PLUS Platinum, Single Rail, 183.3A, 12V-2x6, ATX 3.1 Power Supply
MORE INFO
MORE INFO

Scan code: LN165680 Manufacturer code: 0-761345-20160-5
£449.99
£5.48 Next day delivery
Item currently awaiting an ETA
Pre Order
Pre order
Pay in 3 interest-free payments of £150.00

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • From £21.98 / month (APR 16.9%) for 24 months or 0% for 4 months
  • With a 10% deposit from just £11.24 / month (APR 15.9%)
  • SCANPROTECT Protect against installation damage for 28 days.

Suggested Alternatives

2200W Signature SP2200 80PLUS Platinum Fully Modular Power Supply from Antec

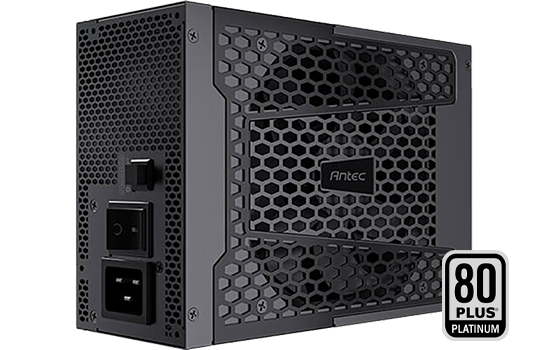

Hero Image of Signature SP2200

future-ready Introducing the Signature 2200 Platinum ATX 3.1 Power Supply. The Signature 2200 Platinum ATX 3.1 is Antec’s high-performance ATX 3.1 power supply, built to support modern, power-demanding systems. It meets key industry standards including ATX 3.1 and PCIe 5.1 compliance, uses 100% high-quality Japanese capacitors, features fully modular cabling, and delivers up to 94% efficiency certified by 80 PLUS® Platinum. Focused on reliability and efficiency, the Signature 2200 provides a dependable foundation for advanced PC builds. With robust GPU support, server-grade PhaseWave™ design, and quiet thermal performance, this power supply is engineered for AI computing, professional workloads, workstations, and next-generation PC enthusiasts. Delivering reliable, high-efficiency power, it’s ideal for AI-driven applications.

2200WWattage

80 PLUS PlatinumEnergy Efficiency

ATX 3.1Form Factor

Made for the Future

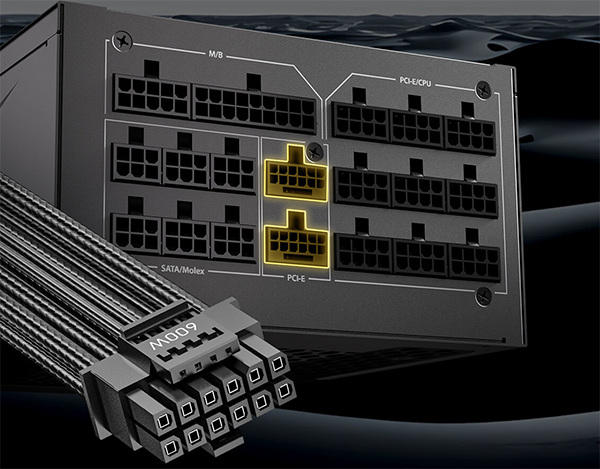

Close up of the power supply ports with the PCI-e ports highlighted in yellow

ATX 3.1 & PCIe 5.1 Compatible Fully compliant with the latest ATX 3.1 standard, the Signature 2200 ensures top-tier reliability and power efficiency. The bundled PCIe 5.1 12V-2x6 GPU cables provide robust support for modern high-performance graphics cards.

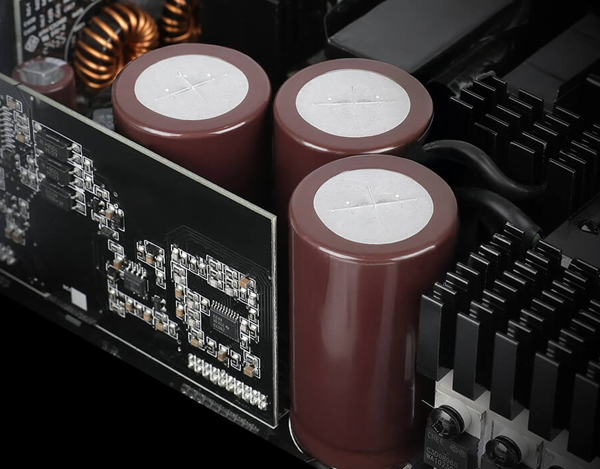

Close up of the Japanese Capacitors

100% High-Quality Japanese Capacitors Built entirely with premium Japanese capacitors, the Signature 2200 Platinum ATX3.1 delivers ultra-tight voltage regulation, minimal ripple, and long-term stability.


features

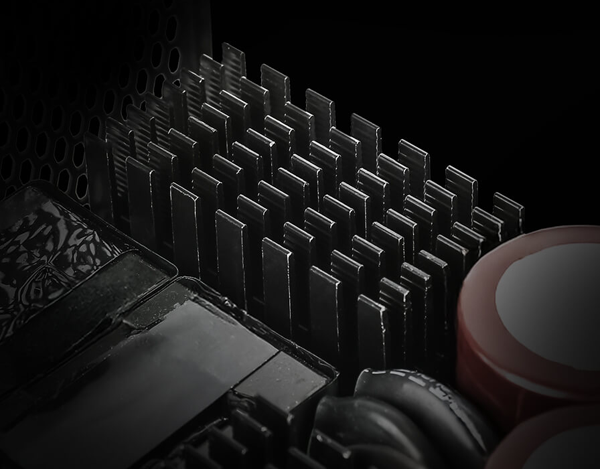

PhaseWave Design Server-grade full-bridge LLC architecture with synchronous rectification and DC-DC topology ensures consistently efficient and stable power delivery across all rails.


features

12-Year Warranty Pushing the standard for excellence with the full-suite industrial protections, backed by a 12-year warranty duly committed by Antec.

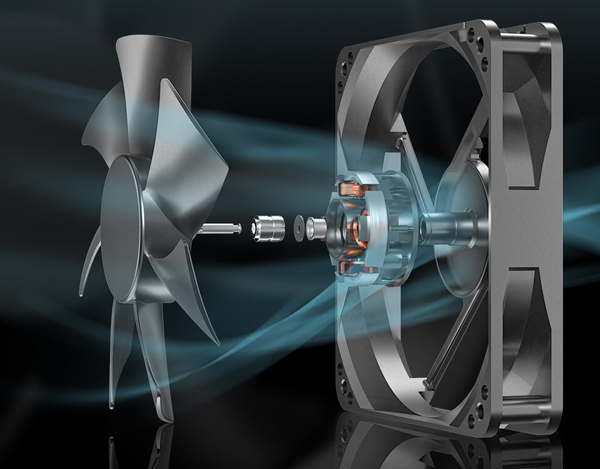

Image of the fan and all the parts spread out

135mm FDB Silent Fan Equipped with a whisper-quiet 135mm fluid-dynamic bearing fan for high airflow, durability, and near-silent operation even under load.

Compact High-Power Design Delivering up to 2200W of power, the Signature 2200 Platinum ATX 3.1 is built in a compact chassis, allowing for greater compatibility with a wide range of high-end cases compared to many other high-wattage PSUs.

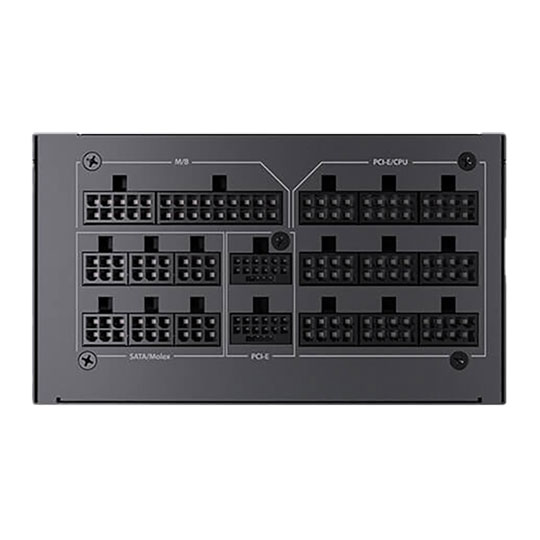

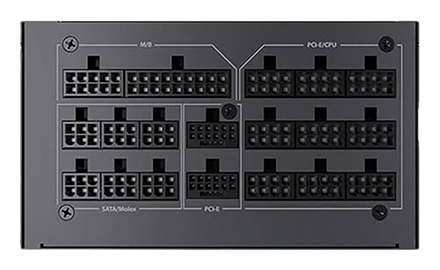

Close up of the power supply ports

Full Modular Cable Management Reduces cable clutter and improves airflow with fully modular cables. Use only what you need for a clean, streamlined build and optimal thermal performance.

Specifications
Form Factor ATX 3.1
Edition Signature 2200 Platinum ATX 3.1
Wattage 2200 W
Energy Efficiency Certification 80 PLUS Platinum
Max. Efficiency (at 230Vac) 94 %
Cooling Fan
Fans 1 x 135mm
Internal +12V Rails Single Rail
Rail 1 +12V 183.3 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 183.3 A
Modular Yes
Modularity Full Modular
SLI/CrossFire No
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 2 x 12V-2x6
  • 3 x 4+4-pin ATX 12V
  • 3 x 4-pin Molex
  • 4 x 6+2-pin PCIe
  • 18 x SATA
Dimensions 505 x 205 x 600 (WxHxD)
Package Type Retail
Warranty 12 Year
