Scan code: LN117369 Manufacturer code: 111568052

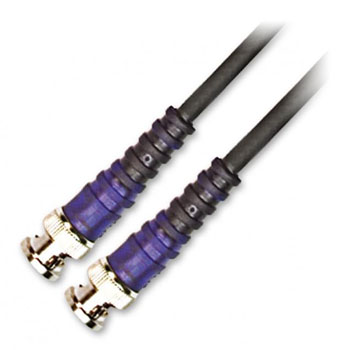

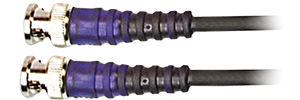

Van Damme HD Vision Flexible BNC Cable 20m

20m Van Damme HD Vision Flexible RG59/U BNC Male to BNC Male, Coax, Video Signal Cable, HD-SDI/SDI

MORE INFO
MORE INFO
Thumbnail 1 : Van Damme HD Vision Flexible BNC Cable 20m
Scan code: LN117369 Manufacturer code: 111568052
£72.00
Add To Basket
In stock
Order now and receive it by Friday, 22nd October
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 22nd Oct to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Van Damme - '20m HD Vision RG59/U Flexible HD BNC to BNC Cable'

Van Damme 20m HD Vision Flexible RG59/U HD BNC to BNC

HD Vision Flexible CoaxHD Vision Flexible Coax Van Damme HD Vision single coaxials are based around industry standard RG6/U and RG59/U. their precision construction ensures that electrical performance has not been majorly affected by the use of a stranded centre conductor, ensuring trouble free performance with SMPTE 424M and 292M HD-SDI signals as well as SDI and analogue video.

Amazing Features • Van Damme UP-OFC HD Vision Flexible RG59/U 75 Ohm coax in black only
• Maximum transmission lengths SDI (SMPTE 259M) 128 metres, HD-SDI 1080i (SMPTE 292M) 47 metres,
1080p (SMPTE 424M) 31 metres
• Terminated with Van Damme True 75 Ohm HD 3GHz precision male BNCs with violet strain reliefs

Specifications
Length 20 m
Type
Specification
Connector From BNC (Male)
Connector To BNC (Male)
Connector Features
Cable Features PVC Jacket
Colour Black
Total Weight
Additional Information
Scan Code LN117369
Model Number 111568052
GTIN 00
