Scan code: LN106399 Manufacturer code: AK-CBUB51-BK

Akasa 20-pin USB 3.1 Internal Connector

20-pin Akasa USB 3.1 Internal Converter, Converts USB3.0 19 Pin Header to USB3.1 20 Pin Key A Connecter

Thumbnail 1 : Akasa 20-pin USB 3.1 Internal Connector Thumbnail 2 : Akasa 20-pin USB 3.1 Internal Connector Thumbnail 3 : Akasa 20-pin USB 3.1 Internal Connector Thumbnail 4 : Akasa 20-pin USB 3.1 Internal Connector
Scan code: LN106399 Manufacturer code: AK-CBUB51-BK
£5.99
Order now and get it tomorrow, Mon 21st Sep
Delivery Options
  • By DPD On 21st Sep to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Product Overview

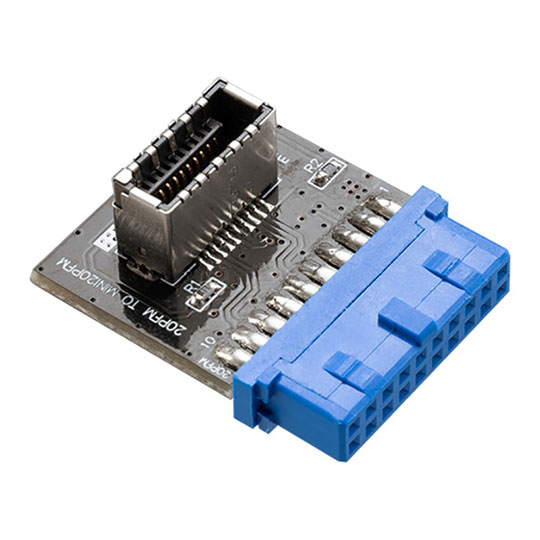

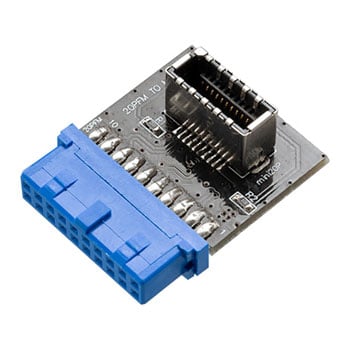

20-pin USB 3.1 Internal Connector

Convert a USB 3.0 19-pin motherboard header into a USB 3.1 20-pin Key A connector.


Features

• Upgrade a 19-pin motherboard header into a 20-pin Key A connector
• Plugs into a 19-pin USB 3.0 header
• Supports 5 Gbps transfer speeds
• No driver installation required

Specification:
• Colour: Black
• Data transfer rate: 5 Gbps
• Connectors: USB 3.1 internal 19-pin male x 1 (host), USB 3.1 internal 20-pin Key-A female x 1 (target)
• Dimensions: 23 x 28.4 x 11 mm (W x D x H) (height does not include USB 3.1 20 pin socket protector)
Specifications
Length N/A
Type USB 3.0 Connector Type Adaptor
Specification
Connector From
Connector To
Connector Features
Cable Features
Colour Black
Total Weight
Additional Information
Scan Code LN106399
Model Number AK-CBUB51-BK
GTIN 4710679559711
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
