Scan code: LN69868 Manufacturer code: ST1000SPEXD4

2 Port PCIe Gigabit Network Card from

2 Port PCI Express Gigabit LAN Network Card, LED Indicators, Jumbo Frame Support, Wake-on-LAN, Low Profile

Thumbnail 1 : 2 Port PCIe Gigabit Network Card from Thumbnail 2 : 2 Port PCIe Gigabit Network Card from Thumbnail 3 : 2 Port PCIe Gigabit Network Card from Thumbnail 4 : 2 Port PCIe Gigabit Network Card from
Scan code: LN69868 Manufacturer code: ST1000SPEXD4
£67.49Item due today
Pre order
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

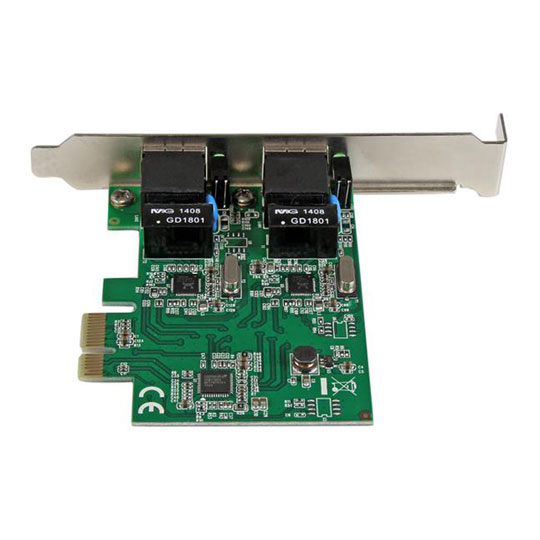

2 Port PCIe Gigabit Network Card

The ST1000SPEXD4 PCI Express Dual-Port Gigabit Network Card lets you add two gigabit Ethernet ports to a client, server or workstation through a single PCIe slot. Each port provides 10/100/1000 Mbps capable Ethernet and is fully compatible with IEEE 802.3/u/ab standards.

Suitable for any standard PCI Express-enabled system, the 2-port Ethernet card supports full-duplex flow control for maximum data transfer speeds of up to 2000 Mbps - an ideal 2-port NIC for setting up dual-homed, or multi-homed host configurations providing added security to corporate networks.

The dual-port server adapter is compliant with the PCIe 2.0 standard and features support for Jumbo Frames and 802.1q VLAN tagging as well as Wake on LAN (WoL). The adapter includes an optional low-profile / half-height bracket that can be used for installation into a standard or small form-factor computer chassis.

• Two 10/100/1000Mbps compatible RJ-45 Ethernet ports.
• Up to 9K Jumbo Frame support.
• Compatible with PCI Express Base Specification 2.0 (backward compatible with 1.0a/1.1).
• Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, and supports IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding and IEEE 802.3x Full Duplex Flow Control.
• Supports Microsoft NDIS5 Checksum Offload (IP, TCP, UDP) and Large send Offload.
• Wake-on-LAN / Remote Wake-up support.
• Configured with standard profile bracket, low profile/half-height bracket included.
• Supports Pair Swap / Polarity / Skew Correction.

Ideal For:
• Ideal for VM environments with multiple operating systems, requiring shared or dedicated NICs.
• Provide redundant connectivity to ensure an uninterrupted network connection.
• Configure a dual-homed proxy or gateway system for an added layer of security.
• Specially designed for desktop PC clients, servers, and workstations with few PCI Express slots available.

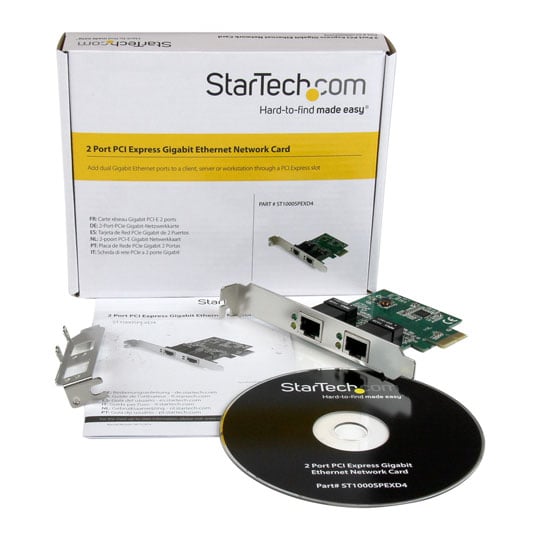

• PCIe Network Card.
• Low Profile Bracket.
• Driver CD.
• Instruction Manual.

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

24 months
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Loading Please Wait

Please wait . . .

TekSpek Guides
Home Networking
Home Networking
Date Issued: 26th Oct 2006

As a growing number of homes contain more than one computer, their users must find ways to network them. The primary purpose for creating a home network tends to be to provide Internet access to all computers within the house. There are other good reasons, however. These include enabling LAN gaming, data backups from one machine to another and the sharing of music within the home.

Read More

Questions & Answers

2 port NIC

I'm not familiar with a 2 port NIC arrangement. Does the data flow at twice the rate? I am looking to optimised file copying between two PCs. Will my SATA HD cope with the 2Gbs throughput?
Asked by: Flatcap
Hi, I would recommend speaking with our Technical Support Department regarding this. They should be able to provide you with all necessary information regarding this item. You can reach them on 01204 474747. Alternatively, you can log a message via the link below and we will email you back. Kind Regards,
Answered by: LukeW
Date published: 2019-05-24
