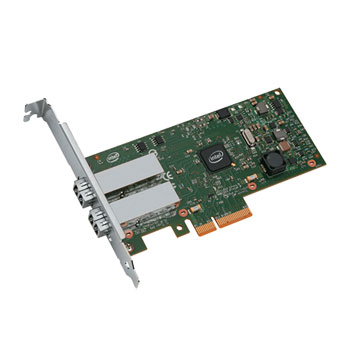

Intel i350-F2 Dual Port 1000base-SX PCI-E Fiber Optic Network Adaptor with Low Profile Bracket
2 Port Intel i350-F2 Dual Port 1000base-SX Fiber Optic PCI-E Network Adaptor Card inc Low Profile Bracket OEM
By DPD On 26th Mar 2019
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.
1000BASE-SX is a fiber optic Gigabit Ethernet standard for operation over multi-mode fiber using a 770 to 860 nanometer, near infrared (NIR) light wavelength. The standard specifies a distance capability between 220 meters and 550 meters. In practice, with good quality fiber, optics, and terminations, 1000BASE-SX will usually work over significantly longer distances. This standard is highly popular for intra-building links in large office buildings, co-location facilities and carrier neutral internet exchanges
Flow control, ACPI support, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), Broadcast Storm Control, IPv6 support, Multicast Storm Control, Quality of Service (QoS), Intel I/O Acceleration Technology (I/OAT), Jumbo Frames support, PXE support, Large Send Offload (LSO), Receive Side Scaling (RSS), Single Root I/O Virtualization (SR-IOV), Energy Efficient Ethernet, TCP Segmentation Offload (TSO), vital product data (VPD) support, checksum offload support, Extended Message-Signaled Interrupts (MSI-X), iSCSI remote boot, Watch Dog Timer (WDT), Virtualization Technology for Connectivity (VT-c), DMA Coalescing (DMAC), Latency Tolerance Reporting (LTR)
Flexible I/O Virtualization
The Intel Ethernet I350 adapter includes Intel Virtualization technology for connectivity to deliver I/O virtualization and Quality of Service (QoS) features designed directly into the I350 controller on the adapter. I/O virtualization advances network connectivity models used in the servers to more efficient models by providing Flexible Port Partitioning (FPP),multiple Rx/Tx queues,and on-controller QoS functionality that can be used in both virtual and non-virtual server deployments.
Energy Efficient Ethernet (EEE)
The Intel Ethernet I350 Server Adapter family supports the IEEE802.3az Energy Efficient Ethernet (EEE) standard so that,during periods of low network activity,EEE reduces the power consumption of an Ethernet connection by negotiating with a compliant EEE switch port to transition to a low power idle (LPI) state. This reduces the controller power to approximately 50% of its normal operating power,saving power on the network port and the switch port. As soon as increased network traffic is intelligently detected,the controller on the platform and the switch quickly come back to full power to handle the increased network traffic.
Scalable iSCSI performance
Intel Ethernet I350 Server Adapter with native iSCSI initiators provides a simple,dependable,cost-effective way to connect to LANs and iSCSI SANs. These native initiators are broadly tested using multiple generations of operating systems,storage systems,and OS tools to help ensure reliability and ease of use. Standardizing on Intel Ethernet for iSCSI allows administrators to use a single initiator,TCP/IP stack,and a common set of management tools and IT policies.
Another power management technology that can reduce power on the server platform is DMA Coalescing (DMAC). Typically,when a packet arrives at a server,DMA calls are made to transfer the packet within the server. These calls wake up the processor,memory and other system components from a lower power state in order to perform the tasks required to handle the incoming packet. Based on the configurable DMAC settings,incoming packets are buffered momentarily before any DMA calls are made. This enables the controller to intelligently identify opportunities to batch multiple packets together so that when components are wakened from lower power states they can efficiently handle the batched packets at the same time. This enables platform components to remain in lower power states longer,which can dramatically reduce platform energy consumption.
Features Expansion / Connectivity
Interfaces 2 x 1000Base-SX - LC multi-mode - x 2
Compatible Slots 1 x PCI Express 2.0 x4
Processor / Memory
Processor I350 - Intel
Included Accessories Low-profile bracket
Compliant Standards APM, FCC Class B certified, UL, VCCI, C-Tick, BSMI, ACPI 2.0c, KCC
Compatible with Windows 7 "Compatible with Windows 7" software and devices carry Microsoft?s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.
Package Type Bulk
Data Link Protocol GigE
Max Transfer Distance 300 m
Ports 1000Base-SX x 2
Connectivity Technology Wired
Cabling Type Ethernet 1000Base-SX
Data Transfer Rate 1 Gbps
Network / Transport Protocol TCP/IP, UDP/IP
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3x, IEEE 802.1as, IEEE 802.3az
Width 6.9 cm
Depth 13.5 cm
Interface (Bus) Type PCI Express 2.1 x4
PCI Specification Revision PCIe 2.1
Form Factor Plug-in card - low profile
