ICY DOCK ToughArmor MB852M2PO-B 2 Bay M.2 NVMe SSD PCIe 4.0 Mobile Rack Enclosure

Icy Dock ToughArmor MB852M2PO-B Enclosure

The ToughArmor MB852M2PO-B replaces the legacy slim CD/DVD bay with 2 x high-speed M.2 NVMe SSD. It fits Ultra-Slim 9.5mm optical disk drive (ODD) bay and uses removable M.2 drive trays for effortless drive access and maintenance. It is a perfect storage upgrade solution for customized Industrial-PC, Server Rackmount, and Embedded Systems.

World's First Removable M.2 NVMe SSD Enclosure

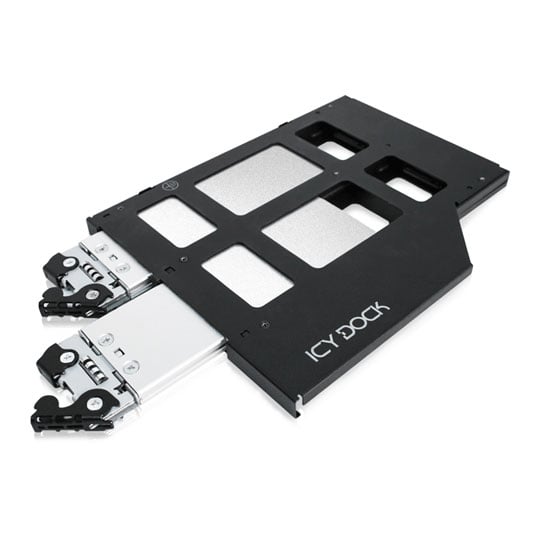

The M.2 drive is typically installed on a motherboard or PCIe card and secured by tiny screws. It can be a time-consuming process when installing or removing the drive and makes M.2 SSD not the ideal choice for enterprise applications where easy maintenance with minimum downtime is essential. ToughArmor MB852M2PO-B's swappable M.2 drive trays allow you conveniently access the drives from the frontal Ultra-Slim optical drive bay of your system without opening the computer case.

In order to support M.2 22110 SSD, the length of MB852M2PO-B is longer than the standard Ultra-Slim ODD (159.3mm). Make sure to check the clearance of your Ultra-Slim ODD bay before purchasing.

Effortless Tool-less M.2 Drive Installation

The ToughArmor MB852M2PO-B is designed with a patent-pending M.2 adjustable locker for tool-less drive installation/removal. Simply insert the M.2 SSD (2230, 2242, 2260, 2280, and 22110), move the adjustable M.2 locker until it firmly secures the M.2 SSD and closes the lid. The whole process only takes less than 10 seconds to complete, saving your valuable time and resources.

Superior PCIe 4.0 Performance

To fully utilize the speeds of M.2 NVMe SSD, each drive bay of the MB852M2PO-B uses its' own PCIe Gen 4 OCuLink (SFF-8612) connection and support up to 64Gbps data transfer speed, which is up to 2 times faster than PCIe 3.0 and 10 times faster than SATA interface.

Optimal Cooling Efficiency

The specialized slimline tray is made with thick aluminium and acts as heatsink to dissipate heat generated by the M.2 NVMe SSD through large ventilation opening on both the top and bottom of the device.

The included thermal pad fills the gap between the contact surface and transfers heat away from the M.2 SSD to the larger surface of the metal cover, allowing airflow to dissipate the heat away quickly.

EMI Grounding Technology

Grounding your M.2 SSD is very important through many swaps. Swapping drive without grounding properly may lead to hardware damages due to static shocks. With our innovative EMI Grounding Technology, once the M.2 locker clips into the SSD screw hole, the SSD will be in a grounded state throughout the tray and housing of the enclosure. Once the enclosure installed in the system with four screws on its' side, it will then ground itself throughout your computer system.

Tough Protection for the Harshest Environment

With the ToughArmor Series, it is equipped with a ruggedized full-metal chassis and tray to ensure a long product lifespan. An anti-vibration mechanism is built right into the chassis to reduce noise and shield the drive from environmental damage.

LED Indication

The MB852M2PO-B is equipped with drive activity LED indicator on the drive tray to show drive power and activity. The LED will be automatically powered off when no drive installed to indicate an empty bay.

Exceptional Product Compatibility

The MB852M2PO-B is compatible with motherboards, RAID/HBA cards, and M.2 adapters from major brands including Adaptec, Areca, Broadcom, HighPoint, Supermicro, and more. This compatibility gives you the freedom to choose from a wide range of hardware options, moving beyond the constraints of single-brand system configurations.

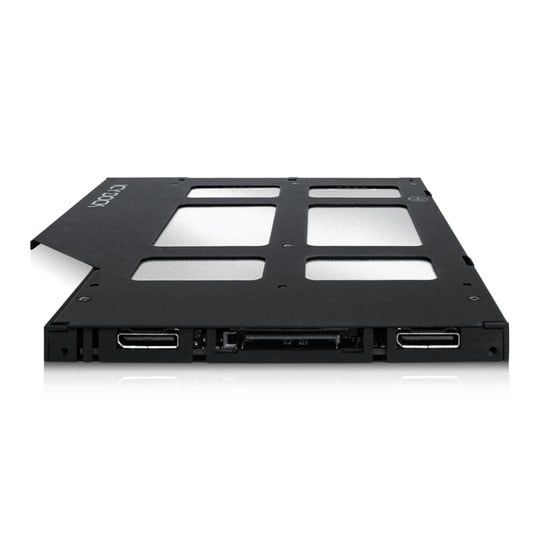

The ToughArmor MB852M2PO-B is designed to work seamlessly with SATA 15-pin power cables and OCuLink cables equipped with a locking latch. This ensures cables remain firmly attached, minimizing the risk of unintentional disconnections during vibrations or movement. Once secured, these cables maintain a steadfast connection.

• Fits 2x M.2 PCIe NVMe SSD with all length - 2230 (30mm), 2242, (42mm), 2260 (60mm), 2280 (80mm), and 22110 (110mm).
• Uses 2x PCIe Gen 4 OCuLink connector and supports up to 64Gbps transfer speed.
• OCuLink connector pinout supports SFF-9402 specification.
• Installs into 9.5mm ultra-slim optical disk drive (ODD) bay.
• Designed for customized Industrial-PC, server rackmount, and embedded systems.
• Removable drive tray with tool-less drive installation design for easy drive maintenance.
• Eagle-hook lock system keeps the drive secure in the enclosure.
• EMI-Grounding – protects drives from electrical damage.
• Anti-Vibration Technology (AVT) reduces noise and protects against environmental damage.
• Active Power Technology (APT) saves power by shutting the device down when no drive is installed.
• The built-in thermal pad conducts the heat from the drive to the metal tray.
• Complimentary support from professionally trained technical support agents.
• Industry-leading 5 years limited warranty against all defects.
• Designed for backplane-less Slim ODD bay with a minimum 160mm clearance.
• NVMe host and OCuLink connection required. Not compatible with the SATA host.
