ICY DOCK ToughArmor 2 Bay M.2 NVMe SSD Mobile Rack For External 3.5" Bay

ToughArmor MB834MK-B V2

The ToughArmor MB834MK-B V2 is a Ruggedized Two Bay Removable M.2 NVMe SSD Enclosure that fits a single external 3.5" drive bay of the computer system and supporting PCIe 4.0 64Gb/s data transfer rates via SlimSAS 4i (SFF-8654) interface and accepts all standard M.2 drives lengths from 30mm to 110mm (2230, 2242, 2260, 2280, 22110). It simplifies the process of installing or removing M.2 NVMe SSD by using the removable drive trays with tool-less adjustable M.2 drive locker, making it easy to change drives at any time without open the computer case or dealing with drive mounting screws. In addition, while working together with numbers of ventilation holes around the enclosure, each drive tray is equipped with a high efficiency aluminium heat sink to ensure your SSDs are at optimal temperatures. As part of ICY DOCK's toughest line, the MB834MK-B V2 is made out of full metal construction with metal barrel key locks for maximum protection.

M.2 Drive is No Longer Hidden

The conventional approach to installing an M.2 drive involves mounting it on a motherboard or a riser card using a small screw, which can be a cumbersome and time-consuming task. Removing or installing the drive physically can be quite troublesome. Fortunately, ICY DOCK has introduced a game-changing solution - the ToughArmor MB834MK-B V2. This innovative product brings M.2 drives to the front of your computer case, streamlining the process of installing and removing M.2 NVMe SSDs. With the ToughArmor MB834MK-B V2, the once complicated procedure becomes much more straightforward and efficient.

State-of-art Tool-less M.2 Drive Installation

Typically, M.2 PCIe NVMe SSD drives are inserted at a 45-degree angle and secured to the motherboard using screws. However, with the ToughArmor MB834MK-B V2, this process is made much simpler. Users can effortlessly place the M.2 SSD in the drive tray, adjust the drive locker to fit the specific M.2 drive type, and then push down to lock it securely in place. This streamlined procedure takes less than five seconds to complete, eliminating the need for small, easy-to-lose screws and introducing a more efficient and innovative way of installing M.2 drives.

The ToughArmor MB834MK-B V2 offers a completely tool-less drive installation experience, extending to the extra-large high-efficiency aluminium heatsink as well. There is no need for any tools when installing or removing the heatsink. Just use your thumbs to press down on the two buttons located underneath the tray, and the heatsink will effortlessly pop out, allowing for easy removal. To reinstall it, simply cover the tray with the heatsink and apply a little downward force, and it will securely snap right back into place.

EMI Grounding Technology

Grounding your M.2 SSD is crucial, as swapping drives without proper grounding can lead to hardware damage from static shocks. Our innovative EMI Grounding Technology ensures that once the drive clips into the M.2 adjustable locker, it remains grounded through the tray, housing, and computer system, protecting your drives from static electrical surges during swapping.

Convenient Accessibility

The M.2 adjustable locker accommodates all standard M.2 PCIe NVMe SSD drives, including 2230 (30mm), 2242 (42mm), 2260 (60mm), 2280 (80mm), and 22110 (110mm), making it universally compatible and future-proof for extra-long M.2 110mm drives.

Maximum Cooling Performance

Since M.2 NVMe SSDs are known for generating high temperatures, it's essential to maintain operating temperatures at all times to prevent performance degradation. Each drive tray comes equipped with an extra-large, high-efficiency aluminium heatsink lid and thermal pad.

Full Speed Ahead

The ToughArmor MB834MK-B V2 utilizes the SlimSAS (SFF-8654) interface, enabling it to support the full NVMe bandwidth of 64Gbp/s, which is over ten times faster than the previous SATA standard. This outstanding speed makes it a perfect choice for data-intensive applications, such as real-time servers, high-performance PCs, deep-learning machines, and 4k/8k/3D media workstations.

Safe and Secure

The ToughArmor MB834MK-B V2 features a ruggedized full-metal chassis, tray, and mounting bracket, enhancing the product's durability and contributing to effective heat dissipation. Additionally, an anti-vibration mechanism integrated into the chassis reduces noise and provides protection against environmental damage. This robust construction and thoughtful design ensure a long product life and reliable performance in various conditions.

Packed with Features

The MB834MK-B V2 is compatible with motherboards, RAID/HBA cards, and M.2 adapters from major brands including Adaptec, Areca, Broadcom, HighPoint, Supermicro, and more. This compatibility gives you the freedom to choose from a wide range of hardware options, moving beyond the constraints of single-brand system configurations.

• Fits 2x M.2 NVMe SSD of all lengths, 30mm (2230), 42mm (2242), 60mm (2260), 80mm (2280), and 110mm (22110).
• Adjustable drive locker holds all length drives securely.
• Tool-less drive installation design for easy drive maintenance and system upgrading.
• Installs into any standard external 3.5” device bay or floppy bay.

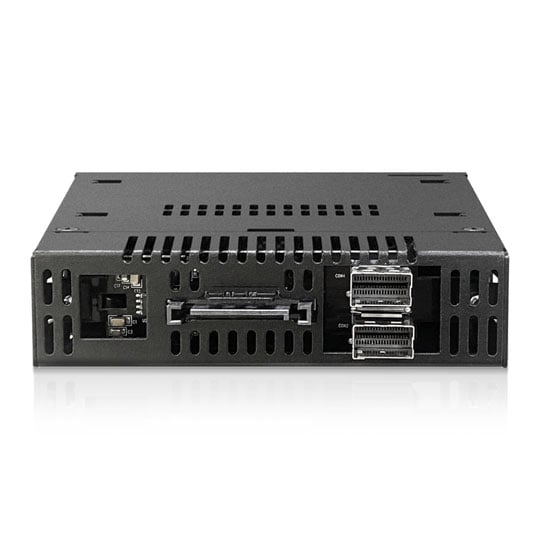

• Uses 2 x SlimSAS 4i (SFF-8654) to connect, requires NVMe host.
• Supports the full NVMe bandwidth specification of 64 Gbps.
• Ruggedized full-metal enclosure meeting flammability requirements.
• Integrated extra-large high-efficiency heat sink and ample ventilation for excellent passive cooling.
• 2-segment key lock for additional physical security.
• Eagle-hook tray latch securely holds the tray inside the enclosure.
• EMI Grounding – protects SSDs from electrical damage.
• Anti-Vibration Technology (AVT) reduces noise and protects against environmental damage.
• Active Power Technology (APT) saves power by shutting the device down when no drive is installed.
