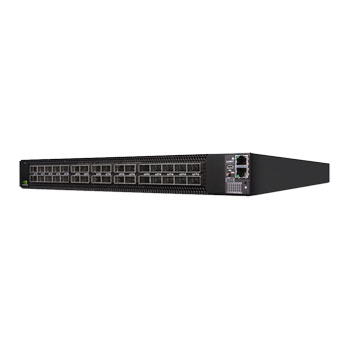

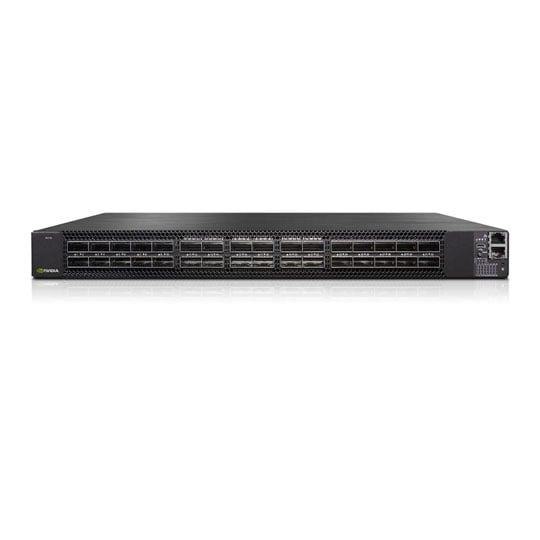

SN3700 Series Switches
The SN3700 spine/super-spine network switch offers 32 ports of 200GbE in a compact 1U form factor. It enables connectivity to endpoints at different speeds and carries a throughput of 12.8Tb/s, with a landmark 8.33Bpps processing capacity. As an ideal spine solution, the SN3700 allows maximum flexibility, with port speeds spanning from 10GbE to 200GbE per port.
Visibility
• NVIDIA What Just Happened (WJH) telemetry dramatically reduces mean time to issue resolution by providing answers to: When, What, Who, Where and Why
• Hardware-accelerated histograms track and summarize queue depths at submicrosecond granularity
• Inband Network Telemetry (INT)-ready hardware
• Streaming Telemetry
• 512K on-chip flow counters
Performance
• Fully shared packet buffer provides a fair, predictable and high bandwidth data path
• Consistent and low cut-through latency
• Robust RoCE transport to power NVMe over fabric and Machine • Learning applications that leverage NVIDIA GPUDirect
• Best-in-class VXLAN scale 10X more tunnels and tunnel endpoints than others
• 512K shared forwarding entries flexibly shared across ACL, LPM routes, host routes, MAC, ECMP and tunnel applications
Agility
• Comprehensive Layer-2, Layer-3 and RoCE
• Advanced network virtualization with high performance single pass VXLAN routing and IPv6 segment routing
• Cloud Scale NAT 100K+ sessions
• Programmable pipeline that can programmatically parse, process and edit packets
• Deep Packet Inspection 512B deep
Features
Technology: Ethernet
Operating System: Cumulus Linux
Max Speed: 200GbE
Connector Type: QSFP56
Ports: 32x200GbE
Airflow: C2P
