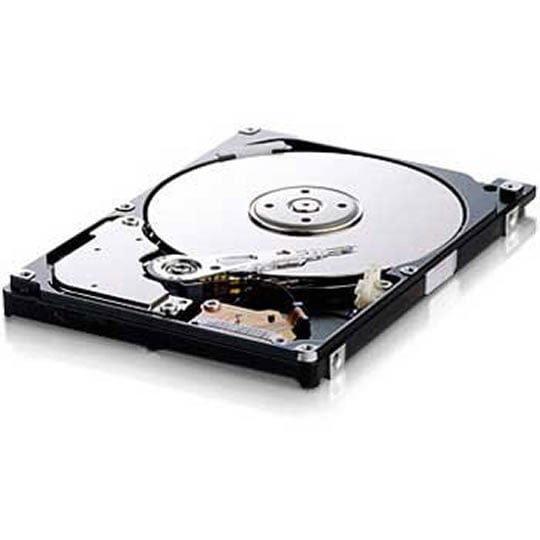

Seagate Spinpoint M8 1TB 2.5" Internal Hard Drive

1TB Seagate ST1000LM024 Momentus 2.5", 9.5 mm, SATA II 3Gb/s, 5400rpm, 8MB Cache 12ms also PS/3 Compatible OEM

Seagate
Scan code: LN40336 Manufacturer code: ST1000LM024 Request call
£52.99Item currently awaiting an ETA
Pre order
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Product Overview This 1TB 2.5" HDD in 9.5mm will fit almost all Netbooks & Laptops & even works in the PS/3! and Apple Macbook's too!

http://www.youtube.com/watch?v=p95uc6iGLaQ

• ATA Security Mode Feature Set
• SATA Native Command Queuing Feature
• ATA S.M.A.R.T. Feature Set
• TuMR/PMR head with FOD technology
• Serial ATA 3.0Gbps Interface Support
• Load/Unload Head Technology
• SilentSeek™
• NoiseGuard™

Stores Upto 2460 Action Packed Games
Stores Upto 284000 Digital Photo's (6Mpix)
Stores Upto 250000 MP3 Songs
Stores Upto 24000 CD Audio Songs
Stores Upto 76ours of Digital Video (DV)
Stores Upto 400 Hours of DVD Quality Video
Stores Upto 120 Hours of HD Quality Video

http://www.seagate.com/files/staticfiles/support/docs/samsung-ds/100698122c.pdf
Features http://www.seagate.com/files/staticfiles/support/docs/samsung-ds/100698122c.pdf

Specifications
Specifications
Capacity 1000 GB
Edition
Form Factor 2.5"
SSHD No
SSHD Flash Memory Size N/A
SSHD Flash Memory Type N/A
Height 9.5 mm
Rotation Speed 5400
Cache 8MB
Access Time 12 ms
Interface SATA II - 3Gb/s
Max. Operating Shock
Free-Fall Sensor No
NCQ Yes
Dimensions
Package Type
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
7 days
RTB Period:
1 months
Manufacturer Contact Details
Manufacturer:
Samsung
Telephone:
0330 (7267864)
TekSpek Guides
Installing XP
Installing XP
Date Issued: 20th Oct 2008

Installing Windows from scratch for the first time can be a daunting experience. Usually you’ve just successfully built your first home-made PC and the last thing you need is for the OS installation to slow you down, so here’s a guide to what you’ll see along the way installing Windows XP

Read More

PATA -vs- SATA
PATA -vs- SATA
Date Issued: 2nd Jul 2008

Serial ATA, or SATA, is a relatively new storage technology that is now being adopted in computers. It is the successor to Parallel ATA. SATA allows for faster transfers between the hard disk and the system, uses thinner cables and is easier to physically install

Read More

Reviews
Rated 4.8 out of 5 by 20 reviewers.
Rated 5 out of 5 by Great service from Scan This HD replaced the same drive which was starting to fail after 4 years of good service and it works very well in a HP G6 notebook. Very good value and excellent service from Scan - it took less than 24 hours from the order being placed to it being delivered. 06 May 2016
Rated 5 out of 5 by Great service and product. Placed an order for new hard drive from Scan on line, was kept informed every step of the way regarding delivery and even though I chose normal delivery it arrived 2, days later. Fitted drive worked like a dream! Have to say brilliant service would definitely use Scan again!! 01 April 2016
Rated 5 out of 5 by Works Perfectly Very fast delivery, packaged well and very easy to install. Been using for 2 months, no problems at all. Now please stop emailing me. Thank you 29 February 2016
Rated 5 out of 5 by Used in PS3 12Gb slim Excellent delivery as always, fitted to PS3 12Gb slim with adaptor. No problems using as data drive, instructions as per Sony site. 16 December 2015
Rated 5 out of 5 by Great service and response I placed the order allowing a few days for delivery and was delighted to see the part arrive the next day, installed it into the laptop and had recovered within a couple of hours. Wouldn't hesitate to recommend SCAN and would use it again. 11 June 2015
Rated 5 out of 5 by Product worked as expected. Order arrived quickly and was as described on website. Excellent service. 27 April 2015
Rated 5 out of 5 by Replacement drive for a Lenovo G580 It was physically a direct swap. I had to use a partition utility to match its partitions to the original backup DVD set I made at purchase time. I am able to use the drives full capacity. Works perfectly. 19 April 2015
Rated 5 out of 5 by 1TB Seagate ST1000LM024 Killed my old hd with an earth magnet. This new drive is an exact make and model, so i'm not expecting any problems. 18 April 2015
  • 2016-05-20 T12:52:27.269-05:00
  • bvseo_lps, prod_bvrr, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasreviews, tv_20, tr_20
  • loc_en_US, sid_40336, prod, sort_default
2 next>>
Questions & Answers
(1 Question : 9 Answers)

Product Q&A

Ask your questions. Share your answers.



« Back


Has staff answer
Has expert answer

9 answers

500GB Formatted Capacity Per Disc

What does this actually mean? Is half the capacity of the drive wasted? Or can I make two 500GB partitions on one drive?
Age: 18 to 24
Gender: Male
2 years, 9 months ago
Customer avatar
by
Manchester, UK
Read all my Q&A

Please wait while more information about JDCalvert is loaded.
Additional information about JDCalvert could not be loaded.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers

Answer:
I partitioned mine as one drive and it reports 931GB.
2 years, 6 months ago
Customer avatar
by
Read all my Q&A

Please wait while more information about janenrj is loaded.
Additional information about janenrj could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
When you install Windows onto your computer like Win 7, you have the option of putting a partition on the drive. You can make a 1TB drive into 2 X 500 Gig. I never like to partition drives as most people have no idea they have another 500 Gig. Some people use the other 500 Gig to backup documents to it, but if the C: drive fails due to hardware issue, then getting data back from the other 500 Gig partition (D:) could be impossible.

I hope this helps ;-)
Age: 45 to 54
Gender: Male
2 years, 2 months ago
Customer avatar
by
Worksop, Nottinghamshire, UK
Read all my Q&A

Please wait while more information about TimsPCs is loaded.
Additional information about TimsPCs could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
These drives have two platters, each a notional 500GB. You can make as many partitions as you want. The advantage of high capacity platters (500GB is pretty high for a laptop drive) is they have high areal density which reduces seek times.

Formatted capacity is a different concept. A 1TB drive should have 1,000 GB except it doesn't. This goes back to decimal v binary systems as there are 1,024 bytes in a megabyte not 1,000 as a decimal system assumes. The true size of drives in GB as recognised by the operating system is about 7% smaller. This 1TB drive is in reality about 931GB. The formatted size of SSDs is smaller still as they normally have to set aside some volume for overprovisioning. This doesn't apply to hard drives.

To summarise this 1TB drive has a capacity of 931GB which you can leave as a single partition (which most do) or subdivide into as many partitions as your software will allow.

Hope this helps

Mag
2 years, 7 months ago
Customer avatar
by
London, UK
Read all my Q&A

Please wait while more information about MagR is loaded.
Additional information about MagR could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
Further to my answer above I need to correct a mistake - the binary system has 1,024 bytes in a kilobyte not a megabyte as I said (then 1,024 kilobytes in a megabyte and 1,024 megabytes in a gigabyte which is where the 7% difference comes from).
2 years, 7 months ago
Customer avatar
by
London, UK
Read all my Q&A

Please wait while more information about MagR is loaded.
Additional information about MagR could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
No, on ps4 I got little bit over 900gb. It can't be half of the drive.
2 years, 5 months ago
Customer avatar
by
Read all my Q&A

Please wait while more information about jankesdh is loaded.
Additional information about jankesdh could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
With any drive a portion of the disk space will be set aside for system use and therefore not be available for the user. If you wanted to reserve two partitions you should refer to the available capacity when deciding how much space to allocate to multiple partitions.
Age: 55 to 64
Gender: Male
11 months ago
Customer avatar
by
England, UK
Read all my Q&A

Please wait while more information about Tom52 is loaded.
Additional information about Tom52 could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
I installed this drive to a ps3 and get the full capacity formatted as 1 drive.
2 years, 5 months ago
Customer avatar
by
Norwich, Norfolk, UK
Read all my Q&A

Please wait while more information about Zxjon is loaded.
Additional information about Zxjon could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
No, what it is referring to is the individual platters in the drive. This drive is made up of two 500GB platters equaling 1TB in total. Once Formatted you should have one partition of roughly 931GB
Age: 18 to 24
Gender: Male
2 years, 9 months ago
Customer avatar
by
Bolton, UK
Read all my Q&A

Please wait while more information about Johny is loaded.
Additional information about Johny could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
Yes you can still use the full drive capacity creating 2 x 500 GB segments approx (470GB) after formatting and allowing for a small amount of capacity required for system approx 100meg Windows OS.
Age: 55 to 64
Gender: Male
1 month, 2 weeks ago
Customer avatar
by
Bernie01
Read all my Q&A

Please wait while more information about Bernie01 is loaded.
Additional information about Bernie01 could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0
