Hot Seller
Scan code: LN89611 Manufacturer code: MZ-V7E1T0BW

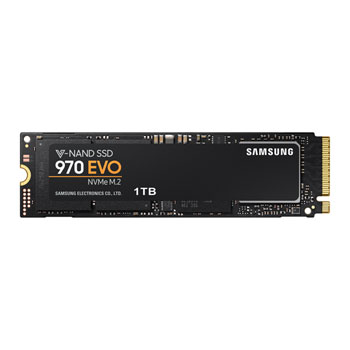

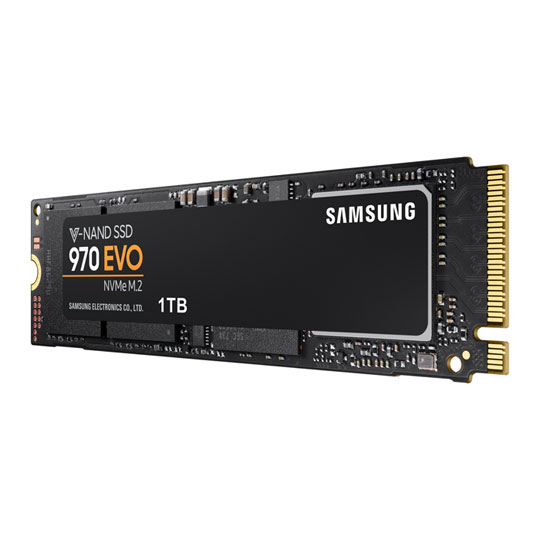

Samsung 970 EVO 1TB M.2 PCIe NVMe SSD/Solid State Drive

1TB Samsung 970 EVO, M.2 (2280) PCIe 3.0 (x4) NVMe SSD, Phoenix, MLC V-NAND, 3400MB/s Read, 2500MB/s Write, 500k/450k

Free Xclio Computer Cleaning Kit Worth £3.98 LN96557
Thumbnail 1 : Samsung 970 EVO 1TB M.2 PCIe NVMe SSD/Solid State Drive Thumbnail 2 : Samsung 970 EVO 1TB M.2 PCIe NVMe SSD/Solid State Drive Thumbnail 3 : Samsung 970 EVO 1TB M.2 PCIe NVMe SSD/Solid State Drive Samsung 970 EVO 1TB M.2 PCIe NVMe SSD/Solid State Drive : video thumbnail 1
Scan code: LN89611 Manufacturer code: MZ-V7E1T0BW
There are 8 people viewing this product
From £15.19 / month (APR 14.9%)
Monthly Payment: £29.36
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £169.19
Total inc. interest: £176.15
Monthly Payment: £15.19
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £169.19
Total inc. interest: £182.26
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 22nd Jan to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together


Samsung 500GB EVO SSD

The Samsung SSD you can Trust Accelerate into the next generation of computing with the Samsung 970 EVO. Known to deliver breakthrough speeds, best-in-class reliability, and a broad range of capacity options up to 2TB. The latest V-NAND, new Phoenix controller, and Intelligent TurboWrite technology enhance high-end gaming and 4K & 3D graphic editing. The 970 EVO is guaranteed to meet all of your computing needs. You can rest assured with the 5-year limited warranty and exceptional endurance made possible by Samsung’s reputation for quality.



PCIe 3.0NVMe

3400MB/sSequential Read

2500MB/sSequential Write

500K IOPSRandom Read

450K IOPSRandom Write

Exceptional Transfer Speed and Plenty of Capacity The Samsung 970 EVO series NVMe SSDs deliver high performance, quick system boot ups, blazing fast transfer speeds and ultimate reliability in a compact form factor.

Other Solid State Drives in the Samsung 970 EVO NVMe PCIe range:

250GB 500GB 2TB

Experience NVMe Speed


Intelligent TurboWrite Technology The 970 EVO transforms high-end gaming rigs and streamlines graphic intensive workstations with the new Phoenix controller and Intelligent TurboWrite technology. Get stunning sequential read/write speeds of 3,500/2,500 MB/s, up to 32% faster writes than the previous generation. The 970 EVO has more consistent speeds even with heavy workloads and multi-tasking.

System Design Flexibility


Superior Performance The 970 EVO enables convenient storage expansion across many different devices. The 970 EVO comes in a broad range of capacity options, including a single-sided 2TB version, made possible through Samsung’s latest 512Gb V-NAND technology. In addition, the 970 EVO offers high power efficiency as well as exceptional speeds, making it the ideal solution to use with application ranging from ultra-thin computing to high-performance workstations.

Exceptional Endurance

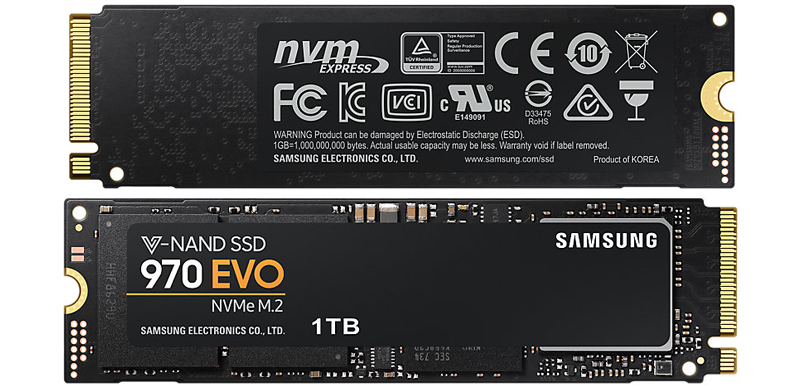

Form Factors

Advanced Data Encryption The 970 EVO provides multiple advanced data encryption features. Self-Encrypting Drive security technology will help keep data safe at all times. The 970 EVO includes an AES 256-bit hardware-based encryption engine to ensure that your personal files remain secure. Being hardware-based, the encryption engine secures your data without the performance degradation that you may experience with software-based encryption. Also, the 970 EVO is compliant with various advanced security management solutions (TCG Opal and Encrypted Drive-IEEE1667).

Samsung Magician Software

Management softwareSamsung Magician software is designed to help you manage your SSD with a simple and intuitive user interface.

Firmware UpdateGet notifications when new firmware is released, and easily install updates for enhanced performance, stability, and compatibility.

Performance BenchmarkCheck your SSD's sequential and random read/write speeds, so you can maintain superb performance.

Data SecurityProtect data by selecting security options. The 970 EVO supports AES 256-bit encryption and is compliant with TCG Opal and IEEE 1667.

Capacity 1TB
Edition Samsung SSD 970 EVO
Form Factor M.2 (2280)
Height 2.38 mm
Interface PCIe 3.0 (x4)
Host Controller Interface NVMe 1.3
Controller Samsung Phoenix
Flash Memory Type 3-bit MLC V-NAND
Max. Read 3400 MB/s
Max. Write 2500 MB/s
DRAM Cache Memory 1GB
DRAM Cache Memory Type LPDDR4
Max. Random Read 4K 500,000 IOPS
Max. Random Write 4K 450,000 IOPS
Latency N/A
Special Features
  • AES 256-bit Full Disk Encryption
  • Dynamic Thermal Guard (DTG) Technology
  • Encrypted Drive(IEEE1667)
  • Garbage Collection
  • Intelligent TurboWrite
  • S.M.A.R.T Support
  • Samsung Data Migration Software Support
  • Samsung Magician Software Support
  • TCG/Opal V2.0
  • TRIM support (O/S dependent)
Power Consumption (active) 6W
Max. Endurance Rating 600TB TBW
MTBF 1,500,000 Hours
Max. Operating Vibration
Max. Non-operating Vibration 20~2000Hz, 20G
Max. Operating Shock
Max. Non-operating Shock 1500G(Gravity), duration: 0.5ms, 3 axis
Connectivity 1 x M.2 (PCIe)
OS Support Windows OS
Bracket N/A
Dimensions 22.15 x 2.38 x 80.15 mm (WxHxD)
Package Type Retail
Additional Information
Scan Code LN89611
Model Number MZ-V7E1T0BW
GTIN 8801643205300

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

60 months
DOA Period:
7 days
RTB Period:
1 months
Manufacturer Contact Details
0330 (7267864)
Loading Please Wait

Please wait . . .

TekSpek Guides
SSD Form Factors
SSD Form Factors
Date Issued: 27th Nov 2017

The arrival of the solid-state drive (SSD) has revolutionised the speed at which modern PCs perform common tasks. This is because SSDs have no moving parts, compared to larger, bulkier mechanical drives, thus they store information on memory chips. This means that accesses, reads and writes are many, many times faster

Read More

1TB Samsung 970 EVO, M.2 (2280) PCIe 3.0 (x4) NVMe SSD, Phoenix, MLC V-NAND, 3400MB/s Read, 2500MB/s Write, 500k/450k is rated 5.0 out of 5 by 6.
Rated 5 out of 5 by from Fast and furious This is true speed. My Old EVO 860 SATA topped out around 500MB/s read and write, compared to this beast, the Samsung EVO 970, in the M.2 slot which hits almost 3000MB/s read and 2500MB/s write rendering 4k videos Fast and reliable I can highly recommend this stick
Date published: 2020-01-19
Rated 5 out of 5 by from Great, just great! Came well secure and was easy to install. About the SSD it's so fast, it took 10-20 seconds to start windows.
Date published: 2019-05-03
Rated 5 out of 5 by from AAAA++++ Works fine nice n fast had to get drivers from Samsung for Win 7, dual boot Win 10 setup. Used with Alaska PCI adapter, had to swap around VGA to get it recognised on X58 mb Not recognised in X58ud3r bios- too old, shows in windows though.
Date published: 2019-04-09
Rated 5 out of 5 by from Super fast Alternative Harddrive Replaced my ssd with drive and WOW what an improvement in boot times and read write times. Unbelievable performance boost for not that much money. And Scan were extremely fast in their delivery time so can’t recommend the service and the product enough 10 stars all round
Date published: 2019-04-01
Rated 5 out of 5 by from Very fast !!! I have just built a new computer of which this new Samsung drive is my only drive. Windows installed in around 5-10 minutes, really fast and now everything loads up instantly. Games load quicker than I've ever seen ! The software, Samsung Magician Magic is a nice touch, very informative and you can perform benchmarks and diagnostics, all running as it should be. Overall very happy, maybe a little pricey for an SSD, but you get what you pay for. Scan service, top notch as usual, thank you :D
Date published: 2018-11-30
Rated 5 out of 5 by from Great product, massive improvement Tests done on 6850K running at 4.2GHz. Migration software super easy to use. I can feel the improvement in speed comparing to my hyperx PCIe 2.0X4 SSD.
Date published: 2018-05-20
