Scan code: LN74415 Manufacturer code: SFPCMM1M

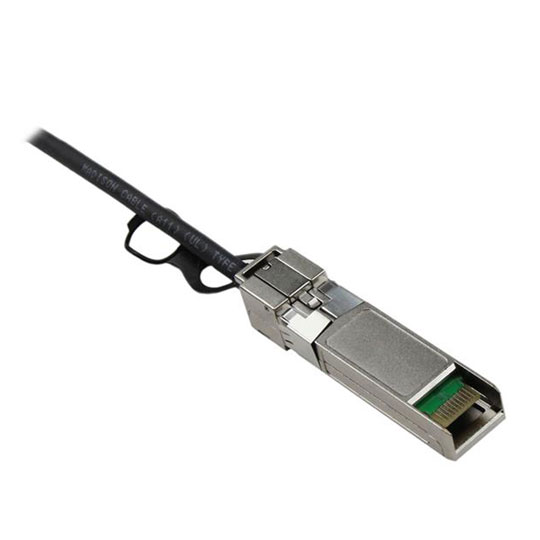

10GbE 1m Cisco Compatible SFP+ 10-Gigabit Ethernet Passive Twinax Direct Attach Cable from Startech

1m StarTech Cisco Compatible SFP+ Ethernet Passive Twinax Direct Attach Cable, 10GbE, 30AWG, 100 Ohm impedance

Thumbnail 1 : 10GbE 1m Cisco Compatible SFP+ 10-Gigabit Ethernet Passive Twinax Direct Attach Cable from Startech Thumbnail 2 : 10GbE 1m Cisco Compatible SFP+ 10-Gigabit Ethernet Passive Twinax Direct Attach Cable from Startech Thumbnail 3 : 10GbE 1m Cisco Compatible SFP+ 10-Gigabit Ethernet Passive Twinax Direct Attach Cable from Startech
Scan code: LN74415 Manufacturer code: SFPCMM1M
£30.49
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 13th Dec 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview The SFPCMM1M Cisco Compatible 1m SFP+ cable is a fully hot pluggable, direct attach cable, supporting 10 Gigabit Ethernet and Fiber Channel applications connected through (Small Form Factor Pluggable) SFP+ ports.

Designed for short length, high speed interconnects, this low power, low latency Twinax cable is a cost-effective alternative to fiber optic cable assemblies and is intended for short distance applications such as point-to-point in-rack and across rack network switch/server connections.

Backed by our 2-year warranty, this 10GBASE-CU SFP+ Cable is compliant with MSA (Multi-Source Agreement) standards, making it a reliable replacement SFP-H10GB-CU1M cable.

Suitable Applications:
- Use in 10Gb Ethernet and Fiber Channel applications.
- Point-to-point in-rack and across rack network switch/server connections (Storage Area Networks (SAN), Network Attached Storage (NAS), Storage Servers, etc.). Features • Compatible with Cisco equipment.
• Compliant with SFP+ MSA Multi-Source Agreement standards.
• Support for 1x, 2x, 4x and 8x Fiber Channel data rates.
• Compliant with SFF 8431 connector standards.
• 30AWG, 100 Ohm impedance.
• Support for multi-gigabit data rates up to 10.5Gbps.
• Hot-swappable with fiber optic modules.
• Low Power consumption <0.5W.
• Quick release latching SFP+ connectors.
Specifications
Edition
Form Factor
Total Network Ports
PoE Support Type
No. of Ports Providing PoE
Other Non-Network Ports
Switching Capacity
Non-Blocking Throughput
Forwarding Rate
MAC Address Table Size
Network Capacity
Built-in Flash Memory
RAM Memory
Network Protocols
Acoustic Noise
Max. Power Consumption
Max. PoE Wattage per Port
Mean Time Between Failures (MTBF)
Power Supply
Material
Includes
Dimensions (WxHxD)
Weight 0.80 kg
