Scan code: LN82168 Manufacturer code: 100-506061

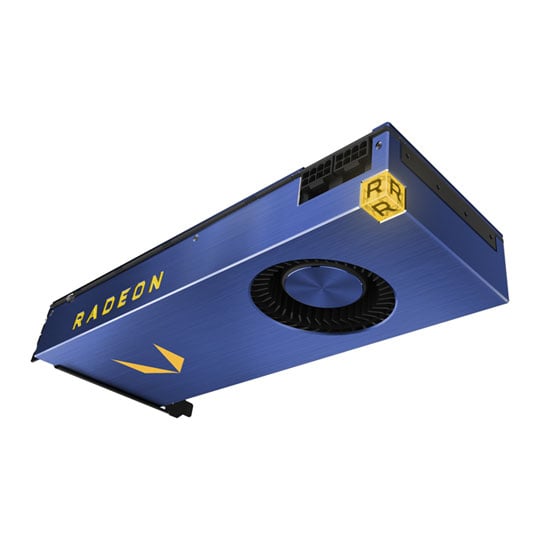

AMD Radeon Vega Frontier AIR 16GB Pro Workstation Graphics Card

16GB AMD Radeon Vega Frontier Edition, Air-Cooled, HBC, 4096 Streams, 26.2TFLOPS FP16, 13.1TFLOPS FP32, 3x DP/HDMI

Thumbnail 1 : AMD Radeon Vega Frontier AIR 16GB Pro Workstation Graphics Card AMD Radeon Vega Frontier AIR 16GB Pro Workstation Graphics Card : video thumbnail 1 AMD Radeon Vega Frontier AIR 16GB Pro Workstation Graphics Card : video thumbnail 2
Scan code: LN82168 Manufacturer code: 100-506061
£988.99Item currently awaiting an ETA
Pre order
From £47.47 / month (APR 14.9%)
Monthly Payment: £171.62
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £988.99
Total inc. interest: £1,029.67
Monthly Payment: £88.79
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £988.99
Total inc. interest: £1,065.40
Monthly Payment: £61.22
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £988.99
Total inc. interest: £1,101.94
Monthly Payment: £47.47
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £988.99
Total inc. interest: £1,139.28
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £24.70 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

16GB HBM2 Radeon Vega Air-Cooled VR Graphics Card

AMD Vega Card

The Radeon™ Vega Frontier Edition The AMD Radeon Vega Frontier Edition is AMD's first consumer aimed GPU to utilise the new HBM2 standard, this will allow them to double the capacity per die and clock per pin. The Vega FE has 16GB high-bandwidth cache with 4096 stream processes to allow exeptional graphic performance, with figures of 25 TFLOPS peak FP16 compute performance and 13 TFLOPS at FP32 the Radeon Vega out performs most consumer graphics cards. All this power is encased in a stylish blue brushed metel effect with yello accents.

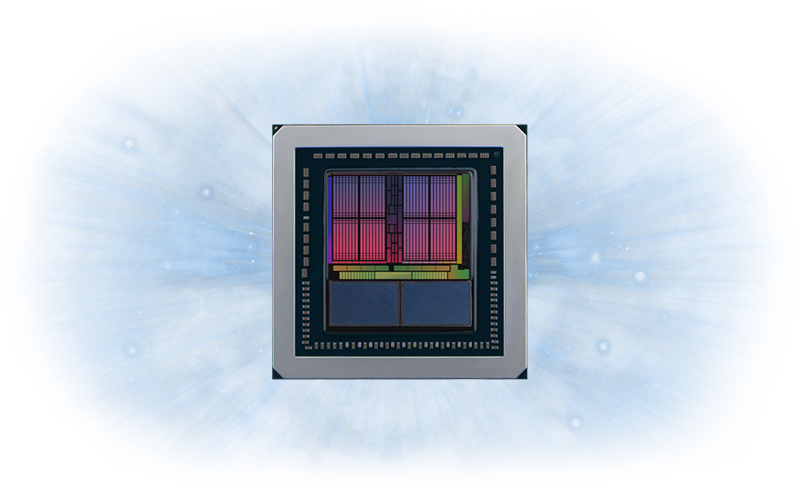

AMD Compute Power

Vega Chip

AMD 'Vega' GPU Architecture AMD Vega is purpose built to handly large data sets along a wide range of computational workloads. The Frontier Edition is AMDs first card to feature the incredible Vega architecture, with the ability to get speeds of up to 13.1 TFLOPS of peak single-precision floating-point performance, this tremendous compute power is paramount where high performance is needed, from visualizing complex simulations to rendering video effects.

16GB HBM2 Memory

HBM2 Memory

High-Bandwidth Cache Controller The Radeon Vega has a state of the art memory system that removes the capacity limitations that traditional GPU memory has, this is all thanks to its fine-grained memory movement controlled by the high-bandwidth cache controller. The Vega processors enable creators to work with much larger and detailed models in real time. The 16GB of HBM2 memory is an extremely large and ultra-fast cache for external memory or storage devices. This allows the Radeon Vega to access terabytes of graphics memory, making it ideal for large scale data sets.

AMD Graphics Engine

Vega Graphics Engine

Enhanced Geometry Pixel Engine The Vega Frontier Edition offers 2x peak geometry throughput per clock to significantly speed up modelling and design workflows in various rendering engines. The updated rasterizer technology improves cache locality and overdraw, enhancing rendering efficiency and leaving the headroom to crank up quality settings while maintaining smooth 3D rendering. Vega also supports 10-bits color per color channel for color-critical task, it also supports the latest programming interfaces for graphics and compute tasks.

Vega Software Benifits

Vega Software Performance

Performance in Game Development and Rendering The Radeon Vega GPU can deliver up to 172% faster performance than the NVIDIA Titan Xp when it comes to game development. When it comes to using Maya coupled with the Radeon ProRender plug-in TWO Vega Frontier Edition ges up to 91% faster rendering than just one Radeon Vega.

VR on the Vega GPU

Vega VR Ready

Virtual Reality Performance The Radeon Vega Frontier Edition provides an ideal VR experience for the above workflows, with its performance being able to optimize the benefits provided by Unreal Engine’s VR-optimized Forward Renderer, the integration of AMD LiquidVR technology, and support for Oculus’ Asynchronous Spacewarp (ASW) and SteamVR’s Asynchronous Reprojection technologies. The AMD Radeon Vega is the fastest Radeon VR Ready Creator Graphics Card.

Specifications
Chipset Radeon Vega Frontier Edition
Edition Frontier Edition
Manufacturing Process 14 nm
Microarchitecture Vega
Streams 4096
Core Clock 1382 MHz
Boost Clock 1600 MHz
Memory Size 16GB
Memory Type HBC
Memory Clock
Memory Speed (Effective with DDR) 945 MHz
Memory Data Rate 1.89 Gb/s
Memory Bus 2048 Bit
Memory Bandwidth 483 GB/s
Peak Half Precision Compute Performance
Peak Single Precision Compute Performance
Cooling Solution Single Fan (1)
Cooler Design AMD Reference Design Blower Fan
Fitted/Included Backplate Yes
Interface PCIe 3.0 (x16)
Connectivity
  • 3 x DisplayPort 1.4
  • 1 x HDMI 2.0
Maximum Digital Resolution 7680x4320 (8K UHD)
Maximum Analog (VGA) Resolution N/A
Max. Concurrent Displays 4 Displays
AMD CrossFire Support Multi-GPU Compatible
AMD Freesync Support Yes
AMD FreeSync Version FreeSync™ 2
Microsoft DirectX Support 12.1 API
HDR Support Yes
Width Dual Slot
Low Profile Support N/A
Graphics Card TDP/Power 300 W
Graphics Card Power Connectors 2 x 8-pin PCIe
Minimum Recommended PSU 850 W
Maximum GPU Temperature
Dimensions
Package Type Retail
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
01276 932318
