Scan code: LN98157 Manufacturer code: TL-SG1016PE

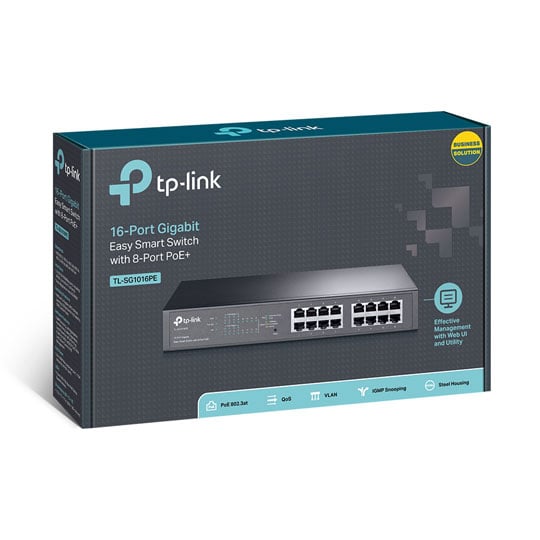

TP-LINK 16-Port Gigabit Easy Smart PoE Switch

16 Port TP-LINK TL-SG1016PE, Gigabit Easy Smart PoE Switch with 8-port PoE+, 16x 10/100/1000Mbps, Upto 110W for PoE+

Thumbnail 1 : TP-LINK 16-Port Gigabit Easy Smart PoE Switch Thumbnail 2 : TP-LINK 16-Port Gigabit Easy Smart PoE Switch Thumbnail 3 : TP-LINK 16-Port Gigabit Easy Smart PoE Switch Thumbnail 4 : TP-LINK 16-Port Gigabit Easy Smart PoE Switch
Scan code: LN98157 Manufacturer code: TL-SG1016PE
£143.99
From £12.93 / month (APR 14.9%)
Monthly Payment: £24.99
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £143.99
Total inc. interest: £149.91
Monthly Payment: £12.93
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £143.99
Total inc. interest: £155.13
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 17th Jul 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview What This Product Does
The TL-SG1016PE is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 110W, up to 30W per port, TL-SG1016PE can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.

How This Product Works
8 ports of TL-SG1016PE support Power over Ethernet Plus (PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). In this situation, the electrical power is transmitted along with data in a single cable, allowing you to expand your network where there are electrical cables or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones.

Overload Arrangement
TL-SG1016PE has a priority function which helps protect the system when its power is overloaded. If all PoE+ devices’ power consumption is greater than or equal to 110W, a priority will be arranged among the 16 PoE+ ports, at which point the system will cut off the power of the lowest-priority port.

Port Priority Function
Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port F > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4 and 7 are using 30W (maximum power per port is 30W, the system power is 120W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power of Port 7 in response to the power exceeding the 120W limit., This means Port 1, 2 and 4 will use 30W, and Port 3 will use 25W, with no power will be supplied to Port 7 as it has the lowest designated priority among the ports in use.

Easy To Use
TL-SG1016PE is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-LINK TL-SG1016PE 16-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network.
Features • 16x 10/100/1000Mbps RJ45 ports
• Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
• With a total PoE power budget of 110W, up to 30W per port
• Works with IEEE 802.3af/at compliant devices, expanding home and office networks
• Simple network set-up on top of plug-and-play connectivity
• Web-based user interface and management utility simplify configuration
Specifications
Edition EasySmart
Form Factor Desktop / 1U Rackmount
Total Network Ports 16 x 10/100/1000 (Gigabit) RJ-45
PoE Support Type
No. of Ports Providing PoE 8 x 10/100/1000 (Gigabit) RJ-45
Other Non-Network Ports
Switching Capacity 32Gbps
Non-Blocking Throughput
Forwarding Rate 23.8Mbps
MAC Address Table Size 8K Entries
Network Capacity
Built-in Flash Memory
RAM Memory
Network Protocols
  • IEEE 802.1p
  • IEEE 802.1Q
  • IEEE 802.3ab
  • IEEE 802.3i
  • IEEE 802.3u
  • IEEE 802.3x
Acoustic Noise
Max. Power Consumption 131.42 W
Max. PoE Wattage per Port 30 W
Mean Time Between Failures (MTBF)
Power Supply Internal AC Power Supply
Material
Includes Rack Mounting Brackets
Dimensions (WxHxD) 294 x 180 x 44 mm
Weight
Additional Information
Scan Code LN98157
Model Number TL-SG1016PE
GTIN 6935364082925
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
120 months
Type:
Direct
DOA Period:
28 days
Manufacturer Contact Details
Manufacturer:
TP-LINK
Telephone:
0845 147 0017 (UK) or 0818 229 000 (Ireland)
