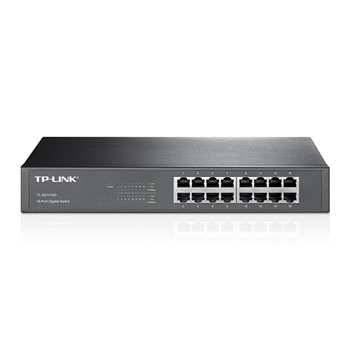

TP-LINK 16 Port Rackmount Unmanaged Gigabit Network/LAN Switch
16 Port TP-LINK TL-SG1016D, Gigabit Desktop/Rackmount Switch, Unmanaged ,10/100/1000, 32Gbps Switching, PnP, 802.3x
TP-LINK Green Technology
This new generation TL-SG1016D Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.
All 16 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1016D forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make The TL-SG1016D work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly.
Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Features • 16 10/100/1000Mbps ports.
• Innovative energy-efficient technology saves power up to 15%.
• Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.
• Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput.
• 32Gbps Switching Capacity.
• 10K Jumbo frame improves performance of large data transfers.
• Auto-MDI/MDIX eliminates the need for crossover cables.
• Supports MAC address auto-learning and auto-aging.
• Store and forward Switching scheme.
• Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware.
• Plug and Play design simplifies installation.
|Total Network Ports||16 x Gigabit 10/100/1000|
|PoE Support Type|
|No. of Ports Providing PoE|
|Other Non-Network Ports|
|MAC Address Table Size|
|Built-in Flash Memory||10KB|
|Max. Power Consumption||13.3 W|
|Max. PoE Wattage per Port|
|Mean Time Between Failures (MTBF)|
|Dimensions (WxHxD)||294 x 44 x 180 mm|
Please note your statutory rights are not affected.
For further information regarding Scan's warranty procedure please see our terms and conditions
- 24 months
- DOA Period:
- 28 days
- RTB Period:
- 12 months
- 0845 147 0017
UK Users Tel:
0845 147 0017
24 hours a day, 7 days a week
Procedures in Detail
Step 1: Contact us through our Technical Support Line 0845 147 0017 (UK) or 0818 229 000 (Ireland), a representative will help you with remote troubleshooting. If the product is judged to be defective, the representative will provide you with a unique RMA number. Customer contact and product info will be requested during this process.
Step 2: An email explaining the RMA process will be sent from TP-LINK UK.
Step 3: Send defective product, purchase receipt along with RMA number to TP-LINK.
Note: Customers are responsible for the shipping fee in Step 3.
Step 4) Once the defective product is received, TP-LINK UK Limited will send back a replacement and inform customer of the tracking number. The warranty starts from the purchase date of your original unit and lasts for 2+1 years on SOHO products regardless of how many replacements are made.
Note: TP-LINK UK Limited will pay the one way shipping fee in Step 4
PLEASE NOTE: If you register your product with TP-LINK then you can enjoy a free 3rd year warranty.
Sign in portal http://warranty.uk.tp-link.com/SignIn.aspx
Warranty information http://uk.tp-link.com/rma.html
