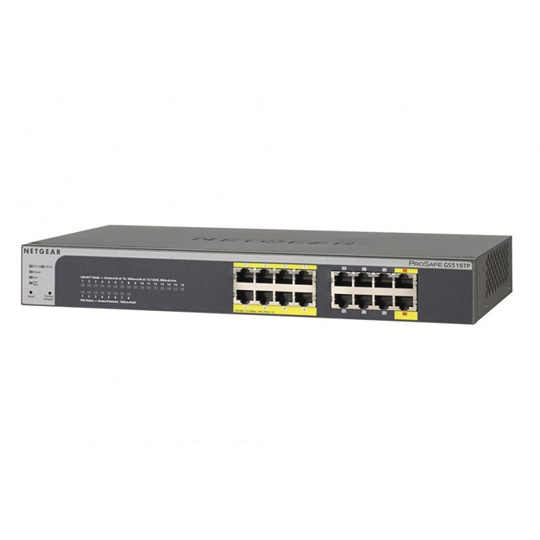

Netgear ProSAFE 16 Port with 8 PoE/PoE+ 2 PD Ports Gigabit Smart Managed Pro Switch
Scan code: LN58890
Manufacturer code: GS516TP-100EUS
End Of Life
Netgear ProSAFE 16 Port with 8 PoE/PoE+ 2 PD Ports Gigabit Smart Managed Pro Switch
16 Port Netgear GS516TP ProSAFE with 8 PoE/PoE+ Gigabit Smart Managed Switch and 2 PD Ports 90W
Scan code:
LN58890
Manufacturer code:
GS516TP-100EUS
This product is no longer available to purchase.
Email me when the availability or price changes
- SCANPROTECT Protect against installation damage for 28 days.
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.
Product Overview
8 PoE/PoE+ Ports and 8 Gigabit Ports all Managed and with 90W PSU
NETGEAR Smart Switches offer powerful L2 and L2+ features, better PoE functionality, and enhanced performance and usability. They are purposely designed for converged networks where voice, video, data are all carried on a single network platform. These switches are optimized for network efficiency, operational cost savings, and ease of management. This series of switches offers 8 to 52 port configurations both in Fast Ethernet and Gigabit Ethernet with PoE options. All switches come with Gigabit SFP ports for fiber connectivity. These switches are the ideal solution for businesses looking for the best combination of features, performance, and value.
Designed for Converged Networks, Big or Small
• PoE and PoE+ Support available for all configurations perfect & Very Popular for CCTV Installs
• Auto Voice VLAN for fast and reliable deployment of VoIP
• Auto Video VLAN, following the same concept of Auto Voice, help speed up your deployment of IP-based surveillance systems
• Static routing, helps route internal traffic for more efficient use of network resources
• IGMP and MLD snooping, provides advanced multicast filtering
Network Development Made Easy
• Auto Voice VLAN for easy development of VoIP
• Auto Video for simple deployment of IP Surveillance
• ACL Wizard for a guided tour to set up your network access control
• Smart Control Center, a powerful tool for multi-switch discovery, deployment, monitoring and firmware upgrades
• PoE Timer for scheduling the on/off time of your PoE powered devices
ProSAFE® Gigabit PoE/PoE+ Smart Switch
Gigabit ports 16
SFP ports N/A
Number of PoE ports 8/ 2 PD ports
PoE+ (802.3at)
Total PoE Power budget (Watts) AC mode with Main AC power source: maximum 76W
DC mode with AT+AT PD power source: maximum 22W
DC mode with AT+AF PD power source: maximum 11W
Max MAC entries 8K
VLAN (Number Supported) 256
VLAN routing Yes
Dynamic VLAN assignment In switch mode only
MLD Snooping Yes
Static route 32
Host ARP table 1024 in Switch mode, approximately 100 in Router mode
EEE Yes
Internal/External 1024 in Switch mode, approximately 100 in Router mode
Max consumption (Watts) 92.1W
FAN 1
Acoustic Noise Level @25C (dBA) 24.6
Operating Temperature 0° to 50° C
MTBF 479,350 hrs
Weight (kg) 2.21kg
Dimensions (WxDxH) mm 328 x 169 x 43 mm
8 PoE/PoE+ Ports and 8 Gigabit Ports all Managed and with 90W PSU
NETGEAR Smart Switches offer powerful L2 and L2+ features, better PoE functionality, and enhanced performance and usability. They are purposely designed for converged networks where voice, video, data are all carried on a single network platform. These switches are optimized for network efficiency, operational cost savings, and ease of management. This series of switches offers 8 to 52 port configurations both in Fast Ethernet and Gigabit Ethernet with PoE options. All switches come with Gigabit SFP ports for fiber connectivity. These switches are the ideal solution for businesses looking for the best combination of features, performance, and value.
Designed for Converged Networks, Big or Small
• PoE and PoE+ Support available for all configurations perfect & Very Popular for CCTV Installs
• Auto Voice VLAN for fast and reliable deployment of VoIP
• Auto Video VLAN, following the same concept of Auto Voice, help speed up your deployment of IP-based surveillance systems
• Static routing, helps route internal traffic for more efficient use of network resources
• IGMP and MLD snooping, provides advanced multicast filtering
Network Development Made Easy
• Auto Voice VLAN for easy development of VoIP
• Auto Video for simple deployment of IP Surveillance
• ACL Wizard for a guided tour to set up your network access control
• Smart Control Center, a powerful tool for multi-switch discovery, deployment, monitoring and firmware upgrades
• PoE Timer for scheduling the on/off time of your PoE powered devices
ProSAFE® Gigabit PoE/PoE+ Smart Switch
Gigabit ports 16
SFP ports N/A
Number of PoE ports 8/ 2 PD ports
PoE+ (802.3at)
Total PoE Power budget (Watts) AC mode with Main AC power source: maximum 76W
DC mode with AT+AT PD power source: maximum 22W
DC mode with AT+AF PD power source: maximum 11W
Max MAC entries 8K
VLAN (Number Supported) 256
VLAN routing Yes
Dynamic VLAN assignment In switch mode only
MLD Snooping Yes
Static route 32
Host ARP table 1024 in Switch mode, approximately 100 in Router mode
EEE Yes
Internal/External 1024 in Switch mode, approximately 100 in Router mode
Max consumption (Watts) 92.1W
FAN 1
Acoustic Noise Level @25C (dBA) 24.6
Operating Temperature 0° to 50° C
MTBF 479,350 hrs
Weight (kg) 2.21kg
Dimensions (WxDxH) mm 328 x 169 x 43 mm
