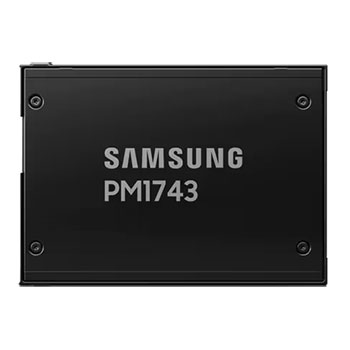

Samsung Enterprise PM1743 15TB 2.5" U.2 PCIe 5.0 SSD/Solid State Drive

15.36TB Samsung PM1743 SSD, 2.5" U.2 PCIe 5.0 (x4) NVMe SSD, 3D TLC, 14000MB/s Read, 7100MB/s Write, 2500K/360K IOPS

Scan code: LN146835 Manufacturer code: MZWLO15THBLA-00A07
Order now and get it tomorrow, Wed 17th Jul
Was: £2,701.99
£2,609.99
Get it Tomorrow, 17 JulIn stock
FREE DELIVERY ON YOUR ENTIRE BASKET
From £73.59 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £236.46
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £2,609.99
Total inc. interest: £2,837.47
Monthly Payment: £127.44
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £2,609.99
Total inc. interest: £3,058.54
Monthly Payment: £91.40
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £2,609.99
Total inc. interest: £3,290.18
Monthly Payment: £73.59
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £2,609.99
Total inc. interest: £3,532.33
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £69.36 / month (APR 19.9%)
Delivery Options
  • By DPD On 17th Jul to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Product Overview

PM1743

The Samsung SSD PM1743 presents outstanding performance with instant responsiveness to the host system, by applying the Peripheral Component Interconnect Express (PCIe®) 5.0 interface standard, as well as highly efficient Non-Volatile Memory Express (NVMeTM) Protocol.
The Samsung SSD PM1743 delivers wide bandwidth of (14GB/s) for sequential read speed and (7.1GB/s) for sequential write speed under 25W power.
By combining the enhanced reliability Samsung NAND Flash memory silicon with NAND Flash management technologies, the Samsung SSD PM1743 delivers the extended endurance of up to 1 Drive Writes Per Day (DWPD) for 5 years, which is suitable for enterprise applications, in one 2.5-inch form factor lineup: 1.92TB, 3.84TB, 7.68TB, 15.36TB.
In addition, the Samsung SSD PM1743 supports Hot Plug insertion and removal feature by employing the efficient circuitry for Power Loss Protection (PLP) and handling inrush current. PLP solution can guarantee that data issued by the host system are written to the storage media without any loss in the event of sudden power off or sudden power failure. Inrush current handler can protect the internal components from the electrical and physical damages.

Features

• PCI Express® Gen.5.
• PCI Express® Base Specification Rev. 5.0.
• NVM Express Specification Rev. 1.4.
• NVM Express Management Interface Specification Rev. 1.1b.
• Single port x4 lanes/Dual port x2 lanes.
• Enhanced Power-Loss Data Protection.
• LDPC ECC.
• End-to-End Data Protection.
• Support Deallocate (a.k.a. TRIM) Command.
• Support PCI Express® AER (Advanced Error Reporting).
• Support SSD Enhanced S.M.A.R.T. Feature Set.
• Hardware based AES-XTS 256-bit Encryption Engine.
• RoHS / Halogen-Free Compliant.
• TCG Opal 2.01 Compliant.
• Static and Dynamic Wear Levelling.
• Support SMBus/NVMe MI.
• OCP 2.0 Compliant.

Specifications
Capacity 15.36TB
Edition PM1743
Form Factor 2.5"
Height 15 mm
Interface U.2
Host Controller Interface NVMe 1.4
Controller
Flash Memory Type None
Max. Read 14000 MB/s
Max. Write 7100 MB/s
DRAM Cache Memory N/A
DRAM Cache Memory Type
Max. Random Read 4K 2500K IOPS
Max. Random Write 4K 360K IOPS
Latency N/A
Special Features
  • AES-XTS 256-bit Hardware-based Encryption Engine
  • End-to-End Data Protection
  • Power loss protection (PLP)
  • RoHS Compliant
  • S.M.A.R.T Support
  • TCG Opal Compliant
  • TRIM Support
Power Consumption (active)
Max. Endurance Rating 1DWPD
MTBF 2,500,000 Hours
Max. Operating Vibration 20 Geak (20~2,000Hz, Sweep sine)
Max. Non-operating Vibration
Max. Operating Shock 1,500G (with a half sine waveform of 0.5ms duration)
Max. Non-operating Shock
Connectivity 1 x U.2
OS Support
  • Ubuntu 20.04
  • Windows Server 2016 (64-bit)
  • Windows Server 2019 Essentials
  • Windows Server 2019 Standard
Bracket N/A
Dimensions 69.85 x 15 x 100.2 mm (WxHxD)
Weight 190 g
