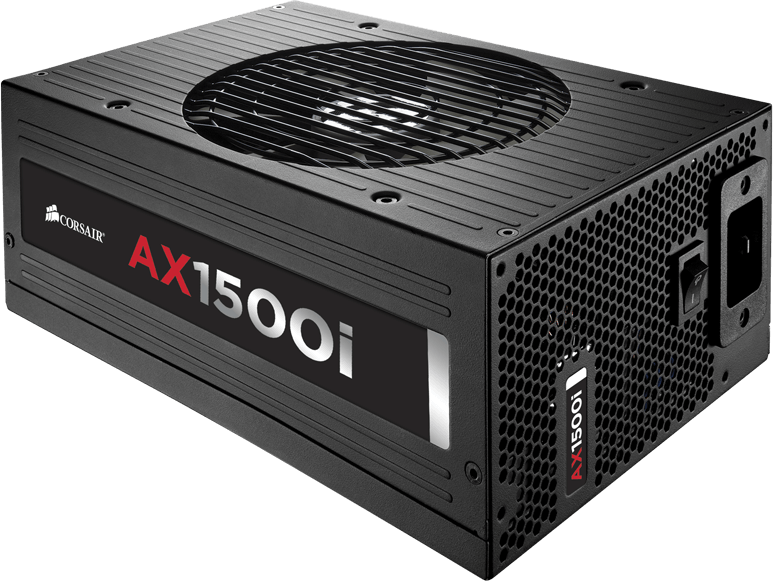

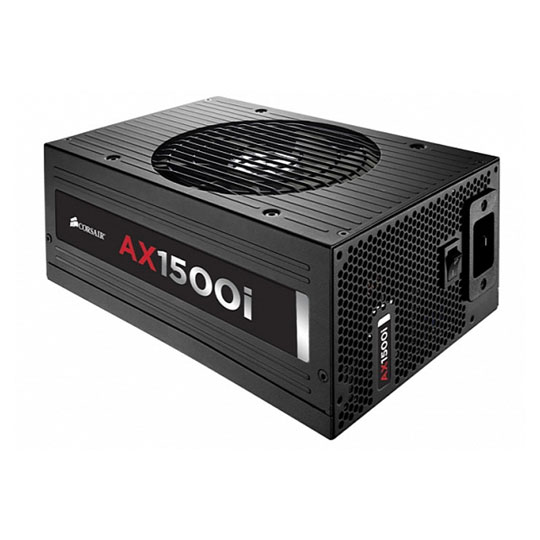

Corsair AX1500i 1500W Modular Power Supply

Thumbnail 1 : Corsair AX1500i 1500W Modular Power Supply Thumbnail 2 : Corsair AX1500i 1500W Modular Power Supply Thumbnail 3 : Corsair AX1500i 1500W Modular Power Supply Thumbnail 4 : Corsair AX1500i 1500W Modular Power Supply

1500W Corsair AX1500i, Full Modular, 80 PLUS Titanium, SLI/CrossFire, Single Rail, 125A, 140mm Fan, ATX PSU

Corsair
Scan code: LN57033 Manufacturer code: CP-9020057-UK Request call
£419.99Item due on 25 June 2018
Pre Order
Pre order
Pay on Scan Finance with a 10% deposit from just £10.49 / month (APR 15.9%)
From £20.16 / month (APR 14.9%)
Monthly Payment: £72.88
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £419.99
Total inc. interest: £437.28
Monthly Payment: £37.71
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £419.99
Total inc. interest: £452.44
Monthly Payment: £26.00
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £419.99
Total inc. interest: £467.94
Monthly Payment: £20.16
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £419.99
Total inc. interest: £483.80
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
3xs Approved High End
Delivery options £11.50 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More

AX1200i - Corsair Power Supply - Fully Modular ATX PSU

Corsair AX1200i Power Supply 80PLUS - Titanium

Corsair AXi 1500W Power Supply

If you're building an ultra high-end performance system or pushing for extreme overclocks, and 1200W isn't enough. The AX1500i delivers 1500W of clean, stable power on 15 Amp circuits of 115V or higher. The 80PLUS Titanium efficiency rating gives you almost perfect efficiency like no other PSU and Zero RPM Fan Mode mean that at low to medium loads, the fan doesn’t spin at all. And when you do push the AXi hard, the thermally controlled fan spins only as fast as it needs to. Even when the fan isn't running the AX1500i has specially selected components to reduce electronic noise for a near silent PSU.

View other AXi power outputs:
AX860i - AX1200i

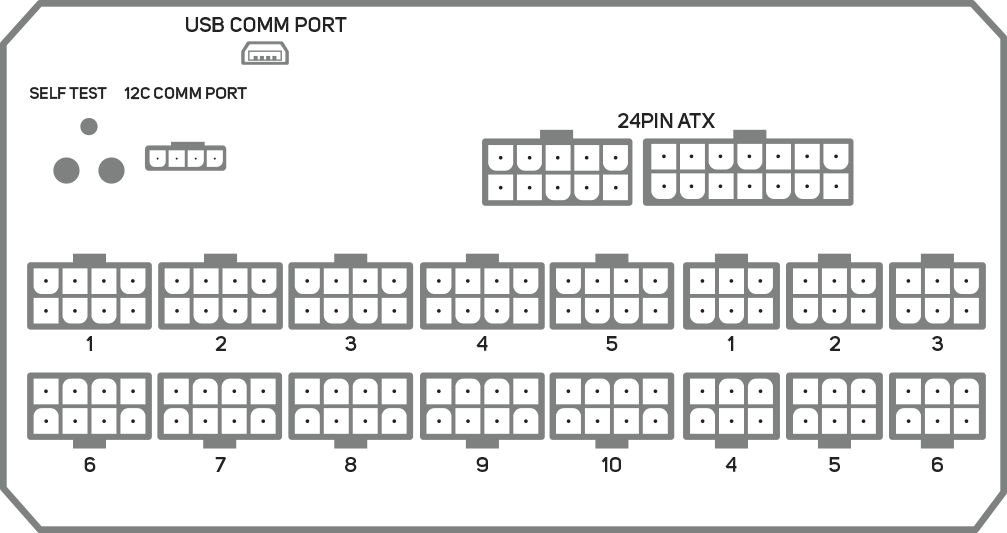

Fully Modular Connectivity

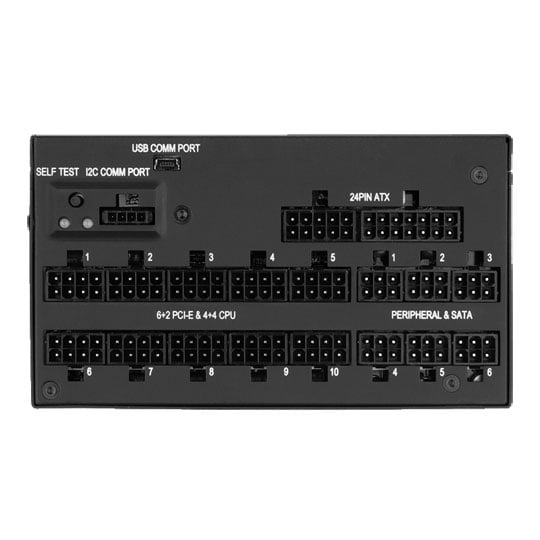

Connections

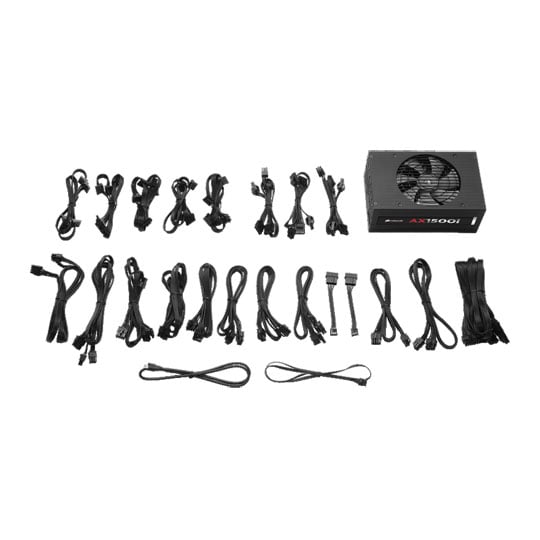

AXi Fully Modular Cable Design

Connect the AX1500i to a motherboard USB header with the included cable, and you can use Corsair Link to monitor power input, power output, efficiency, and internal temperature in real time. You can customize fan speed response, and set up your AX1500i to operate as a single-rail power supply, or with multiple virtual rails with customizable OCP points. AX1500i is fully modular, which means that there are no permanently attached cables. This greatly simplifies installation and allows you to use only the cables you need, for a neater, cleaner build. This can also improve performance: fewer cables in your system can reduce airflow obstruction.

AX1200i Efficiency & Noise Graphs

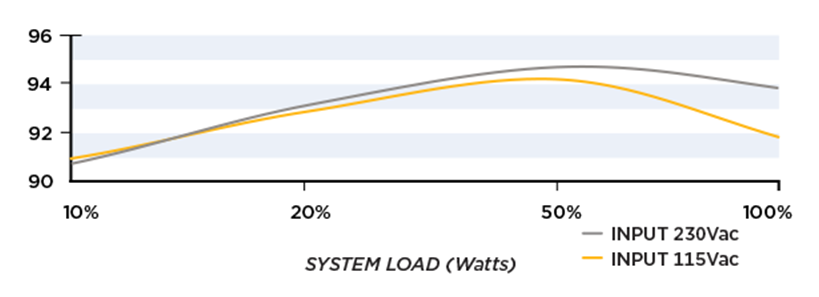

AX1200i EFFICIENCY

Efficiency Graph

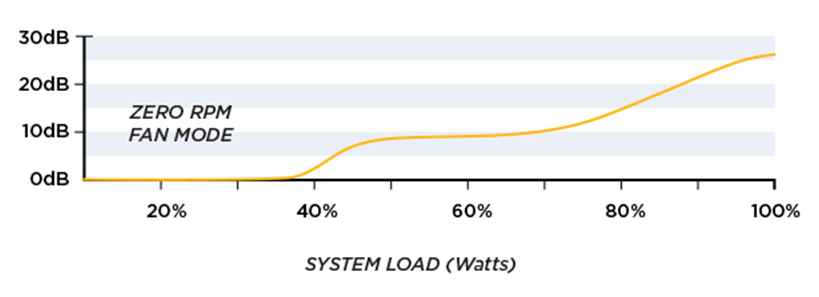

AX1200i FAN NOISE

Noise Graph

Corsair AX1200i Output Power Chart

Corsair AX1200i Digital ATX Power Supply
AC Input Rating 100V – 240V • 15A – 8A • 50Hz – 60Hz
DC Ouput +3.3V +5V +12V -12V +5Vsb
Max Load 30A 30A 125A 0.8A 3.5A
Maximum Combined Wattage 180W 1500W 9.6W 17.5W
Total Power: 1500W @ 115V – 240V / 1300W @ 100V

Corsair AX1200i Key Features

80PLUS - Titanium

80 PLUS Titanium CertifiedTitanium certification ensures high efficiency for less excess heat & lower operating costs.

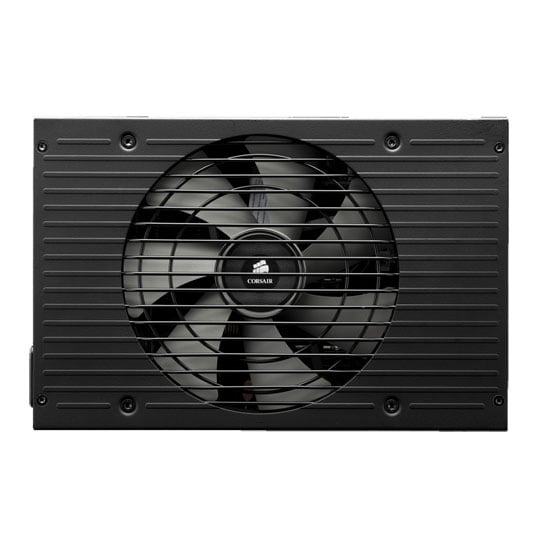

Zero Fan Mode

Zero RPM Fan ModeFan doesn’t turn on until it’s needed, so you’ll enjoy virtually silent operation at low and medium loads.

Specifications
Size ATX
Edition AX1500i
Wattage 1500 W
80 PLUS Certification 80 PLUS Titanium
Max. Efficiency 94 %
Cooling Fan
Fans 1 x 140mm
Internal +12V Rails Single Rail
Rail 1 +12V 125 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 125 A
Modular Yes
Modularity Full Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 2 x 4+4-pin CPU +12V (EPS)
  • 12 x 4-pin Molex
  • 10 x 6+2-pin PCIe
  • 2 x FDD Power
  • 20 x SATA
Dimensions 150 x 86 x 225 mm (WxHxD)
Package Type Retail
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
120 months
Type:
Return to base
RTB Period:
120 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
Customers also bought
TekSpek Guides
Power Supplies
Power Supplies
Date Issued: 25th Oct 2017

Power-supply units, or PSUs, are an integral part of any computer build. Often overlooked, it is the component that is likely to last the longest, and it can be moved between systems when you upgrade to the latest and greatest in the future.

Read More

Reviews
1500W Corsair AX1500i, Full Modular, 80 PLUS Titanium, SLI/CrossFire, Single Rail, 125A, 140mm Fan, ATX PSU is rated 4.7 out of 5 by 3.
Rated 4 out of 5 by from Excellent, but a real shame about the cables! 5-7 years ago premium PSUs came with good quality cables as standard (remember the Enermax Galaxy?). The individual cables were properly colour coded, used large numbers of small diameter conductors and thin high grade insulation to ensure high flexibility and were properly protected with nylon or textile braid. Then the manufacturers started to use all black cables with thick, cheap insulation leading to very poor flexibility and, as a final insult, eventually joined them all together to form a ribbon cable! I have been purchasing Corsair PSUs since they first appeared on the market place and have used them in over 100 high-end PC builds. However, their standard cables have become increasingly cheap looking, bulky and inflexible to the point where clients, family and friends always insist on aftermarket replacements for their builds. This would be more bearable if their prices were still keen, but the cost of a 1000W PSU has almost doubled in the past 5 years without any major improvements in the quality of other components (I am an Electronics Engineer by trade and I am not impressed by the marketing hype which now permeates this market). I used to run AX1200is in both my main water-cooled PCs, but had to replace the first one when I upgraded to a triple Titan set-up as the 12V rail(s) became unstable past 1088W (Output). I had an almost identical problem when I upgraded to two high end AMD GCs in the other PC when I reached 1104W. Thankfully, the previously purchased Corsair premium AXi cable sets also fitted the 1500AXis. Unfortunately, I needed 2 cable sets per PSU as they lacked sufficient peripheral 4 pin molex leads. Ironically, the manufacturer’s ‘push’ to get enthusiasts to buy better quality aftermarket cables and their availability allowed me to solve this issue quickly and cleanly without having to build my own custom cables. However, a few spare interchangeable (for SATA) 4 pin Molex cables should really be provided as standard given the likely use for any PSU greater than 1000W, especially as many high end systems will be fitted with banks of HD carriers which often use peripheral connectors for power (not forgetting Water-pumps, Fan controllers, RGB LED Controllers, CCL Inverters, Flow Rate Displays, Sound Cards, etc). In fact, I only use one SATA PSU connection (Blu-ray drive) in each of my 6 household PCs, despite them all having 6 -15 HDs. In summary, I would thoroughly recommend this PSU to the serious enthusiasts, but you may need to budget for 2 sets of premium aftermarket cables.
Date published: 2016-01-27
Rated 5 out of 5 by from Fantastic in every way! Picked up this power supply by corsair to replace my XA1000 which lasted me years, and is still kicking, thanks for the recommendation from Scan. Just upgraded my pc recently with an sli config. Great out of the box, fans have only kicked in once on instal. I would recommend this above all others if your looking for something that keeps everything under control when running multi cards and xtreme cpu's - And this can run 4 way sli under no strain. If you are building a super pc, don't skimp on the power brick. I highly recommend this model! Easy 5 Stars!
Date published: 2014-12-23
Rated 5 out of 5 by from Brilliant Highest quality product and stands up to what is advertised, though due to its safety features I suppose it would not allow you to connect a 370W device to one PCI-E line - you need to connect by separate cables. Though I have an older PSU from other producer that allows connecting 400W with one cable and 2 PCI-E connectors (2x6). So literally you would not be able to connect 5 powerful PCI-E graphics cards as it advertises. Though does not high up when pulling 1530W from the wall 24/7. Overall - GREAT PRODUCT, though PRICEY.
Date published: 2014-06-23
