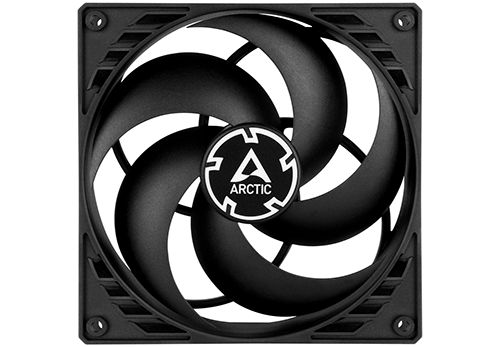

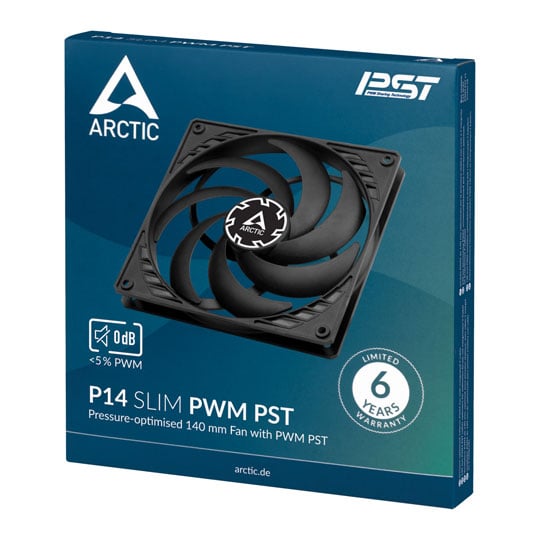

Arctic P14 SLIM Static Pressure 140mm PWM PST Fan

140mm Arctic P14 SLIM PWM PST, 7 Blade, Static Pressure Fan, 1800rpm, 52CFM, Fluid Dynamic Bearing, Black, 4-Pin

Thumbnail 1 : Arctic P14 SLIM Static Pressure 140mm PWM PST Fan Thumbnail 2 : Arctic P14 SLIM Static Pressure 140mm PWM PST Fan Thumbnail 3 : Arctic P14 SLIM Static Pressure 140mm PWM PST Fan Thumbnail 4 : Arctic P14 SLIM Static Pressure 140mm PWM PST Fan
Scan code: LN124860 Manufacturer code: ACFAN00268A
Order by 8:30 PM today and get it tomorrow
£7.99
Get it Tomorrow, 06 JulIn stock
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 6th Jul to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

P14 140mm PWM PST Fan from Arctic

PWM PST

Pressure-optimised 140 mm Fan with PWM PSTDuring the development of the new P14 PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 PWM PST is particularly suitable for use on heatsinks and radiators.

The Best Yet

4K Recording

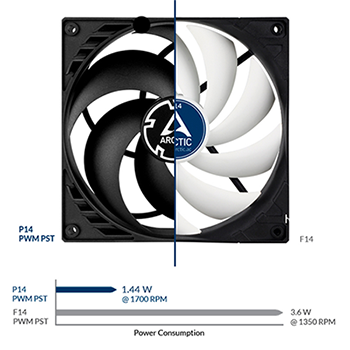

MORE EFFICIENT TECHNOLOGYThe motor is powered by a PWM IC of the newest generation, which allows the new P14 PWM PST to run much more efficiently than its predecessors. This saves energy without compromising the performance.

Smoothly and Silently

4K Recording

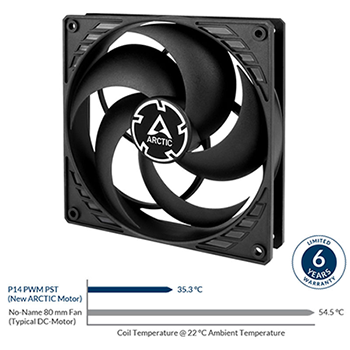

MAXIMUM QUIETNESS, MINIMUM VIBRATIONEven at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.

Optimal Control

4K Recording

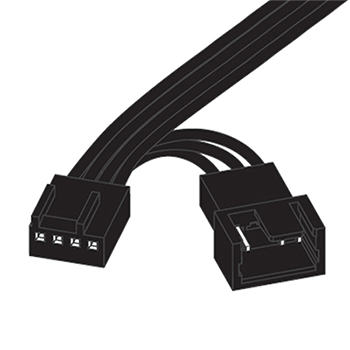

200 TO 1700 RPM REGULATED VIA PWM PSTWith a wide range of regulation and the PWM Sharing Technology (PST), the P14 PWM PST fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.

Built to Last

4K Recording

HIGH QUALITY BEARINGThanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

Specifications
Pack Information
Edition P14 SLIM PWM PST
Pack Type Single (1) Fan Standalone Pack
Includes 1 x 140mm Fan/s
Individual Fan Specifications
Fan Diameter 140mm
Fan Depth
Fan Speed 150 - 1800 rpm
Fan Blades 7
PWM Yes
Fan Specialization Static Pressure
Airflow 52 CFM
Air Pressure 1.55 mm H²O
Sound Level (dBA)
Sound Level (Sone) 0.3 Sone
Motor Type
Bearing Type Fluid Dynamic Bearing
Manual Speed Controller No
Material Plastic
Fan Colour Black
LED No
LED Colour
MTBF
Fan Fixing Screw Fixing
Cable length
Connectors 1 x 4-pin PWM
Additional Information
Scan Code LN124860
Model Number ACFAN00268A
GTIN 4895213703871
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
72 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
ARCTIC GmbH
